D32P2GH, 1.5Hp, 1725 RPM, 575V, 3PH, 60Hz, ODP, Frame 56H, P063FSE1771015B

D32P2GH, 1.5Hp, 1725 RPM, 575V, 3PH, 60Hz, ODP, Frame 56H, P063FSE1771015B

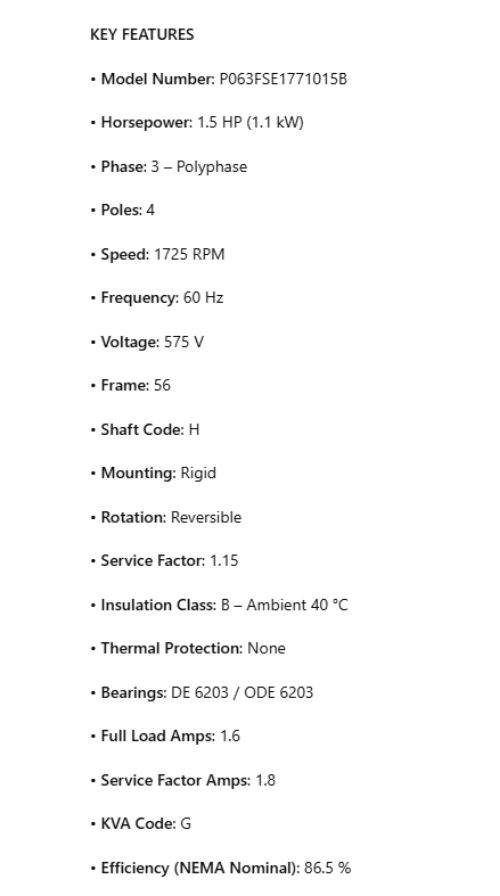

KEY FEATURES

• Model Number: P063FSE1771015B

• Horsepower: 1.5 HP (1.1 kW)

• Phase: 3 – Polyphase

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 575 V

• Frame: 56

• Shaft Code: H

• Mounting: Rigid

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Thermal Protection: None

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 1.6

• Service Factor Amps: 1.8

• KVA Code: G

• Efficiency (NEMA Nominal): 86.5 %
