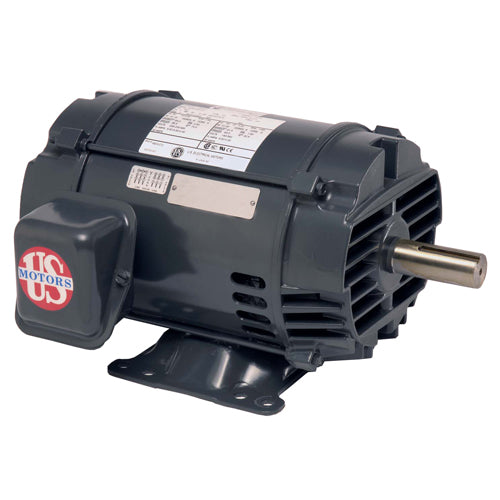

D1P2G, 1Hp, 1760 RPM, 575V, 3PH, 60Hz, ODP, Frame 143T, FC88

D1P2G, 1Hp, 1760 RPM, 575V, 3PH, 60Hz, ODP, Frame 143T, FC88

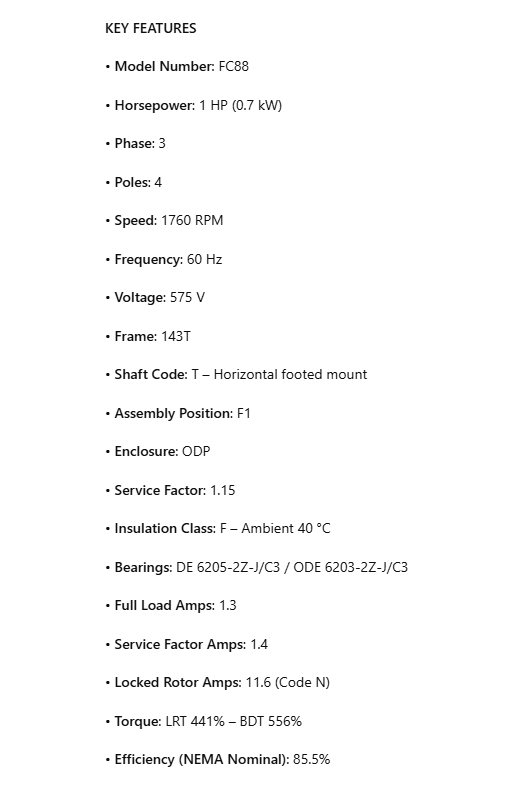

KEY FEATURES

• Model Number: FC88

• Horsepower: 1 HP (0.7 kW)

• Phase: 3

• Poles: 4

• Speed: 1760 RPM

• Frequency: 60 Hz

• Voltage: 575 V

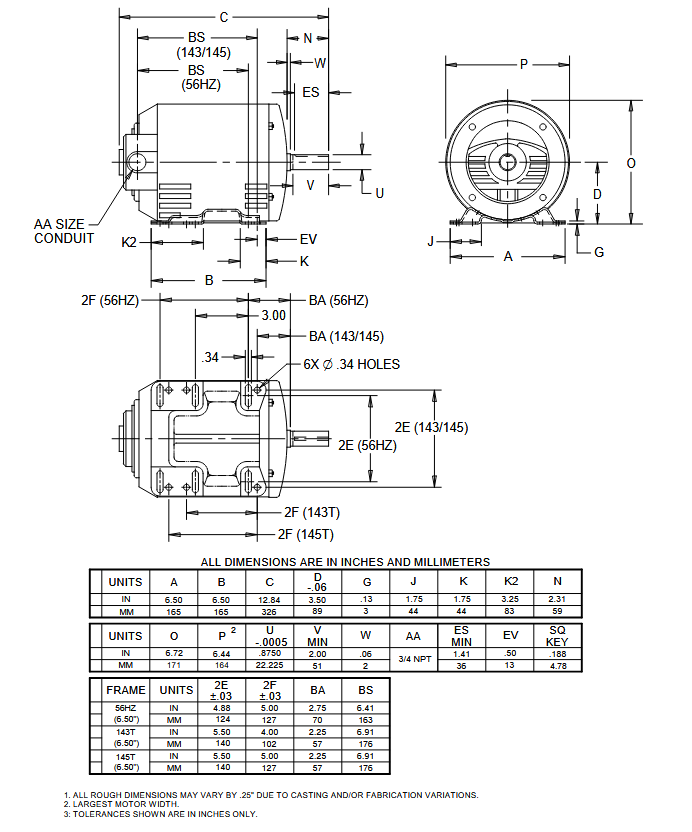

• Frame: 143T

• Shaft Code: T – Horizontal footed mount

• Assembly Position: F1

• Enclosure: ODP

• Service Factor: 1.15

• Insulation Class: F – Ambient 40 °C

• Bearings: DE 6205-2Z-J/C3 / ODE 6203-2Z-J/C3

• Full Load Amps: 1.3

• Service Factor Amps: 1.4

• Locked Rotor Amps: 11.6 (Code N)

• Torque: LRT 441% – BDT 556%

• Efficiency (NEMA Nominal): 85.5%
