D1P2D, 1Hp, 1760 RPM, 208-230/460V, 3PH, 60-50Hz, ODP, Frame 143T, FC89

D1P2D, 1Hp, 1760 RPM, 208-230/460V, 3PH, 60-50Hz, ODP, Frame 143T, FC89

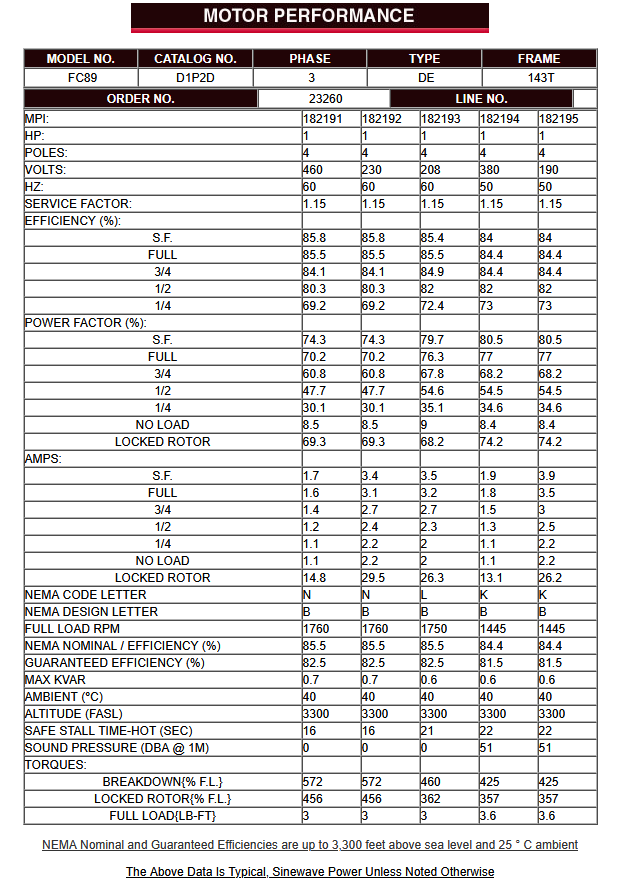

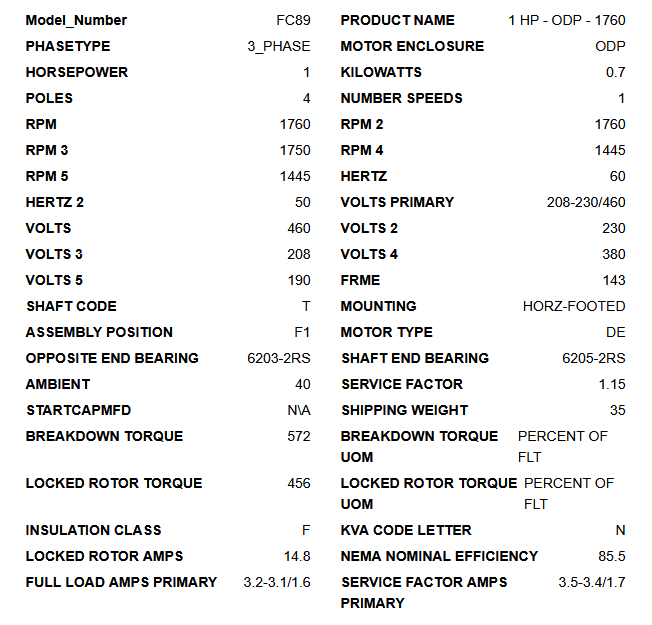

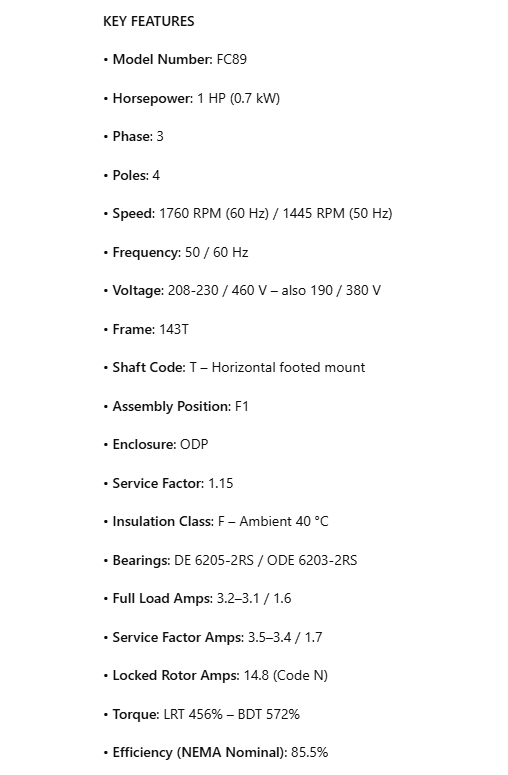

KEY FEATURES

• Model Number: FC89

• Horsepower: 1 HP (0.7 kW)

• Phase: 3

• Poles: 4

• Speed: 1760 RPM (60 Hz) / 1445 RPM (50 Hz)

• Frequency: 50 / 60 Hz

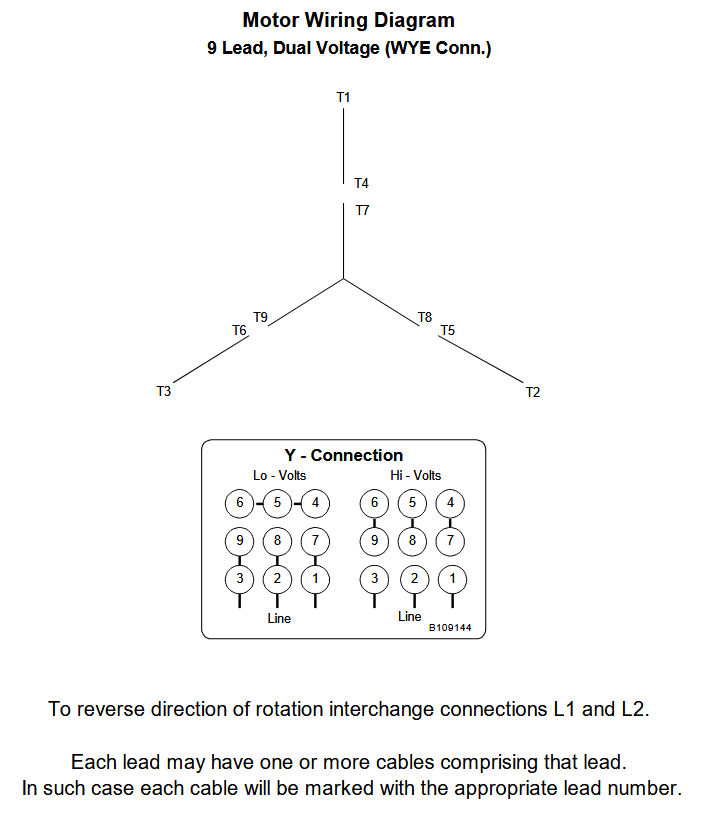

• Voltage: 208-230 / 460 V – also 190 / 380 V

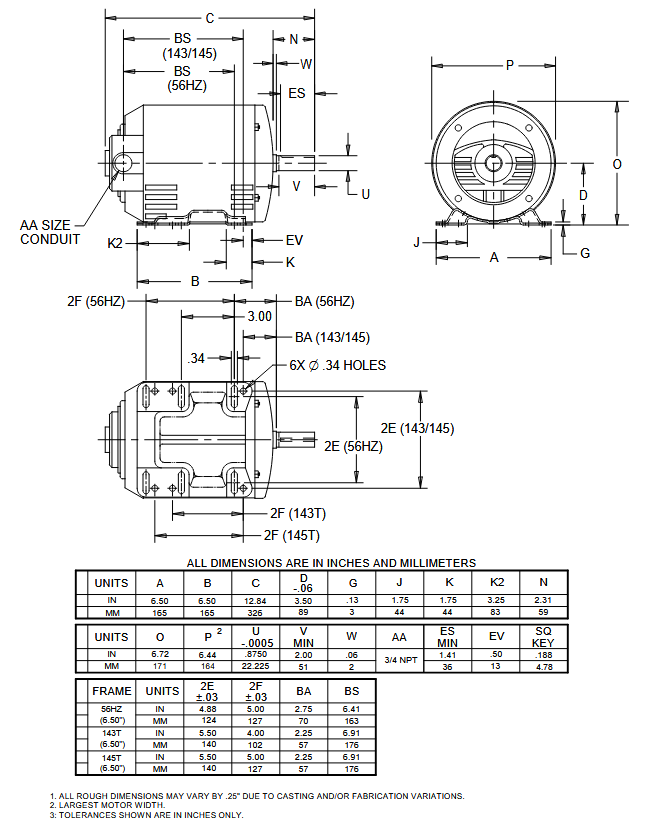

• Frame: 143T

• Shaft Code: T – Horizontal footed mount

• Assembly Position: F1

• Enclosure: ODP

• Service Factor: 1.15

• Insulation Class: F – Ambient 40 °C

• Bearings: DE 6205-2RS / ODE 6203-2RS

• Full Load Amps: 3.2–3.1 / 1.6

• Service Factor Amps: 3.5–3.4 / 1.7

• Locked Rotor Amps: 14.8 (Code N)

• Torque: LRT 456% – BDT 572%

• Efficiency (NEMA Nominal): 85.5%
