D1P2AH, 1Hp, 1725 RPM, 208-230/460V, 3PH, 60Hz, ODP, Frame 56H, P063AGU1308015B

D1P2AH, 1Hp, 1725 RPM, 208-230/460V, 3PH, 60Hz, ODP, Frame 56H, P063AGU1308015B

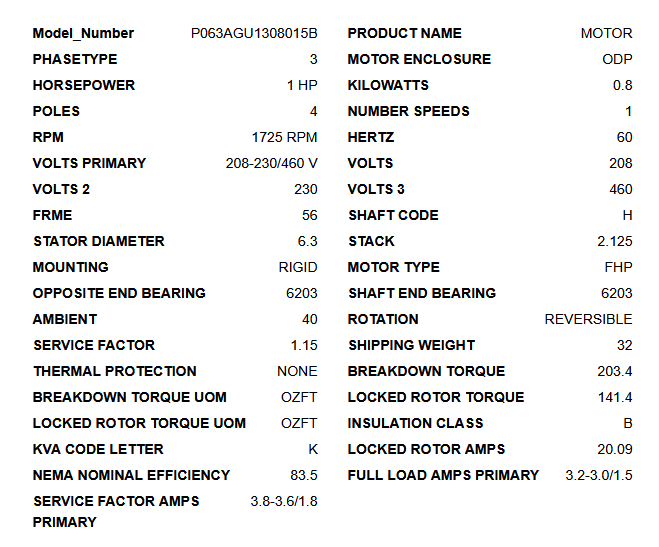

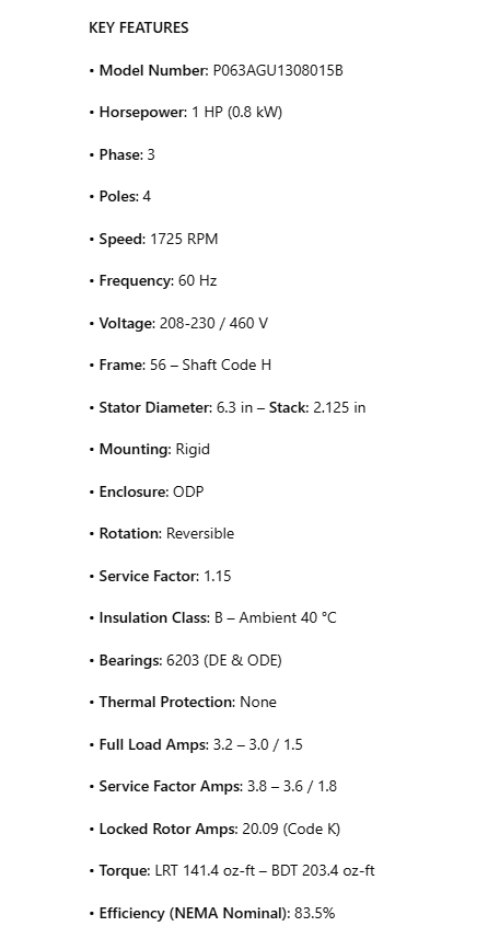

KEY FEATURES

• Model Number: P063AGU1308015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 3

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 208-230 / 460 V

• Frame: 56 – Shaft Code H

• Stator Diameter: 6.3 in – Stack: 2.125 in

• Mounting: Rigid

• Enclosure: ODP

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Bearings: 6203 (DE & ODE)

• Thermal Protection: None

• Full Load Amps: 3.2 – 3.0 / 1.5

• Service Factor Amps: 3.8 – 3.6 / 1.8

• Locked Rotor Amps: 20.09 (Code K)

• Torque: LRT 141.4 oz-ft – BDT 203.4 oz-ft

• Efficiency (NEMA Nominal): 83.5%
