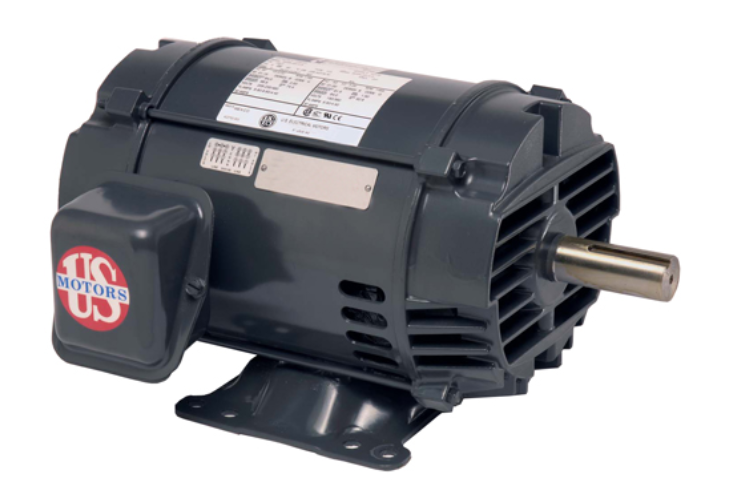

D13P2GH, 1/3Hp, 1725 RPM, 575V, 3PH, 60Hz, ODP, Fr. 56H, P063FPC1725015B

D13P2GH, 1/3Hp, 1725 RPM, 575V, 3PH, 60Hz, ODP, Fr. 56H, P063FPC1725015B

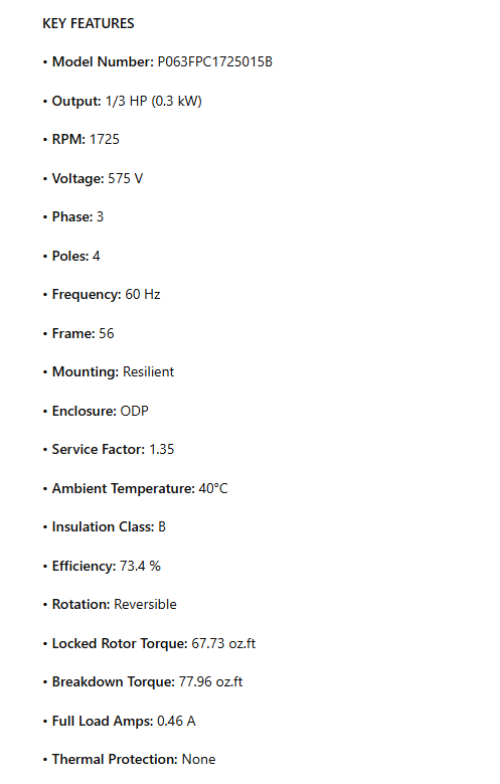

KEY FEATURES

• Model Number: P063FPC1725015B

• Output: 1/3 HP (0.3 kW)

• RPM: 1725

• Voltage: 575 V

• Phase: 3

• Poles: 4

• Frequency: 60 Hz

• Frame: 56

• Mounting: Resilient

• Enclosure: ODP

• Service Factor: 1.35

• Ambient Temperature: 40°C

• Insulation Class: B

• Efficiency: 73.4 %

• Rotation: Reversible

• Locked Rotor Torque: 67.73 oz.ft

• Breakdown Torque: 77.96 oz.ft

• Full Load Amps: 0.46 A

• Thermal Protection: None
