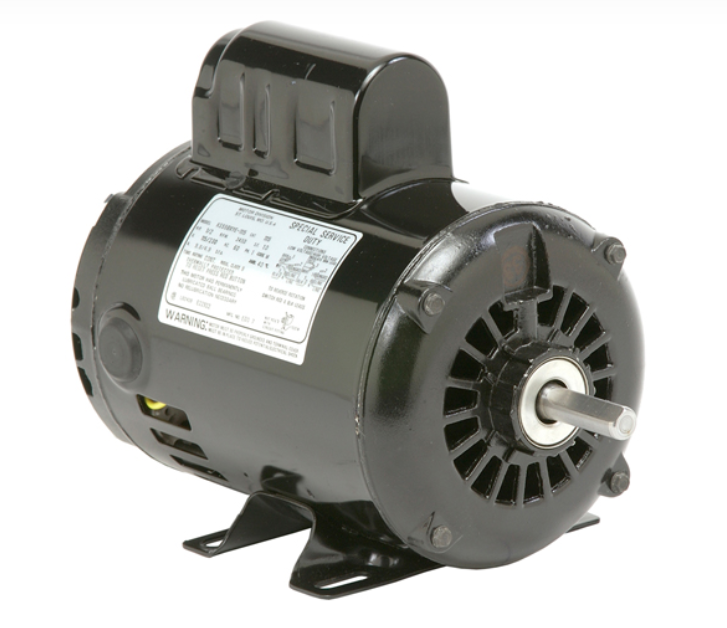

D13CP2P4, 1/3Hp, 1725 RPM, 115/230V, 1PH, 60Hz, ODP, Fr. 48, General Purpose Capacitor Start RIGID BASE NO OVERLOAD 1.35SF

D13CP2P4, 1/3Hp, 1725 RPM, 115/230V, 1PH, 60Hz, ODP, Fr. 48, General Purpose Capacitor Start RIGID BASE NO OVERLOAD 1.35SF

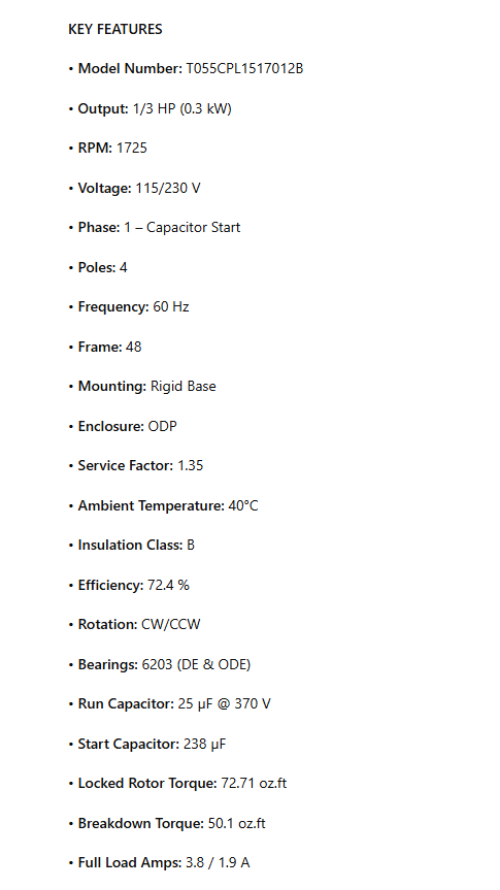

KEY FEATURES

• Model Number: T055CPL1517012B

• Output: 1/3 HP (0.3 kW)

• RPM: 1725

• Voltage: 115/230 V

• Phase: 1 – Capacitor Start

• Poles: 4

• Frequency: 60 Hz

• Frame: 48

• Mounting: Rigid Base

• Enclosure: ODP

• Service Factor: 1.35

• Ambient Temperature: 40°C

• Insulation Class: B

• Efficiency: 72.4 %

• Rotation: CW/CCW

• Bearings: 6203 (DE & ODE)

• Run Capacitor: 25 µF @ 370 V

• Start Capacitor: 238 µF

• Locked Rotor Torque: 72.71 oz.ft

• Breakdown Torque: 50.1 oz.ft

• Full Load Amps: 3.8 / 1.9 A
