9977, (KBVF-14) Hybrid AC Drive 1Hp 4A 115V 1PH Input 230V 3PH output IP20 Chassis

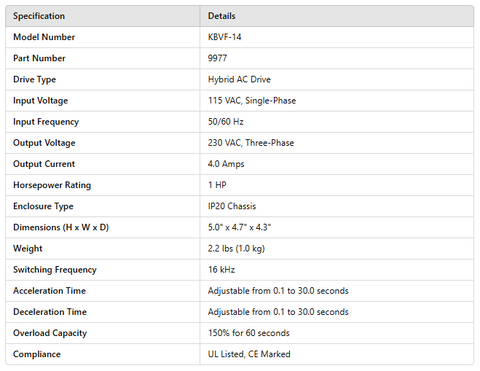

Specification	Details
Model Number	KBVF-14
Part Number	9977
Drive Type	Hybrid AC Drive
Input Voltage	115 VAC, Single-Phase
Input Frequency	50/60 Hz
Output Voltage	230 VAC, Three-Phase
Output Current	4.0 Amps
Horsepower Rating	1 HP
Enclosure Type	IP20 Chassis
Dimensions (H x W x D)	5.0" x 4.7" x 4.3"
Weight	2.2 lbs (1.0 kg)
Switching Frequency	16 kHz
Acceleration Time	Adjustable from 0.1 to 30.0 seconds
Deceleration Time	Adjustable from 0.1 to 30.0 seconds
Overload Capacity	150% for 60 seconds
Compliance	UL Listed, CE Marked



The KBVF Series of Adjustable Frequency Drives are inverter models rated for 1/10 to 5 horsepower motors.
These chassis / IP20 drives are ideal for OEM applications where digital programming and displays are not
required. Hybrid drives are a digital drive with an analog interface.
Options: Drive-Link™ Programming Kit, SIVFR Signal Isolator and Run Fault Relay (Standard on 460 VAC
models) (P/N 9597), DIVF Modbus Serial Communication Module (P/N 9568), Class A or B (CE) RFI Filter, DBVF
Dynamic Brake Module (P/N 9598), Multi-Speed Board, KBRK Remote Digital Keypad (OEM applications only),
and IOVF Input/Output Multi-Function Module.
