9924, (KBCC-225R) SCR DC Drive 3Hp 16A 208/230VAC 1PH Input 180VDC Output Relay Reversing Chassis

E-Motor Nations

$687.45

9924, (KBCC-225R) SCR DC Drive 3Hp 16A 208/230VAC 1PH Input 180VDC Output Relay Reversing Chassis

Specification	Details
Input Voltage	208/230 VAC
Motor Compatibility	180 VDC Permanent Magnet (PM) Motors
Horsepower Range	1/100 – 3.0 HP
Functionality	- Anti-plug "instant" reverse - Solid state dynamic braking - Rapid cycling
Integrated Features	Includes standard KBCC features and additional KB APRM capabilities
Switching Method	Armature switching occurs near zero voltage (via KB APRM) to prevent arcing
Construction	Rugged construction with remote 5K speed potentiometer
Key Components	- AC Line fuse - Armature fuse holder - Auxiliary heat sink - Barrier terminal block
Control Functions	Run-Brake, Forward-Brake-Reverse, Run-Stop, Forward-Reverse (instant reverse)
Safety Feature	Auto Inhibit – ensures smooth, safe starts during rapid AC line switching
Plug-In Horsepower Resistor	Required
Dimensions (H x W x D)	9.00" x 6.25" x 4.50"
Line Fuse	Required
Resistor & Armature Fuse	Required

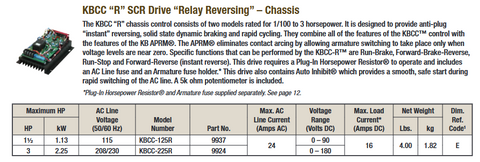

KBCC “R” SCR Drive “Relay Reversing” – Chassis

The KBCC “R” chassis control consists of two models rated for 1/100 to 3 horsepower. It is designed to provide anti-plug
“instant” reversing, solid state dynamic braking and rapid cycling. They combine all of the features of the KBCC™ control with
the features of the KB APRM®. The APRM® eliminates contact arcing by allowing armature switching to take place only when
voltage levels are near zero. Specific functions that can be performed by the KBCC-R™ are Run-Brake, Forward-Brake-Reverse,
Run-Stop and Forward-Reverse (instant reverse). This drive requires a Plug-In Horsepower Resistor® to operate and includes
an AC Line fuse and an Armature fuse holder.* This drive also contains Auto Inhibit® which provides a smooth, safe start during
rapid switching of the AC line. A 5k ohm potentiometer is included.
