9676, (KBVF-23P) Hybrid AC Drive 1/2Hp 2.4A 230V 3PH Input 230V 3PH output IP20 Chassis

E-Motor Nations

$356.65

9676, (KBVF-23P) Hybrid AC Drive 1/2Hp 2.4A 230V 3PH Input 230V 3PH output IP20 Chassis

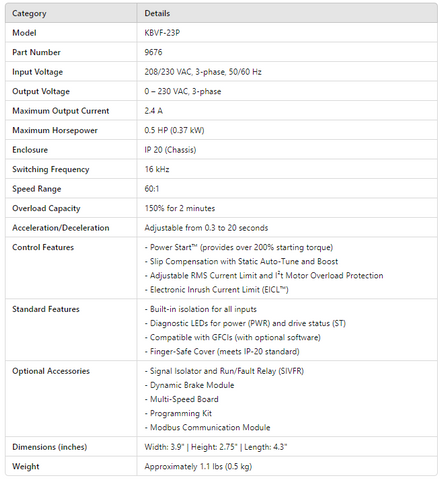

Category	Details
Model	KBVF-23P
Part Number	9676
Input Voltage	208/230 VAC, 3-phase, 50/60 Hz
Output Voltage	0 – 230 VAC, 3-phase
Maximum Output Current	2.4 A
Maximum Horsepower	0.5 HP (0.37 kW)
Enclosure	IP 20 (Chassis)
Switching Frequency	16 kHz
Speed Range	60:1
Overload Capacity	150% for 2 minutes
Acceleration/Deceleration	Adjustable from 0.3 to 20 seconds
Control Features	- Power Start™ (provides over 200% starting torque) - Slip Compensation with Static Auto-Tune and Boost - Adjustable RMS Current Limit and I²t Motor Overload Protection - Electronic Inrush Current Limit (EICL™)
Standard Features	- Built-in isolation for all inputs - Diagnostic LEDs for power (PWR) and drive status (ST) - Compatible with GFCIs (with optional software) - Finger-Safe Cover (meets IP-20 standard)
Optional Accessories	- Signal Isolator and Run/Fault Relay (SIVFR) - Dynamic Brake Module - Multi-Speed Board - Programming Kit - Modbus Communication Module
Dimensions (inches)	Width: 3.9" \| Height: 2.75" \| Length: 4.3"
Weight	Approximately 1.1 lbs (0.5 kg)
