9605, KBAC SIAC-PS (2G) with A /B switch kit (Pkg. A & B only)

E-Motor Nations

$150.02

9605, KBAC SIAC-PS (2G) with A /B switch kit (Pkg. A & B only)

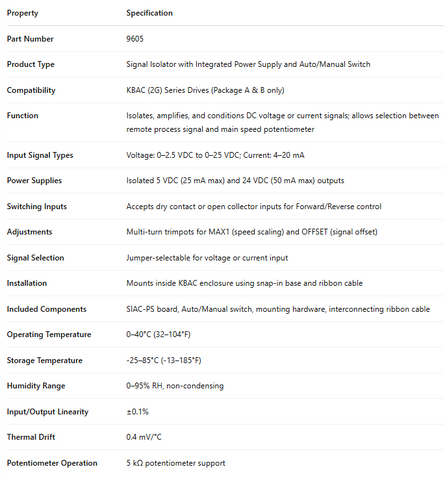

Property	Specification
Part Number	9605
Product Type	Signal Isolator with Integrated Power Supply and Auto/Manual Switch
Compatibility	KBAC (2G) Series Drives (Package A & B only)
Function	Isolates, amplifies, and conditions DC voltage or current signals; allows selection between remote process signal and main speed potentiometer
Input Signal Types	Voltage: 0–2.5 VDC to 0–25 VDC; Current: 4–20 mA
Power Supplies	Isolated 5 VDC (25 mA max) and 24 VDC (50 mA max) outputs
Switching Inputs	Accepts dry contact or open collector inputs for Forward/Reverse control
Adjustments	Multi-turn trimpots for MAX1 (speed scaling) and OFFSET (signal offset)
Signal Selection	Jumper-selectable for voltage or current input
Installation	Mounts inside KBAC enclosure using snap-in base and ribbon cable
Included Components	SIAC-PS board, Auto/Manual switch, mounting hardware, interconnecting ribbon cable
Operating Temperature	0–40°C (32–104°F)
Storage Temperature	-25–85°C (-13–185°F)
Humidity Range	0–95% RH, non-condensing
Input/Output Linearity	±0.1%
Thermal Drift	0.4 mV/°C
Potentiometer Operation	5 kΩ potentiometer support

Our stock of KB Electronic accessories features a range of control periphery products from switch kits and fuse kits to replacement potentiometers and AC line filters. These products provide more functions and better performance to your KB Electronics AC and DC drives.
