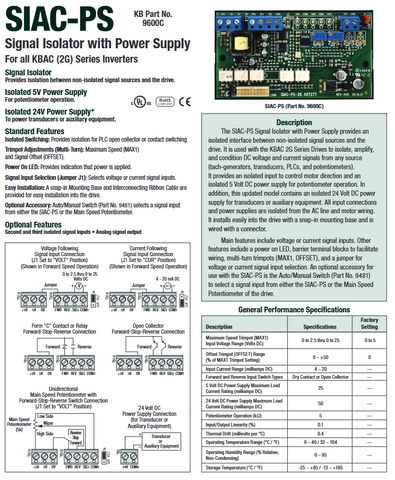

9600, KBAC SIAC-PS (2G) Signal Isolator with P.S. (Pkg. A & B only)

E-Motor Nations

$112.14

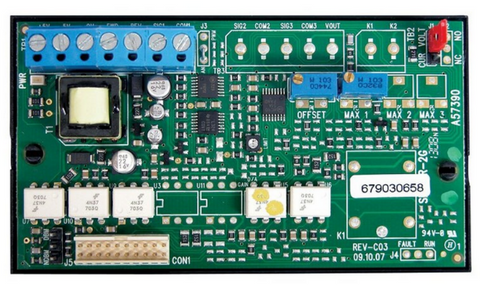

9600, KBAC SIAC-PS (2G) Signal Isolator with P.S. (Pkg. A & B only)

Property	Specification
Part Number	9600
Product Type	Signal Isolator with Integrated Power Supply
Compatibility	KBAC (2G) Series Drives (Pkg. A & B only)
Function	Isolates, amplifies, and conditions DC voltage or current signals from external sources
Input Signal Types	Voltage: 0–2.5 VDC to 0–25 VDC; Current: 4–20 mA
Power Supplies	Isolated 5 VDC (25 mA max) and 24 VDC (50 mA max) outputs
Switching Inputs	Accepts dry contact or open collector inputs for Forward/Reverse control
Adjustments	Multi-turn trimpots for MAX1 (speed scaling) and OFFSET (signal offset)
Signal Selection	Jumper-selectable for voltage or current input
Installation	Mounts inside KBAC enclosure using snap-in base and ribbon cable
Included Components	SIAC-PS board, mounting hardware, interconnecting ribbon cable
Operating Temperature	0–40°C (32–104°F)
Storage Temperature	-25–85°C (-13–185°F)
Humidity Range	0–95% RH, non-condensing
Input/Output Linearity	±0.1%
Thermal Drift	0.4 mV/°C
Potentiometer Operation	5 kΩ potentiometer support
Optional Accessory	Auto/Manual Switch (Part No. 9481) for switching between SIAC-PS and main speed potentiometer

Our stock of KB Electronic accessories features a range of control periphery products from switch kits and fuse kits to replacement potentiometers and AC line filters. These products provide more functions and better performance to your KB Electronics AC and DC drives.
