E-Motor Nations  |  SKU : EMN-019372

9501, (KBBC-44M) Battery DC Drive 1.5Hp-2Hp 40A 36/48VDC Input 36/48VDC Output Chassis

$1,038.86
shipping

Estimation des frais de livraison

Description

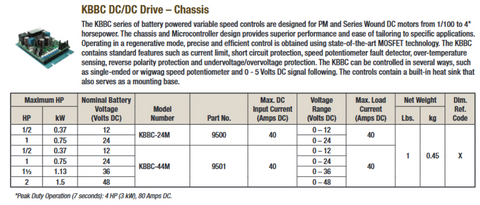

9501, (KBBC-44M) Battery DC Drive 1.5Hp-2Hp 40A

12/24/36/48VDC Input VDC Output 12/24/36/48VDC, Chassis

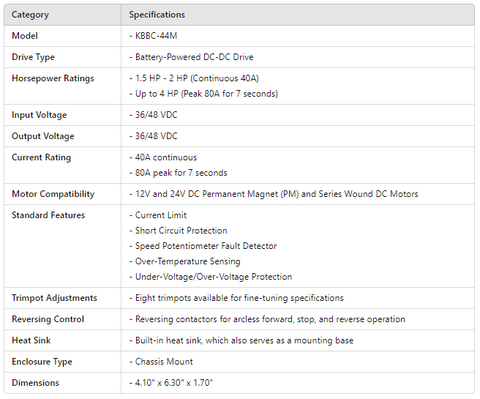

Category Specifications
Model - KBBC-44M
Drive Type - Battery-Powered DC-DC Drive
Horsepower Ratings - 1.5 HP - 2 HP (Continuous 40A)
- Up to 4 HP (Peak 80A for 7 seconds)
Input Voltage - 36/48 VDC
Output Voltage - 36/48 VDC
Current Rating - 40A continuous
- 80A peak for 7 seconds
Motor Compatibility - 12V and 24V DC Permanent Magnet (PM) and Series Wound DC Motors
Standard Features - Current Limit
- Short Circuit Protection
- Speed Potentiometer Fault Detector
- Over-Temperature Sensing
- Under-Voltage/Over-Voltage Protection
Trimpot Adjustments - Eight trimpots available for fine-tuning specifications
Reversing Control - Reversing contactors for arcless forward, stop, and reverse operation
Heat Sink - Built-in heat sink, which also serves as a mounting base
Enclosure Type - Chassis Mount
Dimensions - 4.10" x 6.30" x 1.70"
