E-Motor Nations  |  SKU : EMN-019369

9464, (KBIC-240D) SCR DC Drive 1Hp-2Hp 12A With Heat Sink 0.5Hp-1Hp 6A Without Heat Sink 115/230VAC 1PH Input 90/180VDC Output Chassis

$235.94
shipping

Estimation des frais de livraison

Description

9464, (KBIC-240D) SCR DC Drive 1Hp-2Hp 12A With Heat Sink 0.5Hp-1Hp 6A Without Heat Sink 115/230VAC 1PH Input 90/180VDC Output Chassis

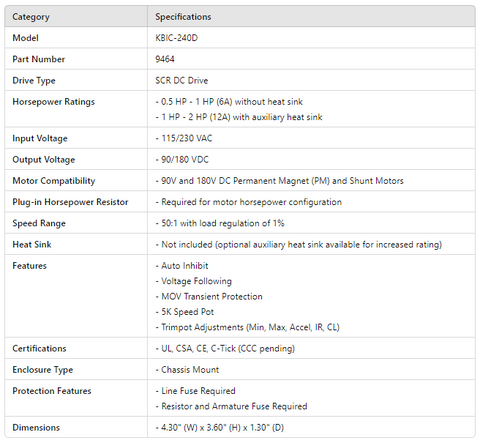

Category Specifications
Model KBIC-240D
Part Number 9464
Drive Type SCR DC Drive
Horsepower Ratings - 0.5 HP - 1 HP (6A) without heat sink
- 1 HP - 2 HP (12A) with auxiliary heat sink
Input Voltage - 115/230 VAC
Output Voltage - 90/180 VDC
Motor Compatibility - 90V and 180V DC Permanent Magnet (PM) and Shunt Motors
Plug-in Horsepower Resistor - Required for motor horsepower configuration
Speed Range - 50:1 with load regulation of 1%
Heat Sink - Not included (optional auxiliary heat sink available for increased rating)
Features - Auto Inhibit
- Voltage Following
- MOV Transient Protection
- 5K Speed Pot
- Trimpot Adjustments (Min, Max, Accel, IR, CL)
Certifications - UL, CSA, CE, C-Tick (CCC pending)
Enclosure Type - Chassis Mount
Protection Features - Line Fuse Required
- Resistor and Armature Fuse Required
Dimensions - 4.30" (W) x 3.60" (H) x 1.30" (D)
