9433, (KBIC-125) SCR DC Drive 1.5Hp 16A With Heat Sink 0.75Hp 8A Without Heat Sink 115VAC 1PH Input 90VDC Output Chassis

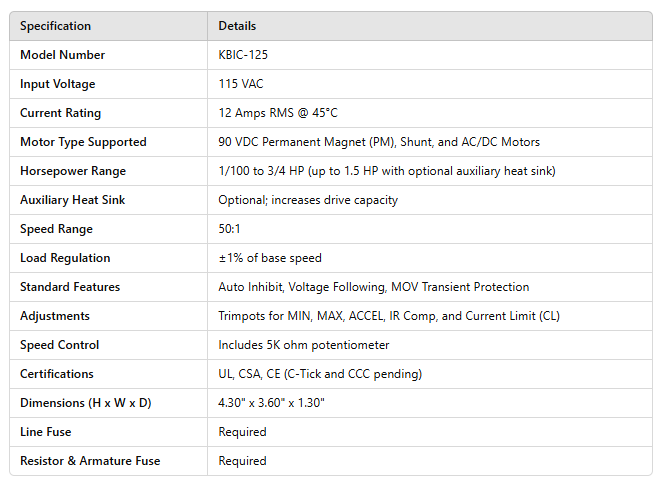

Specification	Details
Model Number	KBIC-125
Input Voltage	115 VAC
Current Rating	12 Amps RMS @ 45°C
Motor Type Supported	90 VDC Permanent Magnet (PM), Shunt, and AC/DC Motors
Horsepower Range	1/100 to 3/4 HP (up to 1.5 HP with optional auxiliary heat sink)
Auxiliary Heat Sink	Optional; increases drive capacity
Speed Range	50:1
Load Regulation	±1% of base speed
Standard Features	Auto Inhibit, Voltage Following, MOV Transient Protection
Adjustments	Trimpots for MIN, MAX, ACCEL, IR Comp, and Current Limit (CL)
Speed Control	Includes 5K ohm potentiometer
Certifications	UL, CSA, CE (C-Tick and CCC pending)
Dimensions (H x W x D)	4.30" x 3.60" x 1.30"
Line Fuse	Required
Resistor & Armature Fuse	Required

The KBIC Series of DC Drives consist of six models rated for 1/100 to 3 horsepower motors. All models can be used on a wide
range of motor horsepower by inserting a Plug-In Horsepower Resistor®*, which is required to operate the drive. Speed range
is 50:1 with load regulation of 1% of base speed. These chassis drives include MOV transient protection, trimpot adjustments for
MIN, MAX, ACCEL, IR, CL, and a 5k ohm potentiometer. This drive also contains Auto Inhibit® which provides a smooth, safe start
during rapid switching of the AC line.

Options: Auxiliary Heat Sink (P/N 9861), Barrier Terminal Kit (P/N 9863) Barrier Terminal Board (P/N 9884), SI-5 Signal Isolator
(P/N 9443), Combination Fuse kit (P/N 9849). AC line and Armature fuse supplied separately.
