E-Motor Nations  |  SKU : EMN-019347

9381, (KBWM-240) SCR DC Drive 3/4Hp 3.5A 230VAC 1PH Input 180VDC Output Non-Reversing NEMA 1

$263.62
shipping

Estimation des frais de livraison

Description

9381, (KBWM-240) SCR DC Drive 3/4Hp 3.5A 230VAC 1PH Input 180VDC Output Non-Reversing NEMA 1

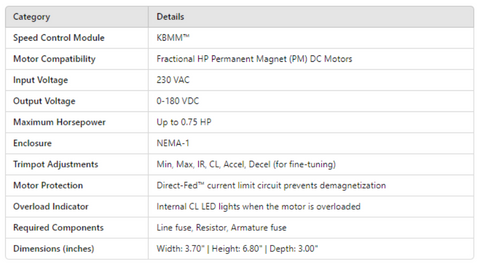

Category Details
Speed Control Module KBMM™
Motor Compatibility Fractional HP Permanent Magnet (PM) DC Motors
Input Voltage 230 VAC
Output Voltage 0-180 VDC
Maximum Horsepower Up to 0.75 HP
Enclosure NEMA-1
Trimpot Adjustments Min, Max, IR, CL, Accel, Decel (for fine-tuning)
Motor Protection Direct-Fed™ current limit circuit prevents demagnetization
Overload Indicator Internal CL LED lights when the motor is overloaded
Required Components Line fuse, Resistor, Armature fuse
Dimensions (inches) Width: 3.70" | Height: 6.80" | Depth: 3.00"
