1 5
E-Motor Nations  |  SKU : EMN-019345

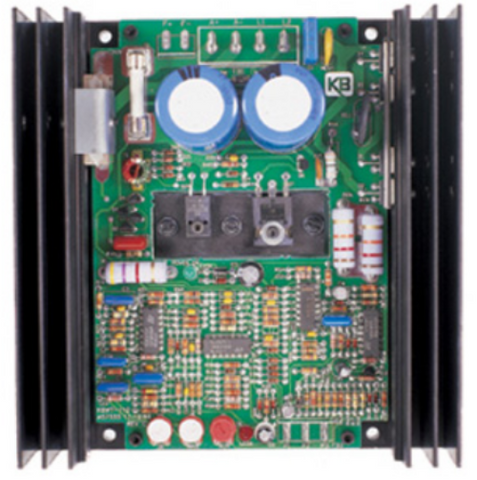

8614, (KBWT-16) PWM DC Drive 3/4Hp 6A 115VAC 1PH Input 130VDC Output Non-Reversing Chassis

$313.13
shipping

Estimation des frais de livraison

Description

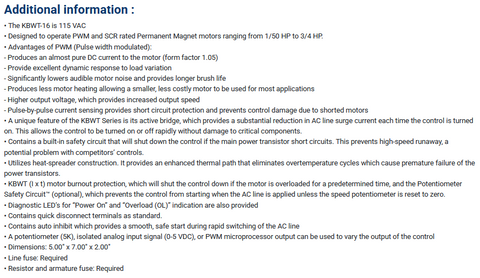

8614, (KBWT-16) PWM DC Drive 3/4Hp 6A 115VAC 1PH Input 130VDC Output Non-Reversing Chassis

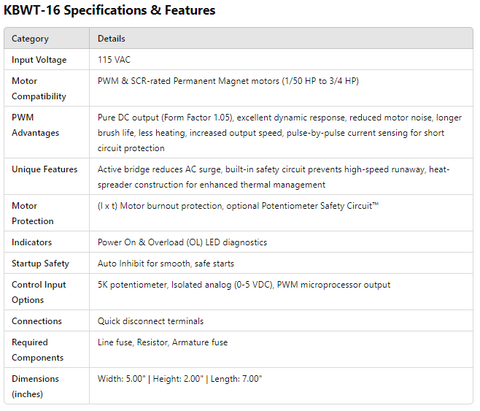

Category Details
Input Voltage 115 VAC
Motor Compatibility PWM & SCR-rated Permanent Magnet motors (1/50 HP to 3/4 HP)
PWM Advantages
Pure DC output (Form Factor 1.05), excellent dynamic response, reduced motor noise, longer brush life, less heating, increased output speed, pulse-by-pulse current sensing for short circuit protection
Unique Features
Active bridge reduces AC surge, built-in safety circuit prevents high-speed runaway, heat-spreader construction for enhanced thermal management
Motor Protection (I x t) Motor burnout protection, optional Potentiometer Safety Circuit™
Indicators Power On & Overload (OL) LED diagnostics
Startup Safety Auto Inhibit for smooth, safe starts
Control Input Options 5K potentiometer, Isolated analog (0-5 VDC), PWM microprocessor output
Connections Quick disconnect terminals
Required Components Line fuse, Resistor, Armature fuse
Dimensions (inches) Width: 5.00" | Height: 2.00" | Length: 7.00"
