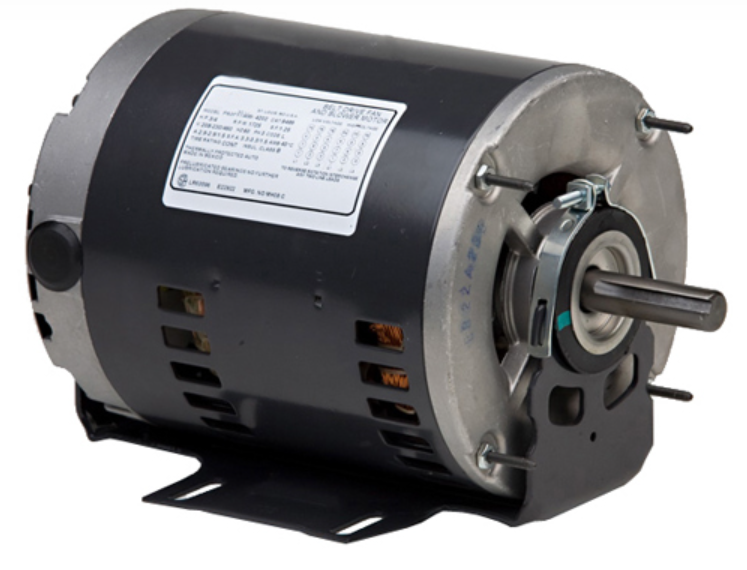

8498, 1Hp, 1725 Rpm, 208-230/460V, ODP, Frame 56 , 6.3" Dia. , P063WBD4227015B

8498, 1Hp, 1725 Rpm, 208-230/460V, ODP, Frame 56 , 6.3" Dia. , P063WBD4227015B

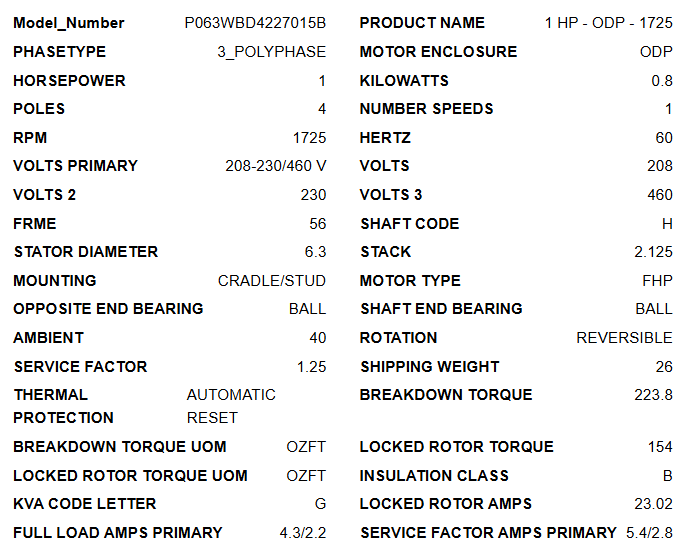

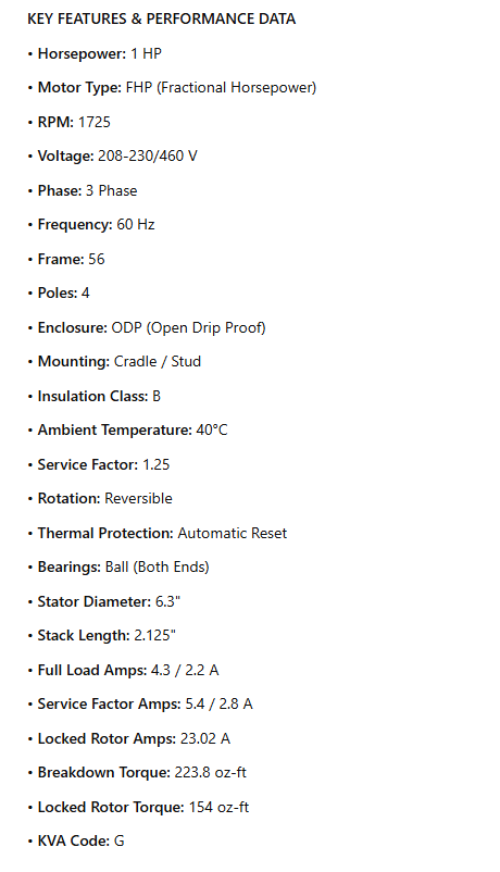

KEY FEATURES & PERFORMANCE DATA

• Horsepower: 1 HP

• Motor Type: FHP (Fractional Horsepower)

• RPM: 1725

• Voltage: 208-230/460 V

• Phase: 3 Phase

• Frequency: 60 Hz

• Frame: 56

• Poles: 4

• Enclosure: ODP (Open Drip Proof)

• Mounting: Cradle / Stud

• Insulation Class: B

• Ambient Temperature: 40°C

• Service Factor: 1.25

• Rotation: Reversible

• Thermal Protection: Automatic Reset

• Bearings: Ball (Both Ends)

• Stator Diameter: 6.3"

• Stack Length: 2.125"

• Full Load Amps: 4.3 / 2.2 A

• Service Factor Amps: 5.4 / 2.8 A

• Locked Rotor Amps: 23.02 A

• Breakdown Torque: 223.8 oz-ft

• Locked Rotor Torque: 154 oz-ft

• KVA Code: G
