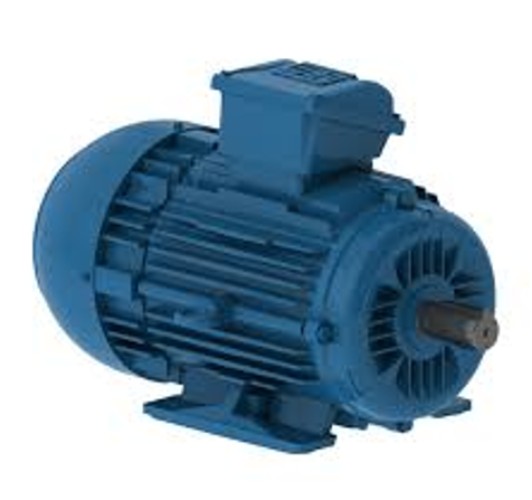

16928142, W22 IE3 Premium Efficiency, 50Hp(37kW),575V,3560 Rpm,200L, TEFC, IP55

16928142, 1078940638, Weg, Mod: TE1B0X0X, CC029A,  W22 IE3 Premium Efficiency, 50Hp (37 kW), 575V, 3560 RPm, 200L, TEFC, IP55

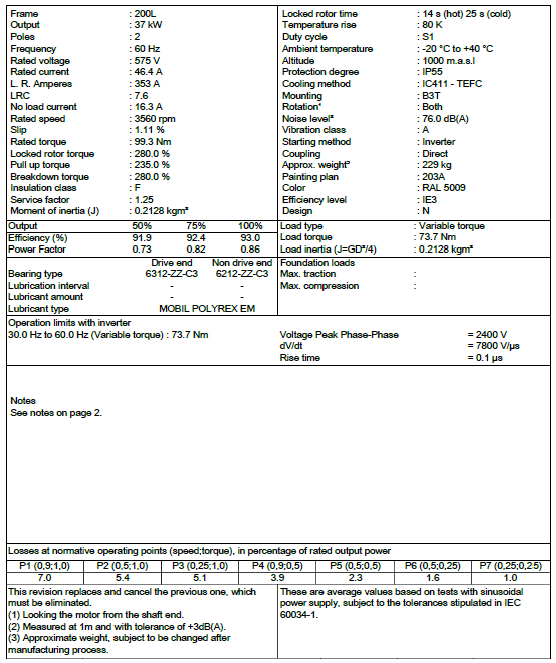

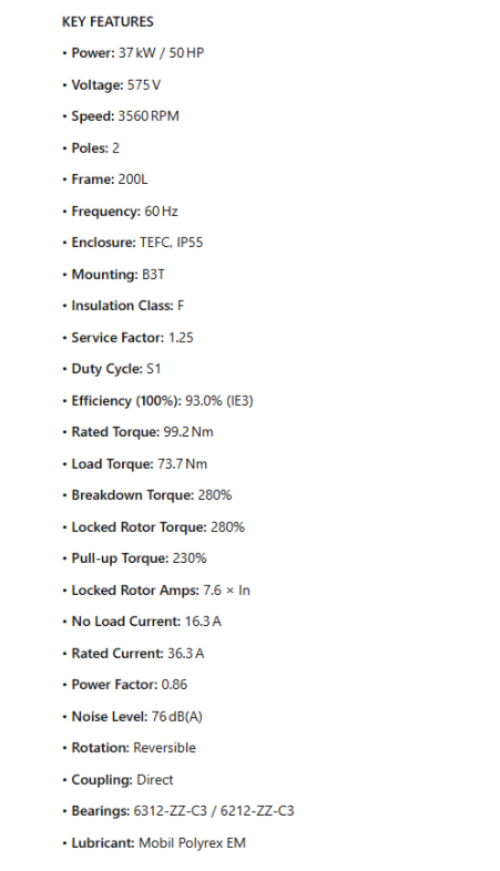

KEY FEATURES

• Power: 37 kW / 50 HP

• Voltage: 575 V

• Speed: 3560 RPM

• Poles: 2

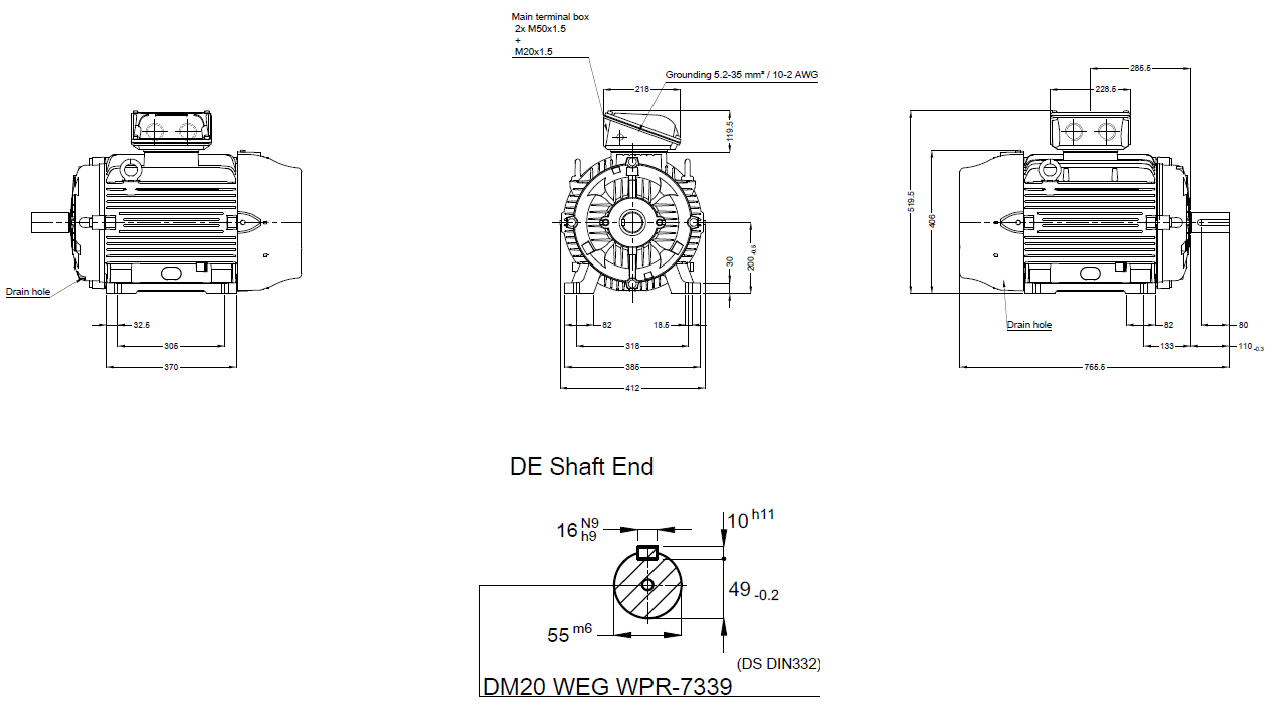

• Frame: 200L

• Frequency: 60 Hz

• Enclosure: TEFC, IP55

• Mounting: B3T

• Insulation Class: F

• Service Factor: 1.25

• Duty Cycle: S1

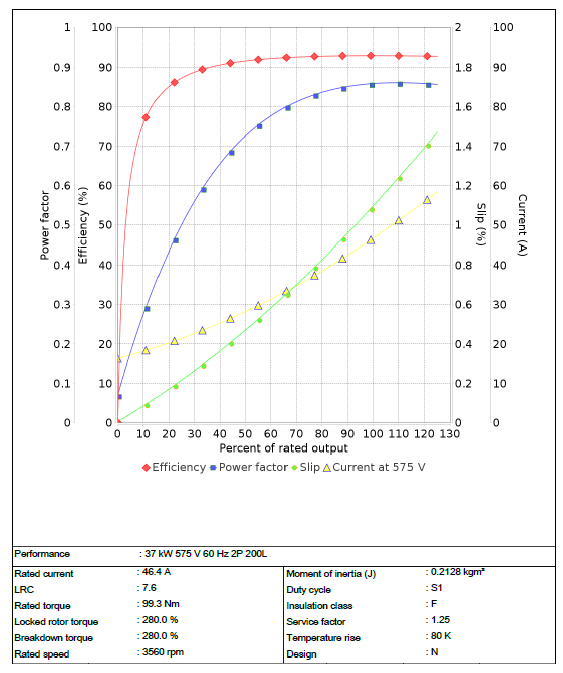

• Efficiency (100%): 93.0% (IE3)

• Rated Torque: 99.2 Nm

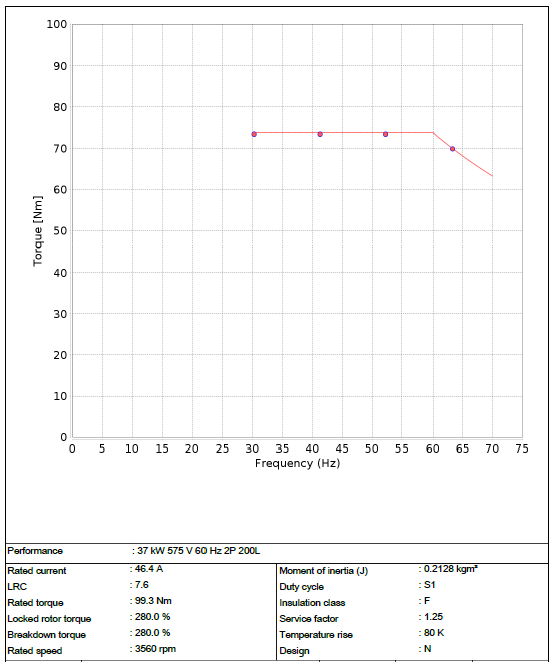

• Load Torque: 73.7 Nm

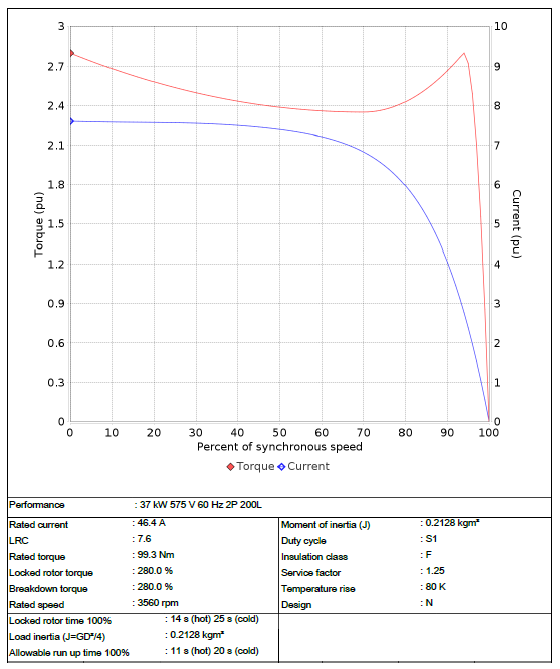

• Breakdown Torque: 280%

• Locked Rotor Torque: 280%

• Pull-up Torque: 230%

• Locked Rotor Amps: 7.6 × In

• No Load Current: 16.3 A

• Rated Current: 36.3 A

• Power Factor: 0.86

• Noise Level: 76 dB(A)

• Rotation: Reversible

• Coupling: Direct

• Bearings: 6312-ZZ-C3 / 6212-ZZ-C3

• Lubricant: Mobil Polyrex EM

** Note: This product is built to order. Typical delivery time is 12 to 14 weeks.
