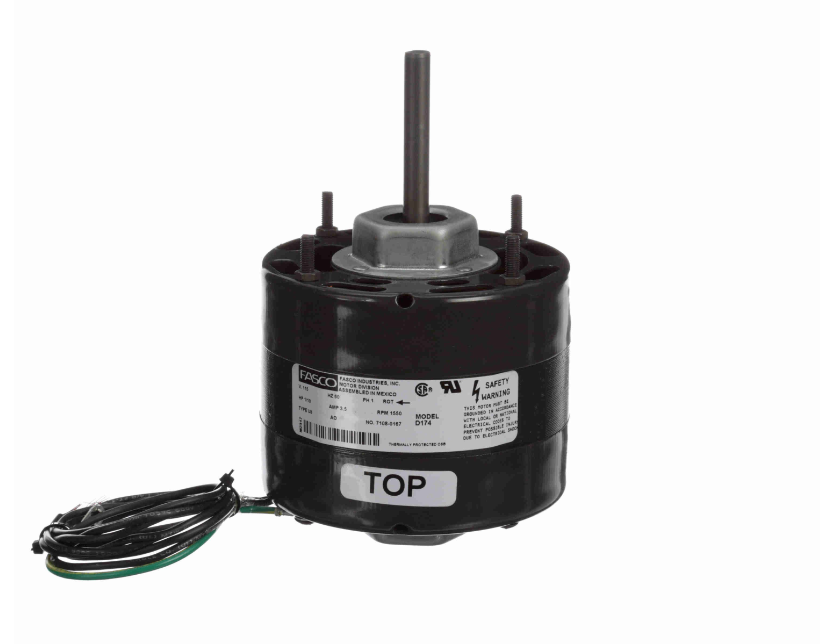

D174, Fan and Blower Motor, 1/10Hp, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 4.4" Diameter, OAO

D174, Fan and Blower Motor, 1/10Hp, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 4.4" Diameter, OAO

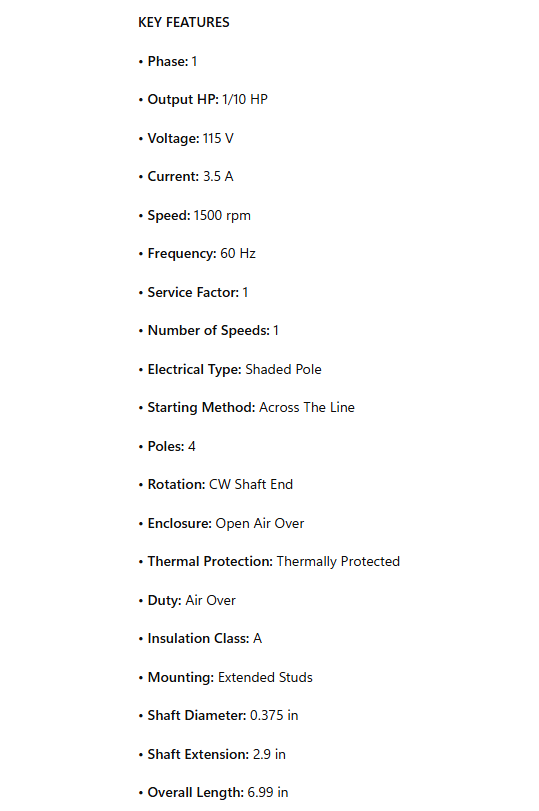

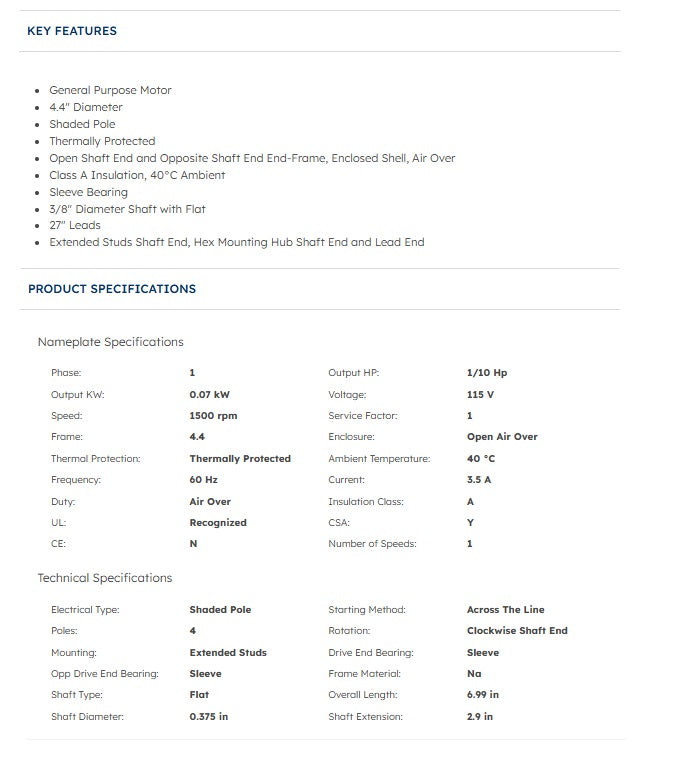

KEY FEATURES

• Phase: 1

• Output HP: 1/10 HP

• Voltage: 115 V

• Current: 3.5 A

• Speed: 1500 rpm

• Frequency: 60 Hz

• Service Factor: 1

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Poles: 4

• Rotation: CW Shaft End

• Enclosure: Open Air Over

• Thermal Protection: Thermally Protected

• Duty: Air Over

• Insulation Class: A

• Mounting: Extended Studs

• Shaft Diameter: 0.375 in

• Shaft Extension: 2.9 in

• Overall Length: 6.99 in

CROSS REFERENCE

• 46

• CA2G177N

• D310
