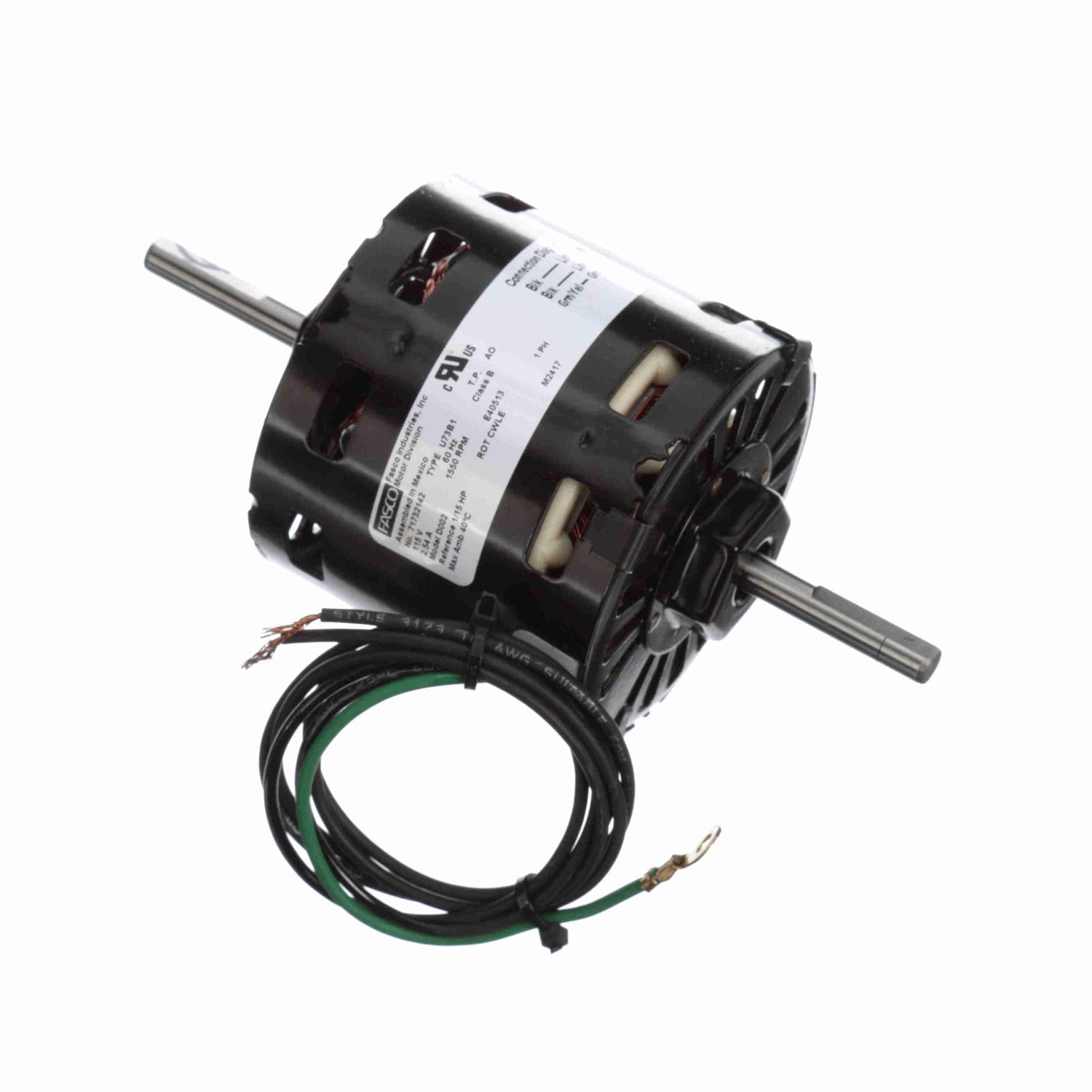

D002, JA2R067,Double Shaft Motor, 1/15Hp, 60 Hz, 115V,1550 RPM, 1 Speed, OAO,

D002, Ventilation Motor, 1/25Hp, 1 Ph, 60 Hz, 115 V, 1550 RPM, 1 Speed, 3.3" Diameter, OAO, Replace JA2R067,

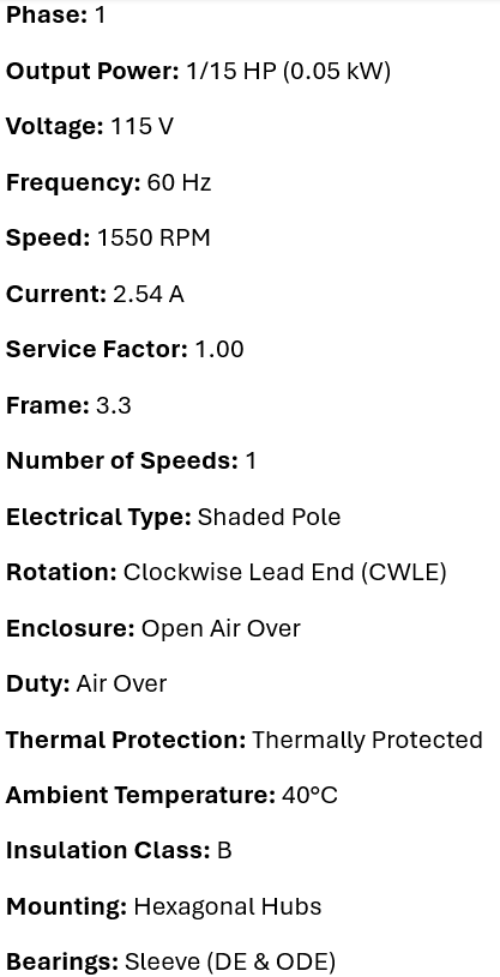

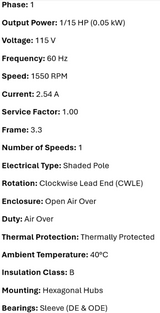

KEY FEATURES

• Phase: 1

• Output Power: 1/15 HP (0.05 kW)

• Voltage: 115 V

• Frequency: 60 Hz

• Speed: 1550 RPM

• Current: 2.54 A

• Service Factor: 1.00

• Frame: 3.3

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Rotation: Clockwise Lead End (CWLE)

• Enclosure: Open Air Over

• Duty: Air Over

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40°C

• Insulation Class: B

• Mounting: Hexagonal Hubs

• Bearings: Sleeve (DE & ODE)
