Xactone  |  SKU : EMN-018797

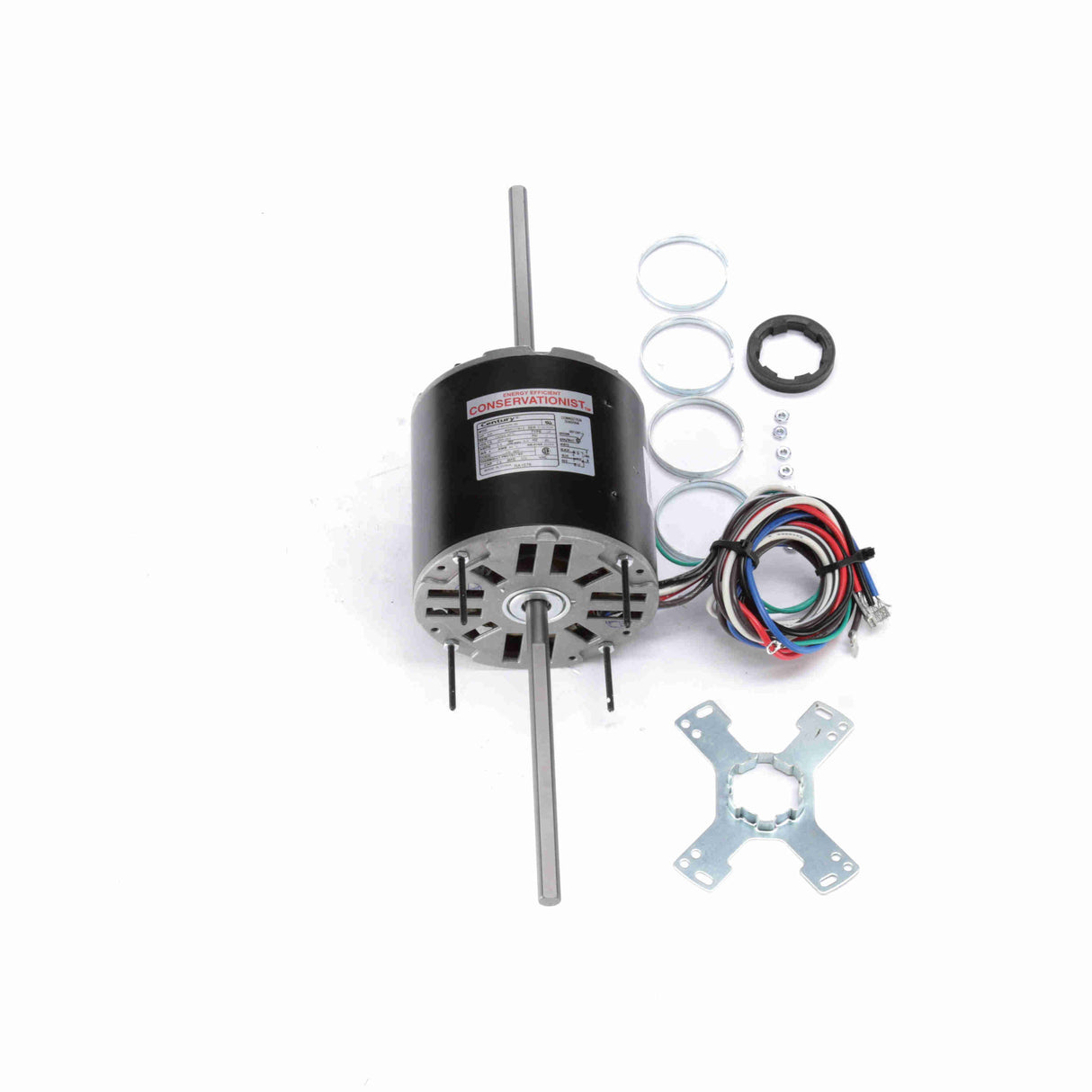

XRAL1056, Xactone, Fan Coil & Air Conditioner Motor, 1/2 Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED - RAL1056

$285.55
shipping

Estimation des frais de livraison

Description

XRAL1056, Xactone replaces, Century RAL1056, US Motor NAL1056, Rotom R52761

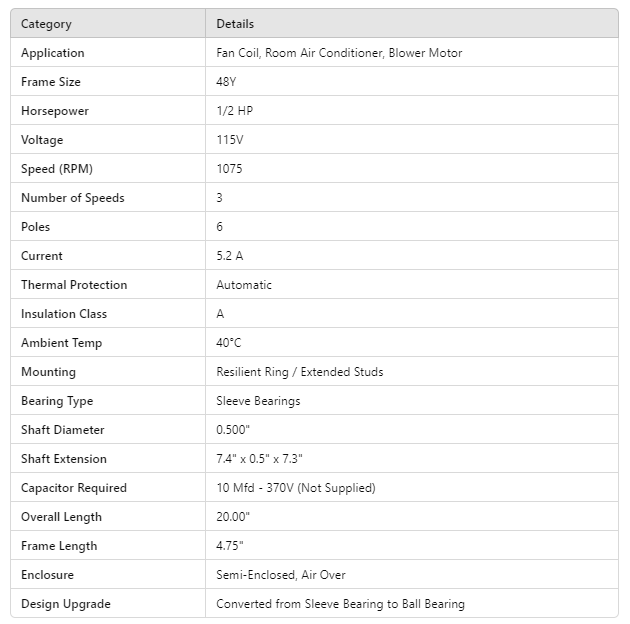

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Frame Size 48Y
Horsepower 1/2 HP
Voltage 115V
Speed (RPM) 1075
Number of Speeds 3
Poles 6
Current 5.2 A
Thermal Protection Automatic
Insulation Class A
Ambient Temp 40°C
Mounting Resilient Ring / Extended Studs
Bearing Type Sleeve Bearings
Shaft Diameter 0.500"
Shaft Extension 7.4" x 0.5" x 7.3"
Capacitor Required 10 Mfd - 370V (Not Supplied)
Overall Length 20.00"
Frame Length 4.75"
Enclosure Semi-Enclosed, Air Over
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
