CENTURY  |  SKU : EMN-018877

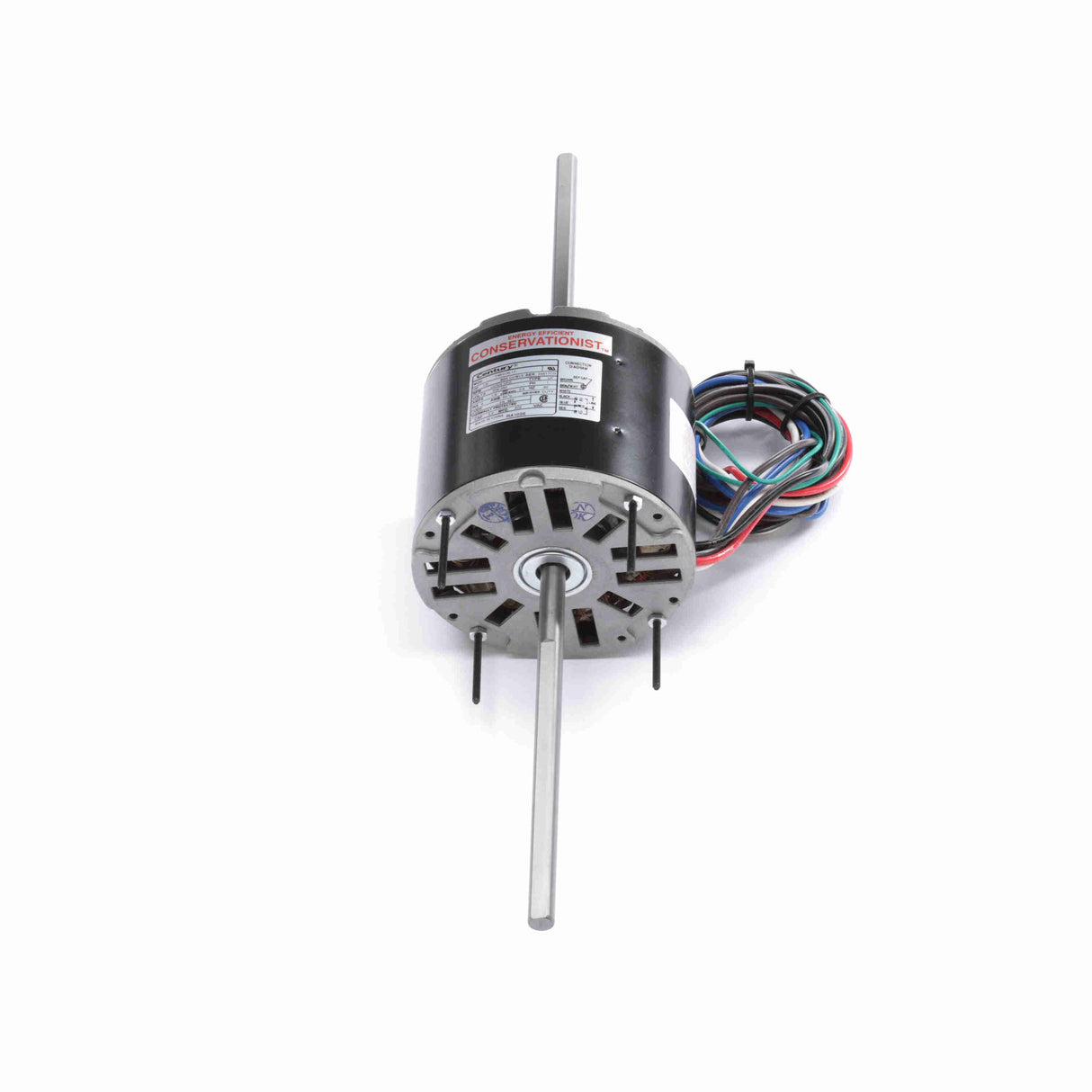

RA1036, Century Fan Coil & Air Conditioner Motor, 1/3 Hp, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED (Copy)

$317.83
shipping

Estimation des frais de livraison

Description

RA1036, Century Fan Coil & Air Conditioner Motor, 1/3 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED, Rotom R52102,

Equivalent: Xactone XRA1036

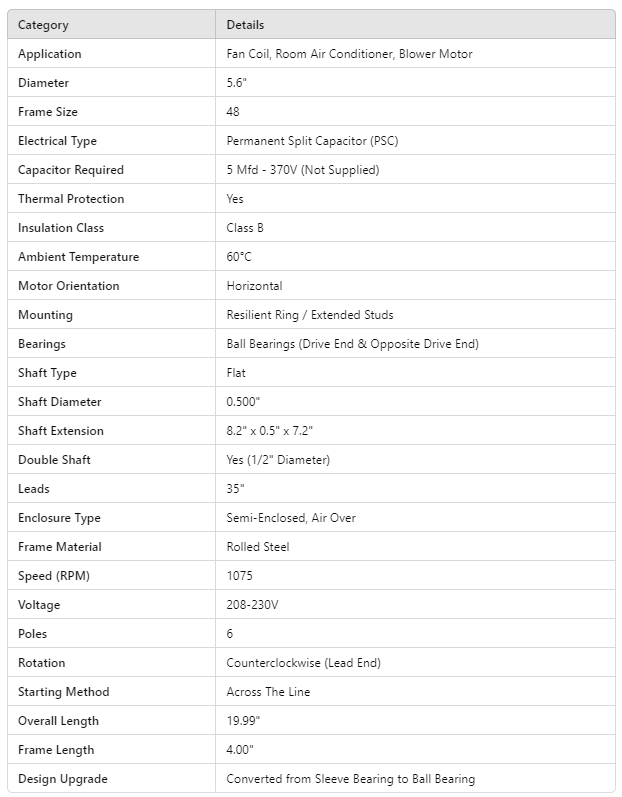

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Diameter 5.6"
Frame Size 48
Electrical Type Permanent Split Capacitor (PSC)
Capacitor Required 5 Mfd - 370V (Not Supplied)
Thermal Protection Yes
Insulation Class Class B
Ambient Temperature 60°C
Motor Orientation Horizontal
Mounting Resilient Ring / Extended Studs
Bearings Ball Bearings (Drive End & Opposite Drive End)
Shaft Type Flat
Shaft Diameter 0.500"
Shaft Extension 8.2" x 0.5" x 7.2"
Double Shaft Yes (1/2" Diameter)
Leads 35"
Enclosure Type Semi-Enclosed, Air Over
Frame Material Rolled Steel
Speed (RPM) 1075
Voltage 208-230V
Poles 6
Rotation Counterclockwise (Lead End)
Starting Method Across The Line
Overall Length 19.99"
Frame Length 4.00"
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
