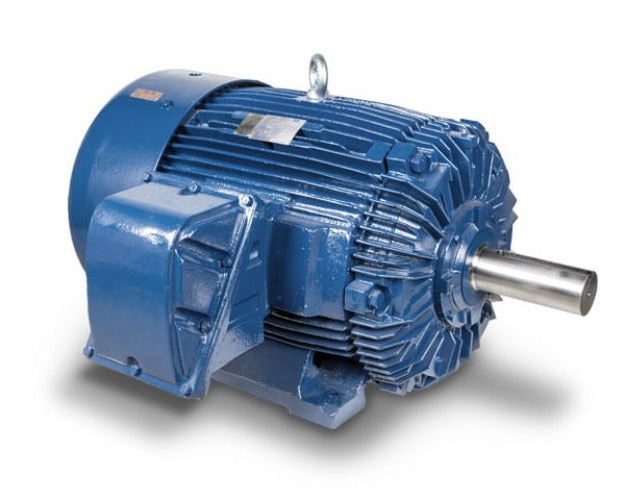

XC00545, Westinghouse, 5 Hp, 1750 Rpm, 575V, Fr:184T, Explosion Proof,

XC00545, Westinghouse, 5 Hp, 1750 Rpm, 575V, Fr:184T, Explosion Proof,

Replace Weg HX005504NPW21X,

• 5 Hp
• RATED SPEED: 1750 rpm
• Volts 575V
• BEARING CAP: Yes- Bearing Cap
• FRAME: 182/4T
• IMPREGNATION METHOD: Dip and Bake Polyester
• MAIN TERMINAL BOX HOLE: NPT 3/4"
• TERMINAL BLOCK: Without
• SHAFT LOCKING DEVICE: Without
• SHAFT MATERIAL: SAE 1040/45 Carbon Steel
• PAINTING: RAL 5009 202P (ISO 12944 - C4)
• GROUNDING LUGS: Single
• FAN COVER MATERIAL: Steel
• TROPICALIZED PAINTING: Without
• FAN MATERIAL: Plastic
• FRAME MATERIAL: Cast Iron
• BALANCING METHOD: 1/2 Key
• DRIP COVER: Without
• OVERLOAD PROTECTOR (PHENOLIC): Without overload protector
• NDE BEARING: 6206 2RS
• GREASE TYPE: Mobil Polyrex EM
• LOCKED ROTOR TORQUE: 250 %
• LOCKED ROTOR TIME: 30s (cold) 17s (hot)
• ALTITUDE: 1000 m.a.s.l.
• AMBIENT TEMPERATURE: -20°C to +40°C
• STARTING METHOD: Direct On Line
• DUTY CYCLE: Cont.(S1)
• TEMPERATURE RISE: 80 K
• SERVICE FACTOR: 1.15
• INSULATION CLASS: F
• DESIGN: B
• MOMENT OF INERTIA (J): 0.3695 sq.ft.lb
• STANDARD: NEMA MG-1
• BREAKDOWN TORQUE: 330 %
• RATED TORQUE: 14.8 ft.lb
• NO LOAD CURRENT: 2.48 A
• LRC: 7.1x(Code J)
• L. R. AMPERES: 37.3 A
• RATED CURRENT: 5.26 A
• SLIP: 2.78 %
• RATED SPEED: 1750 rpm
• MOUNTING: F-1
• DEGREE OF PROTECTION: IP55
• FREQUENCY: 60 Hz
• SYNCHRONOUS SPEED: 1800 rpm
• FLANGE: Without
