G652, 0.33Hp, 1200 RPM, 115/208‑230 V, 1 Ph, 60 Hz, EPFC, Frame 56, 056C11G5307

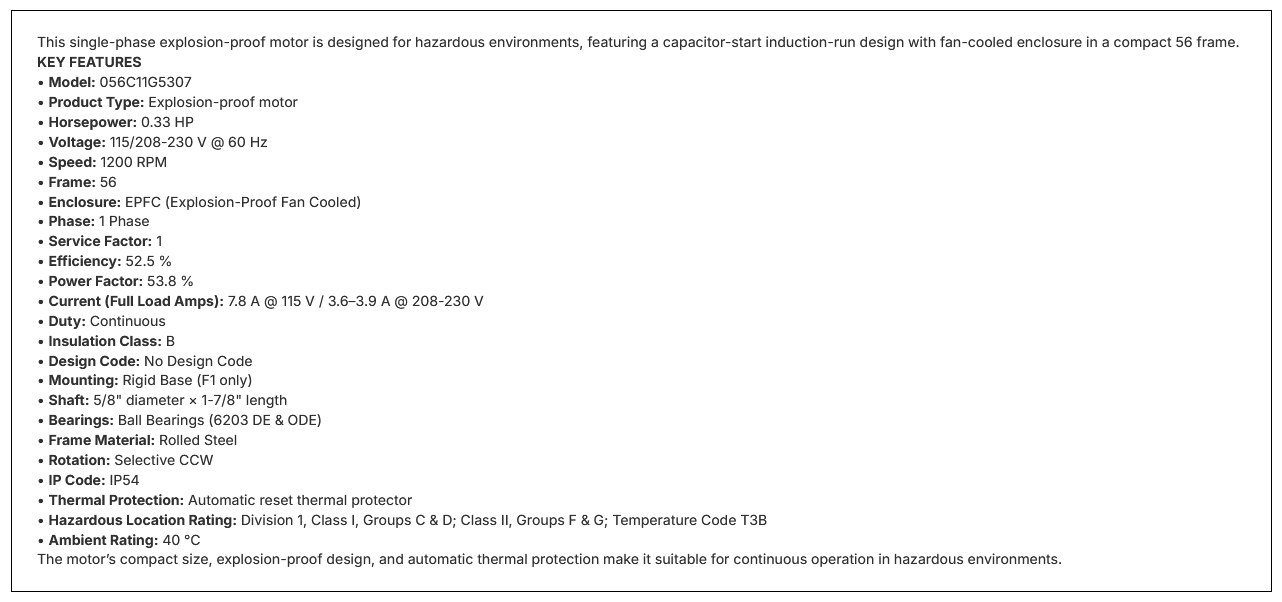

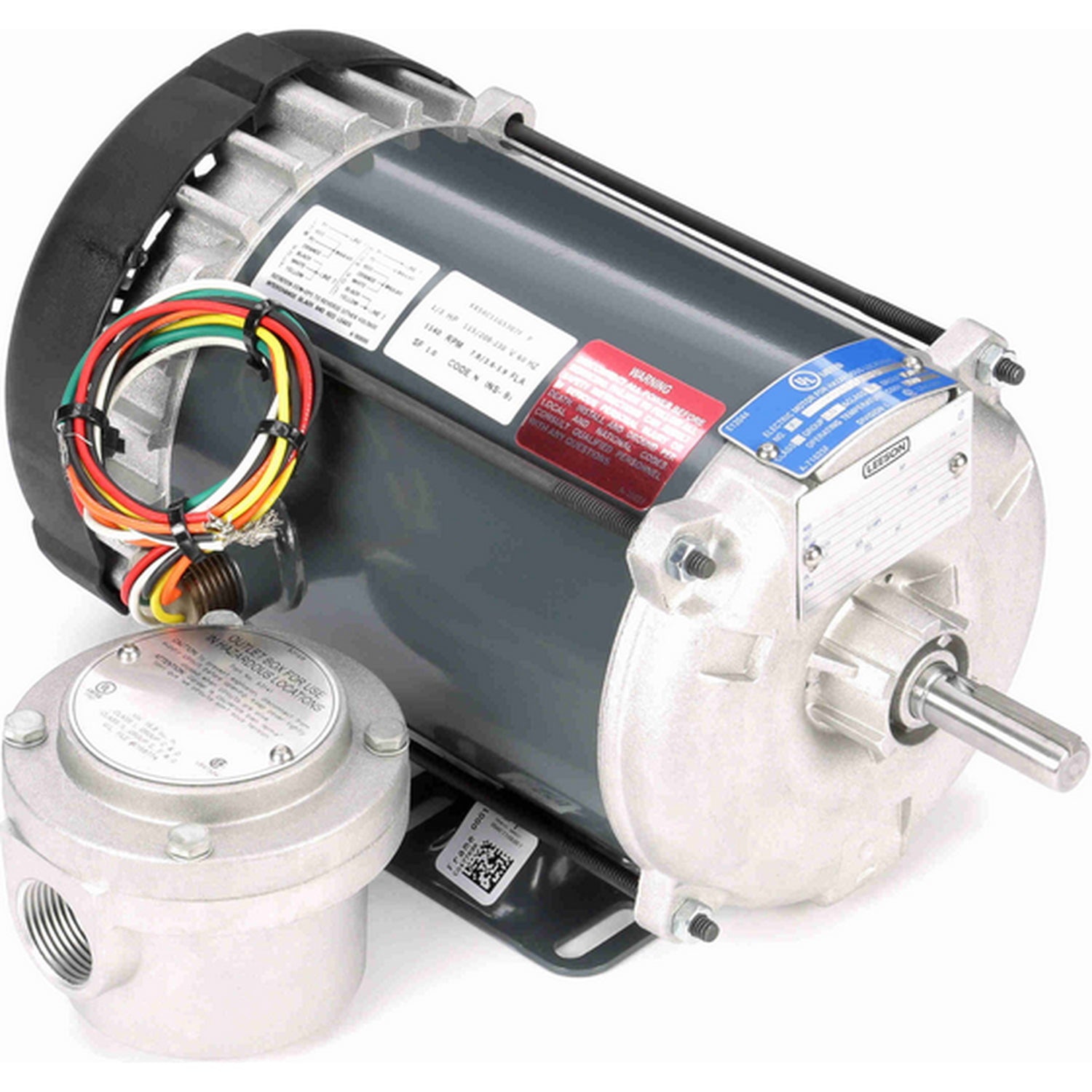

This single‑phase explosion‑proof motor is designed for hazardous environments, featuring a capacitor‑start induction‑run design with fan‑cooled enclosure in a compact 56 frame.

Replace: XL050362A,35-0000-1161

KEY FEATURES

• Model: 056C11G5307

• Product Type: Explosion‑proof motor

• Horsepower: 0.33 HP

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1200 RPM

• Frame: 56

• Enclosure: EPFC (Explosion‑Proof Fan Cooled)

• Phase: 1 Phase

• Service Factor: 1

• Efficiency: 52.5 %

• Power Factor: 53.8 %

• Current (Full Load Amps): 7.8 A @ 115 V / 3.6–3.9 A @ 208‑230 V

• Duty: Continuous

• Insulation Class: B

• Design Code: No Design Code

• Mounting: Rigid Base (F1 only)

• Shaft: 5/8" diameter × 1‑7/8" length

• Bearings: Ball Bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Selective CCW

• IP Code: IP54

• Thermal Protection: Automatic reset thermal protector

• Hazardous Location Rating: Division 1, Class I, Groups C & D; Class II, Groups F & G; Temperature Code T3B

• Ambient Rating: 40 °C

The motor’s compact size, explosion‑proof design, and automatic thermal protection make it suitable for continuous operation in hazardous environments.
