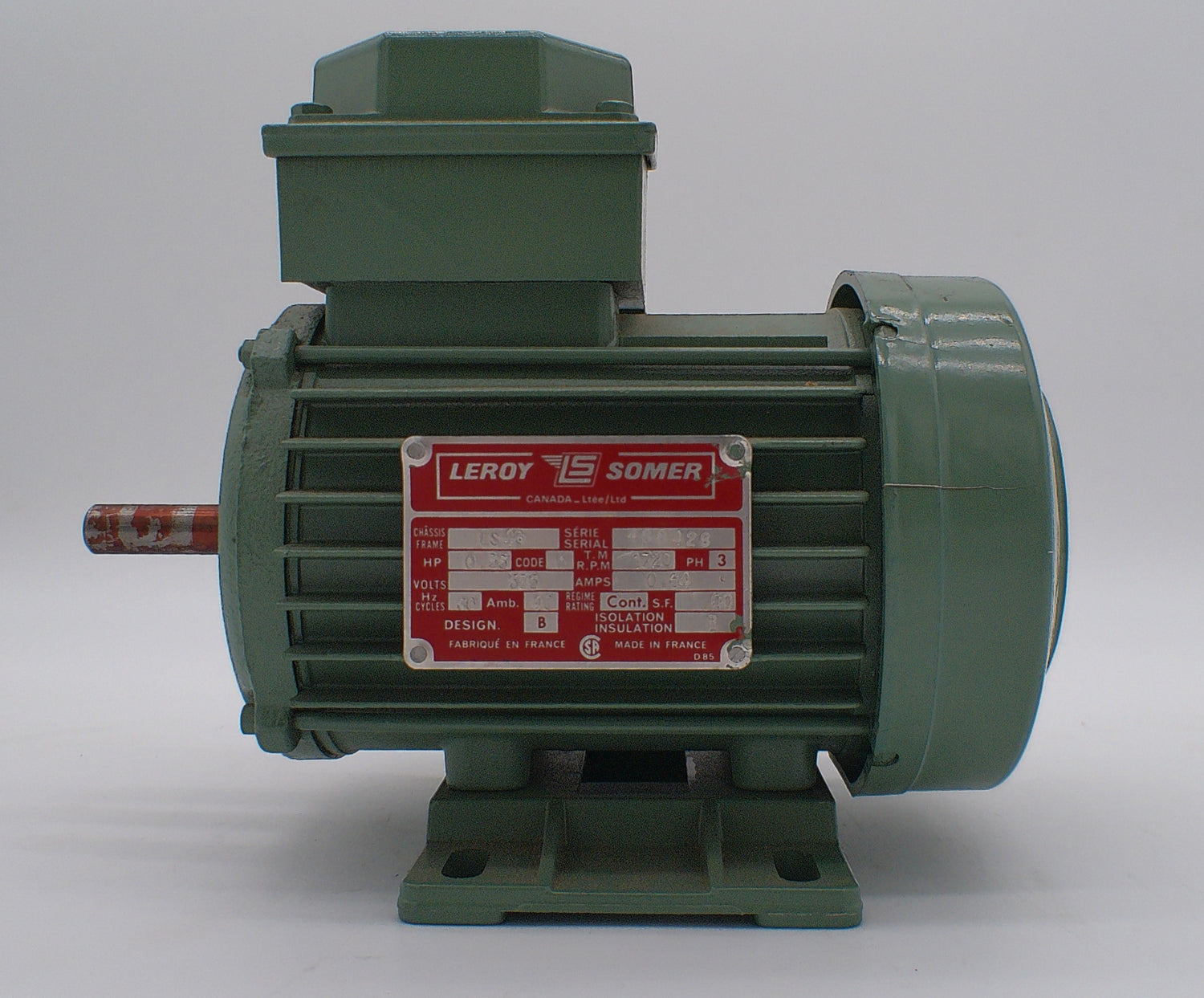

468426, Leroy Somer, 1/3Hp, 1720 Rpm, 575 Volts, Frame: 48, Tefc,

468426, Leroy Somer

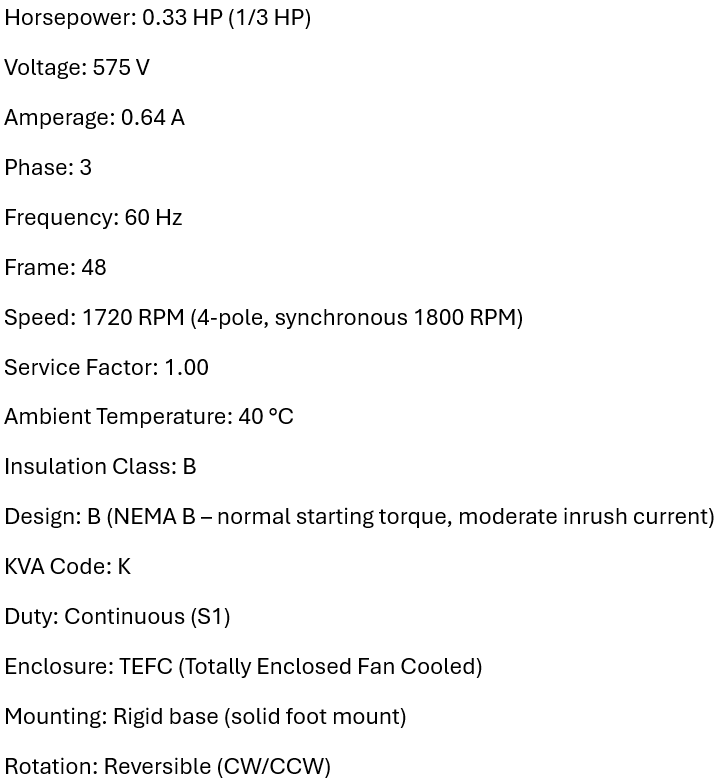

• Horsepower: 0.33 HP (1/3 HP)

• Voltage: 575 V

• Amperage: 0.64 A

• Phase: 3

• Frequency: 60 Hz

• Frame: 48

• Speed: 1720 RPM (4-pole, synchronous 1800 RPM)

• Service Factor: 1.00

• Ambient Temperature: 40 °C

• Insulation Class: B

• Design: B (NEMA B – normal starting torque, moderate inrush current)

• KVA Code: K

• Duty: Continuous (S1)

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Mounting: Rigid base (solid foot mount)

• Rotation: Reversible (CW/CCW)
