D412, Draft Inducer Motor, 1/9Hp, 3000/2500 RPM, 230 V, 1‑Phase, 60 Hz, OAO
D412, Draft Inducer Motor, 1/9Hp, 3000/2500 RPM, 230 V, 1‑Phase, 60 Hz, OAO est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
D412, Draft Inducer Motor, 1/9Hp, 3000/2500 RPM, 230 V, 1‑Phase, 60...
Description
Description

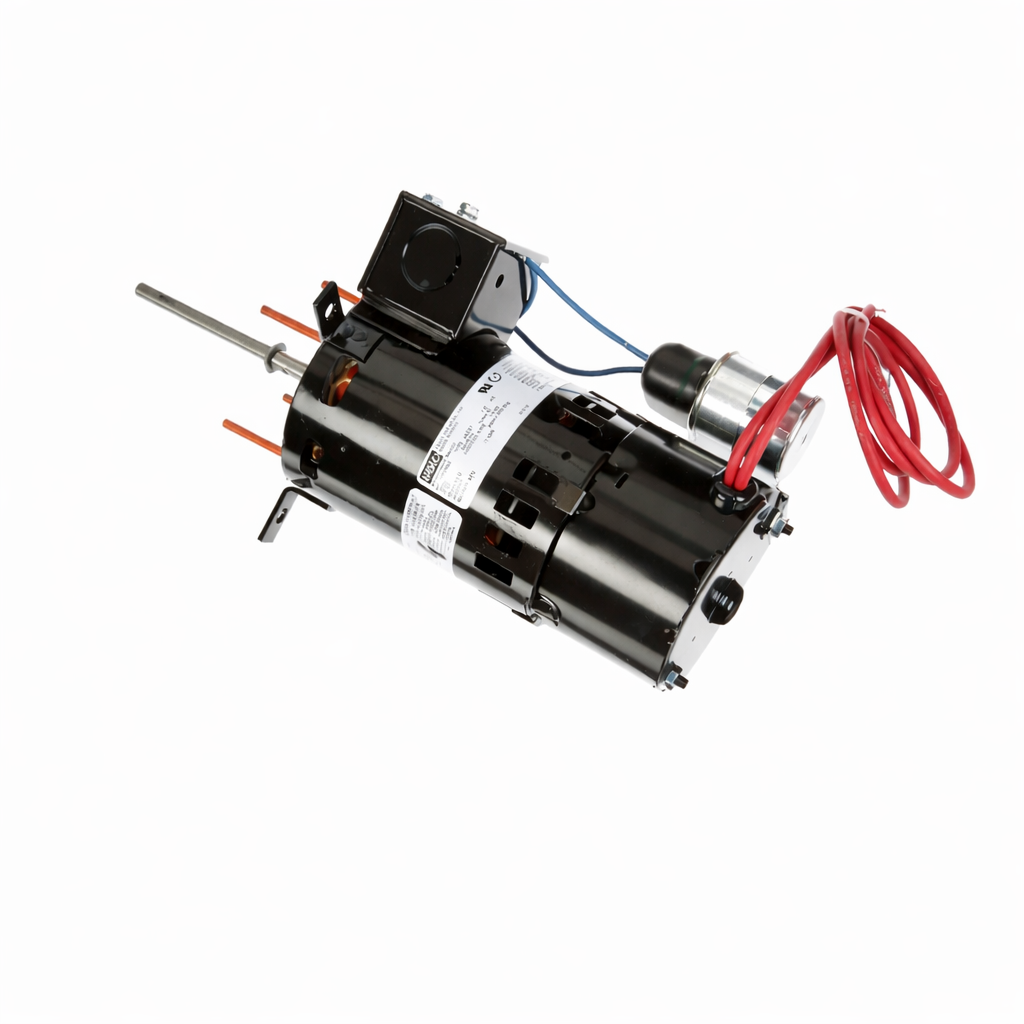

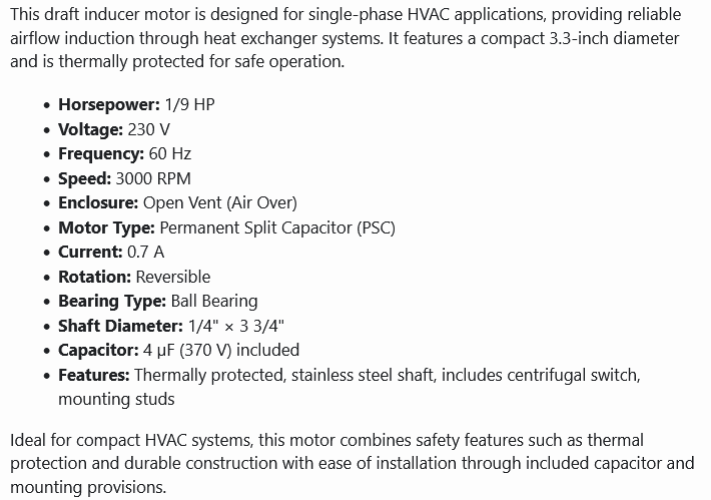

This draft inducer motor is designed for single‑phase HVAC applications, providing reliable airflow induction through heat exchanger systems. It features a compact 3.3‑inch diameter and is thermally protected for safe operation.
- Horsepower: 1/9 HP
- Voltage: 230 V
- Frequency: 60 Hz
- Speed: 3000 RPM
- Enclosure: Open Vent (Air Over)
- Motor Type: Permanent Split Capacitor (PSC)
- Current: 0.7 A
- Rotation: Reversible
- Bearing Type: Ball Bearing
- Shaft Diameter: 1/4" × 3 3/4"
- Capacitor: 4 µF (370 V) included
- Features: Thermally protected, stainless steel shaft, includes centrifugal switch, mounting studs
Replace : 71620941, SW280-1, Type U62B1,
Ideal for compact HVAC systems, this motor combines safety features such as thermal protection and durable construction with ease of installation through included capacitor and mounting provisions.
