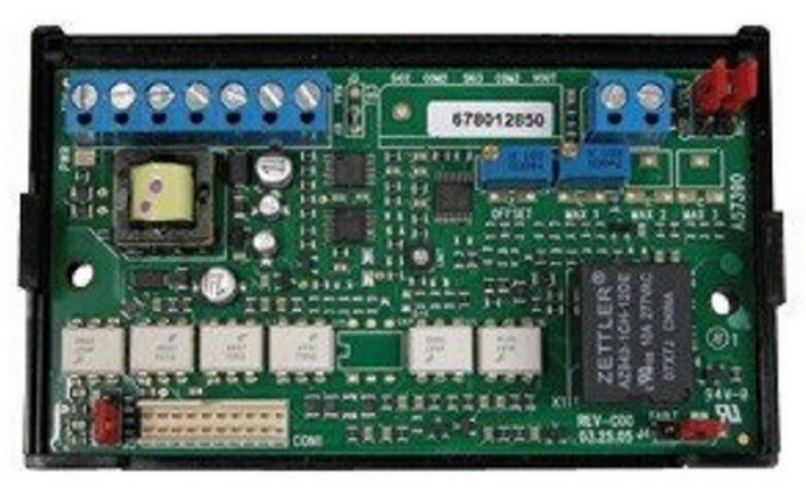

9597, KBVF SIVR Signal Isolator & Run / Fault Relay

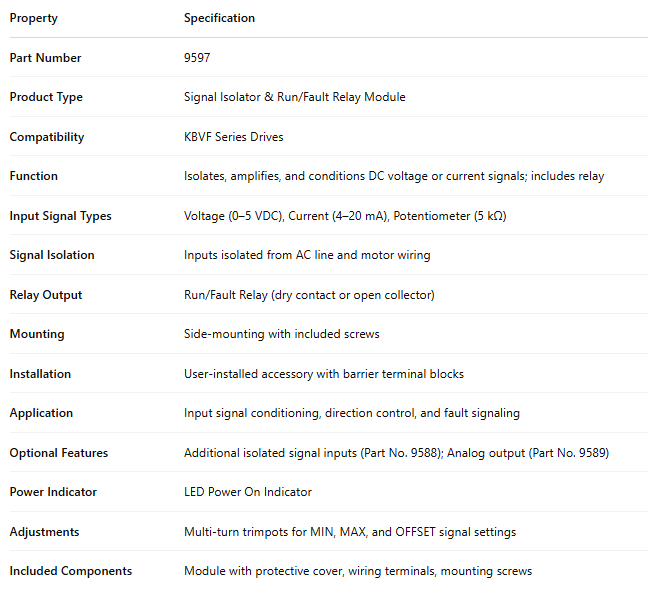

Property	Specification
Part Number	9597
Product Type	Signal Isolator & Run/Fault Relay Module
Compatibility	KBVF Series Drives
Function	Isolates, amplifies, and conditions DC voltage or current signals; includes relay
Input Signal Types	Voltage (0–5 VDC), Current (4–20 mA), Potentiometer (5 kΩ)
Signal Isolation	Inputs isolated from AC line and motor wiring
Relay Output	Run/Fault Relay (dry contact or open collector)
Mounting	Side-mounting with included screws
Installation	User-installed accessory with barrier terminal blocks
Application	Input signal conditioning, direction control, and fault signaling
Optional Features	Additional isolated signal inputs (Part No. 9588); Analog output (Part No. 9589)
Power Indicator	LED Power On Indicator
Adjustments	Multi-turn trimpots for MIN, MAX, and OFFSET signal settings
Included Components	Module with protective cover, wiring terminals, mounting screws

Our stock of KB Electronic accessories features a range of control periphery products from switch kits and fuse kits to replacement potentiometers and AC line filters. These products provide more functions and better performance to your KB Electronics AC and DC drives.
