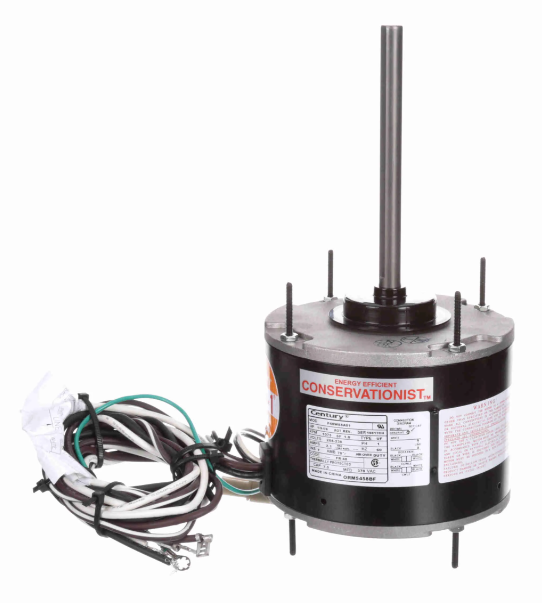

ORM5458BF, Condenser Fan Motor, 1/3-1/6Hp, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO

ORM5458BF, Condenser Fan Motor, 1/3-1/6Hp, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO

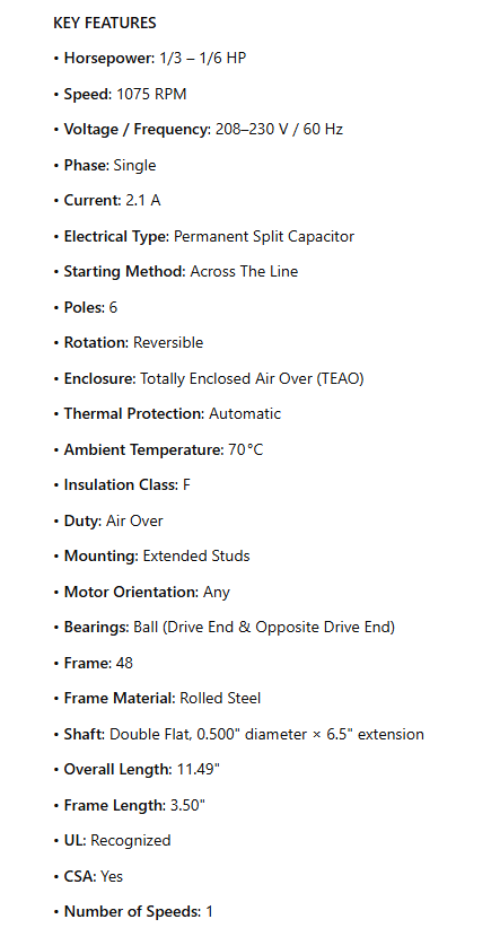

KEY FEATURES

• Horsepower: 1/3 – 1/6 HP

• Speed: 1075 RPM

• Voltage / Frequency: 208–230 V / 60 Hz

• Phase: Single

• Current: 2.1 A

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

• Poles: 6

• Rotation: Reversible

• Enclosure: Totally Enclosed Air Over (TEAO)

• Thermal Protection: Automatic

• Ambient Temperature: 70 °C

• Insulation Class: F

• Duty: Air Over

• Mounting: Extended Studs

• Motor Orientation: Any

• Bearings: Ball (Drive End & Opposite Drive End)

• Frame: 48

• Frame Material: Rolled Steel

• Shaft: Double Flat, 0.500" diameter × 6.5" extension

• Overall Length: 11.49"

• Frame Length: 3.50"

• UL: Recognized

• CSA: Yes

• Number of Speeds: 1
