1-15, Aluminum Eze-Hub - Bored 15mm

E-Motor Nations

1-15, Aluminum Eze-Hub - Bored 15mm

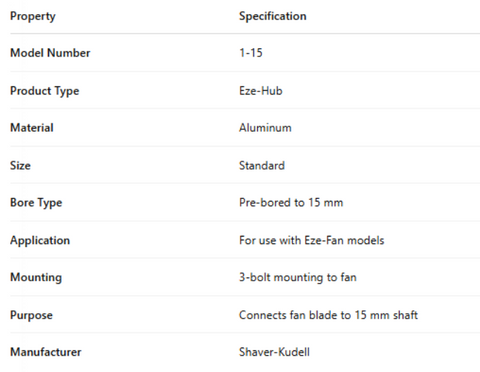

Property Specification
Model Number 1-15
Product Type Eze-Hub
Material Aluminum
Size Standard
Bore Type Pre-bored to 15 mm
Application For use with Eze-Fan models
Mounting 3-bolt mounting to fan
Purpose Connects fan blade to 15 mm shaft
Manufacturer Shaver-Kudell

All our fans are made to be assembled using the Eze-Hub®. These hubs are taper locked upon assembly and allow for installation and removal without any damage to the fan or shaft. The hubs can be bought separately and are available in a variety of metric or standard bore sizes to satisfy your customers needs.

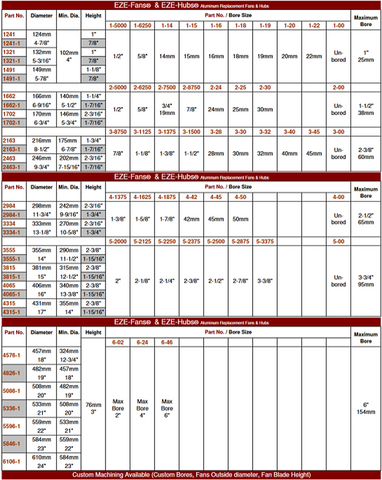

Each size and style of fan will fit many interchangeable bore sizes. This will keep your inventory to a minimum.

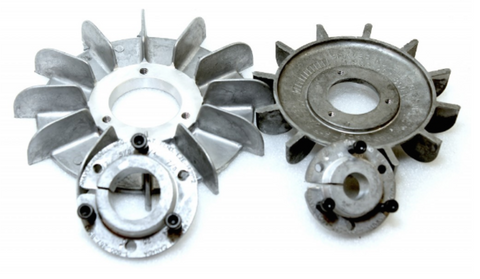

Aluminum EZE-Fan® Advantages:
– Completely machined with new taper lock hubs
– new design allows for removal and replacement without damage to the fan
– Gives rebuilt and new motors higher energy efficiency and better cooling
– Stronger and lighter than sand cast fans
– More durable than plastic fans
– Excellent surface finish (due to the nature of die casting)
