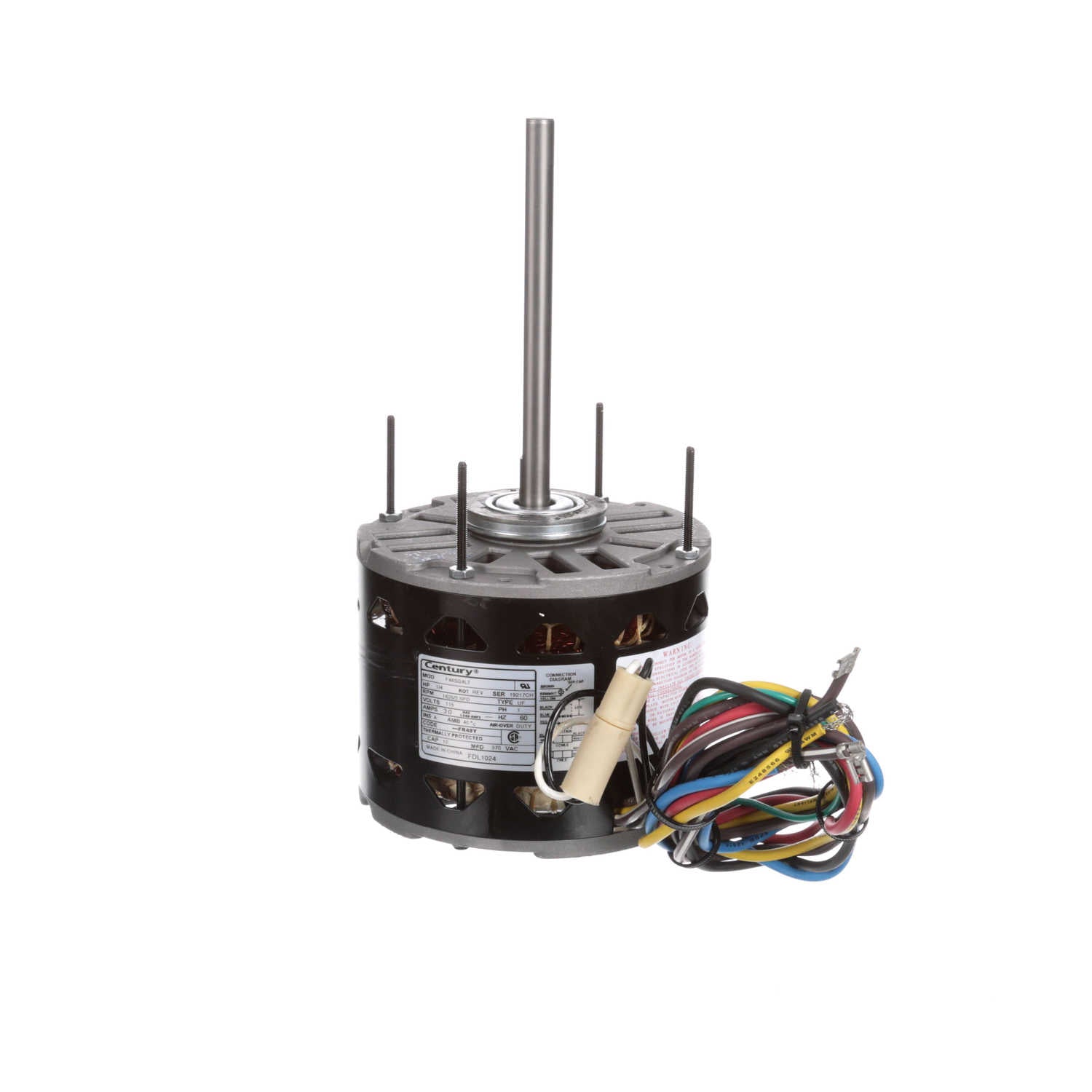

FDL1024, CENTURY, 1/4HP, 1625/3SPD, 115V, 48Y, 1690, US MOTOR, GE 5KCP39EGH898 S, CPN 921762

FDL1024, CENTURY, 1690, EM-1690, US MOTORS, FDL1024, A.O SMITH, CENTURY, D782 FASCO, GE 5KCP39EGH898 S, CPN 921762

• Horsepower :1/4
• Voltage :115
• Amps :2.70
• RPM :1625
• Frequency :60 Hz
• Length :4.30"
• "C" Dim. :10.40"
• Enclosure :Open Air Over
• Shaft Dim. :1/2" x 6.00"
• Type :Permanent Split Capacitor
• Speeds :3
• Diameter :5-5/8"
• Frame :48Y
• Bearings :Self-Aligning Bearings
• Rotation :Reversible
• Protector :Automatic
• Service Factor :1.00
• Phase :1
• Ambient Temp. :40°C
• Feature(s) :Class 'B' Insulation, 2.5" Hub Ring Mount, 24" Leads, SAB Bearings have All Angle Thrust System
• Weight (lbs.) :12

• Direct Drive Fan & Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 26" Leads
• Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
