BROWNING  |  SKU : EMN-016377

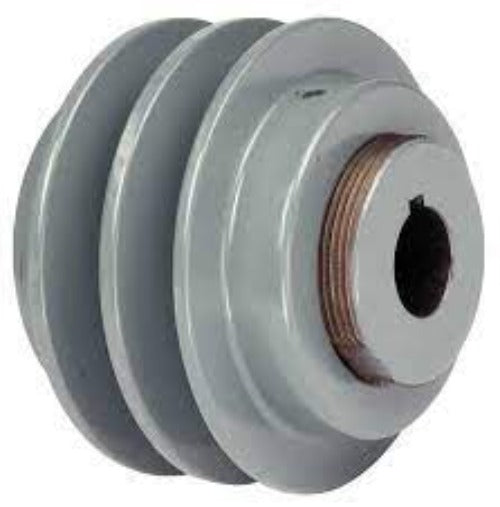

D8400, Maska, Double Adjustable Pulleys, O.D 3.95'', 2VP42, BROWNING, MULTI BORE I.D

$162.46
shipping

Estimation des frais de livraison

Description

D8400, MASKA, 2VP44(4.15 O.D'') OBSELETE REPLACED BY 2VP42 (3.95 O.D'') BROWNING

SPECIFICATIONS

SERIES 2VP42
BORE RANGE [MIN] N/A
B (5L) PITCH DIA. [MIN] 3.1 in
NO. OF GROOVES 1
OVERALL LENGTH 1 7/8 in
G [MIN] 1/2 in
BUSHING SERIES N/A
SIDE MOVEABLE One
BUSHING TYPE None
FACE WIDTH [MIN] 3/4 in
PITCH DIAMETER [MIN] 2.7 in
TYPE 1
BELT SIZE A
B
3L
4L
5L
5V
PITCH DIAMETER [MAX] 3.95 in
FACE WIDTH [MAX] 1 1/8 in
3L PITCH [MIN] 2.7 in
KEYWAY SIZE 3/16 x 3/32
K (IN) 0.6875 in
BELT MATCH 1
FINISHED BORE 7/8 in
OUTSIDE DIA. 4.15 in
BORE RANGE [MAX] N/A
B (5L) PITCH DIA. [MAX] 4.1 in
A (4L) PITCH DIA. [MIN] 2.8 in
3L PITCH [MAX] 3 1/2 in
A (4L) PITCH DIA. [MAX] 3.8 in
G [MAX] 7/8 in
WEIGHT 3.05 LB
PACKAGE QUANTITY 1.0 Piece
EAN OR UPC 662289104963
