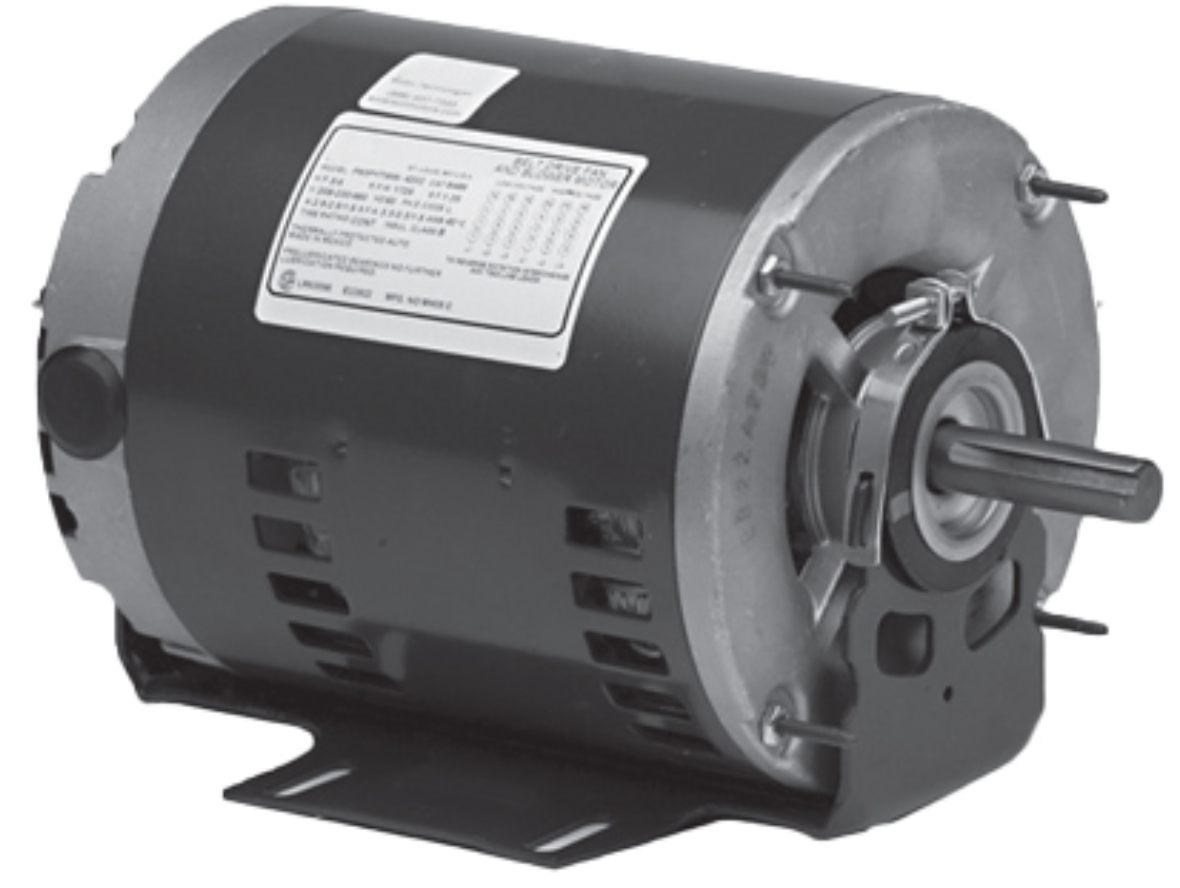

7915VP, 3Hp, 1725 RPM, 200-230/460/3/60, ODP, 56HZ, Commercial Belted Fan & Blower RIGID BASE AUTO OVERLOAD 1.15SF

7915VP, 3Hp, 1725 RPM, 200-230/460/3/60, ODP, 56HZ, Commercial Belted Fan & Blower RIGID BASE AUTO OVERLOAD 1.15SF

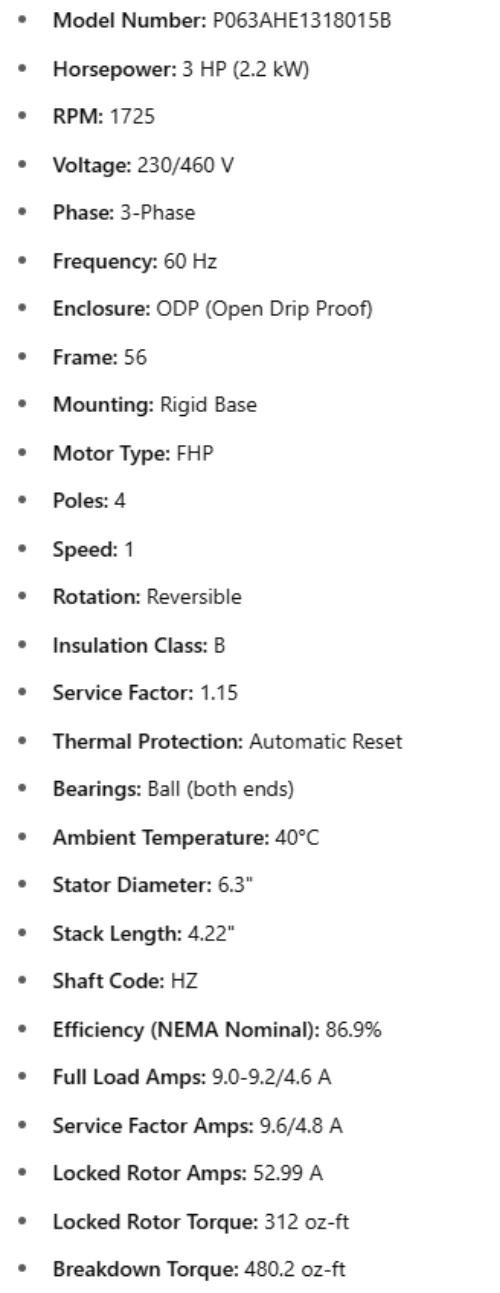

• Model Number: P063AHE1318015B

• Horsepower: 3 HP (2.2 kW)

• RPM: 1725

• Voltage: 230/460 V

• Phase: 3-Phase

• Frequency: 60 Hz

• Enclosure: ODP (Open Drip Proof)

• Frame: 56

• Mounting: Rigid Base

• Motor Type: FHP

• Poles: 4

• Speed: 1

• Rotation: Reversible

• Insulation Class: B

• Service Factor: 1.15

• Thermal Protection: Automatic Reset

• Bearings: Ball (both ends)

• Ambient Temperature: 40°C

• Stator Diameter: 6.3"

• Stack Length: 4.22"

• Shaft Code: HZ

• Efficiency (NEMA Nominal): 86.9%

• Full Load Amps: 9.0-9.2/4.6 A

• Service Factor Amps: 9.6/4.8 A

• Locked Rotor Amps: 52.99 A

• Locked Rotor Torque: 312 oz-ft

• Breakdown Torque: 480.2 oz-ft

Remplace :

• Magnetek / Century AC Motor
• Part # 10-168512-01
• P/N : 23G4101
• S/N : BN6-29
• Certifications : E44549, LR4642
