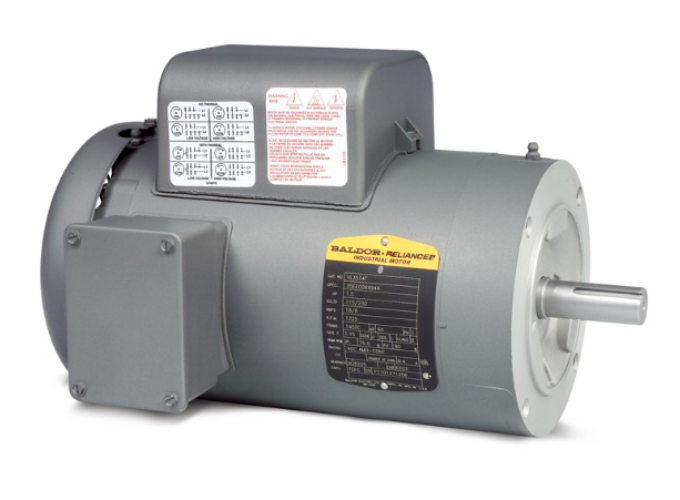

VL3515-50, 2Hp(1.5Kw), 2900RPM, 220V, 1Ph, 50Hz, 56C, 35E022G772, TEFC

VL3515-50, 2Hp(1.5Kw), 2900RPM, 220V, 1Ph, 50Hz, 56C, 35E022G772, TEFC

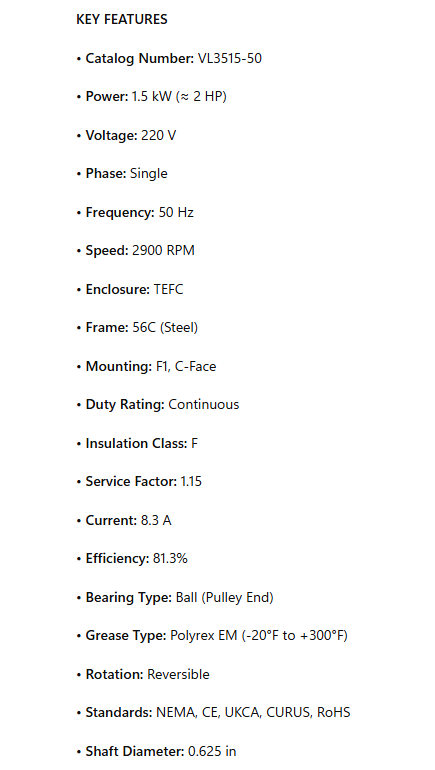

KEY FEATURES

• Catalog Number: VL3515-50

• Power: 1.5 kW (≈ 2 HP)

• Voltage: 220 V

• Phase: Single

• Frequency: 50 Hz

• Speed: 2900 RPM

• Enclosure: TEFC

• Frame: 56C (Steel)

• Mounting: F1, C-Face

• Duty Rating: Continuous

• Insulation Class: F

• Service Factor: 1.15

• Current: 8.3 A

• Efficiency: 81.3%

• Bearing Type: Ball (Pulley End)

• Grease Type: Polyrex EM (-20°F to +300°F)

• Rotation: Reversible

• Standards: NEMA, CE, UKCA, CURUS, RoHS

• Shaft Diameter: 0.625 in
