1 7
BALDOR  |  SKU : EMN-017108

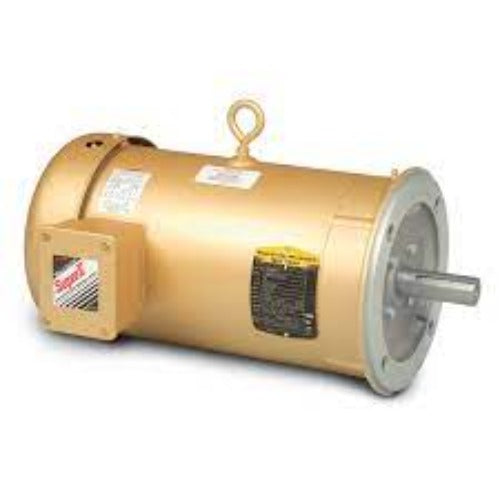

VEM3538, Baldor, 1/2 Hp, 1720 Rpm, 230/460V,35J302G155,TEFC,Round Body, 34A063R706

$564.00
shipping

Estimation des frais de livraison

Description

VEM3538, Baldor,1/2 Hp, 1720 Rpm, 230/460V,35J302G155,TEFC,Round Body, 34A063R706

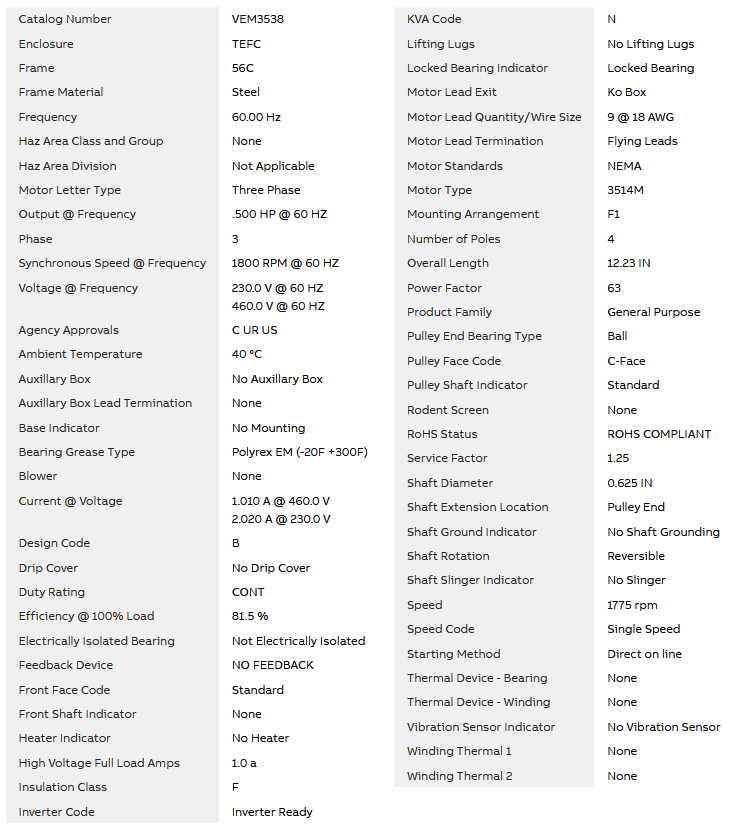

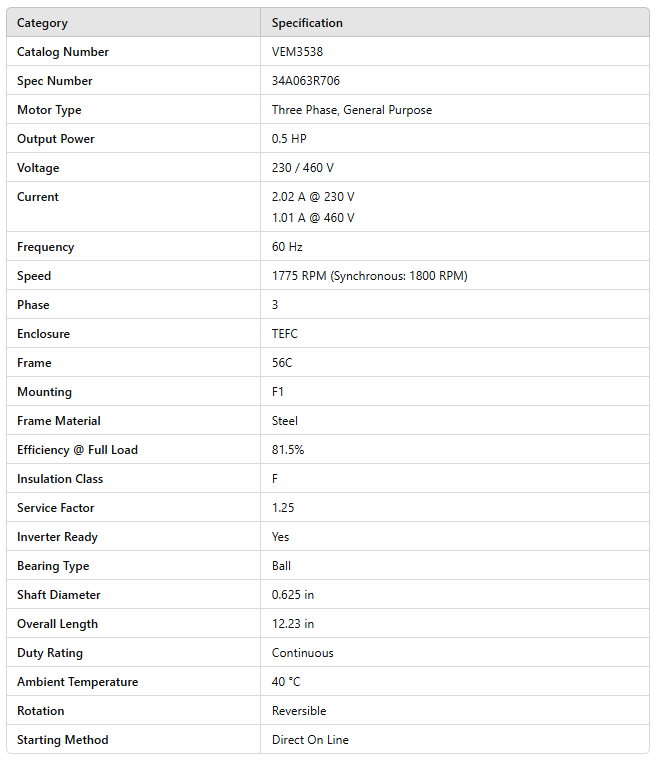

Category Specification
Catalog Number VEM3538
Spec Number 34A063R706
Motor Type Three Phase, General Purpose
Output Power 0.5 HP
Voltage 230 / 460 V
Current 2.02 A @ 230 V
1.01 A @ 460 V
Frequency 60 Hz
Speed 1775 RPM (Synchronous: 1800 RPM)
Phase 3
Enclosure TEFC
Frame 56C
Mounting F1
Frame Material Steel
Efficiency @ Full Load 81.5%
Insulation Class F
Service Factor 1.25
Inverter Ready Yes
Bearing Type Ball
Shaft Diameter 0.625 in
Overall Length 12.23 in
Duty Rating Continuous
Ambient Temperature 40 °C
Rotation Reversible
Starting Method Direct On Line
