BALDOR  |  SKU : EMN-017180

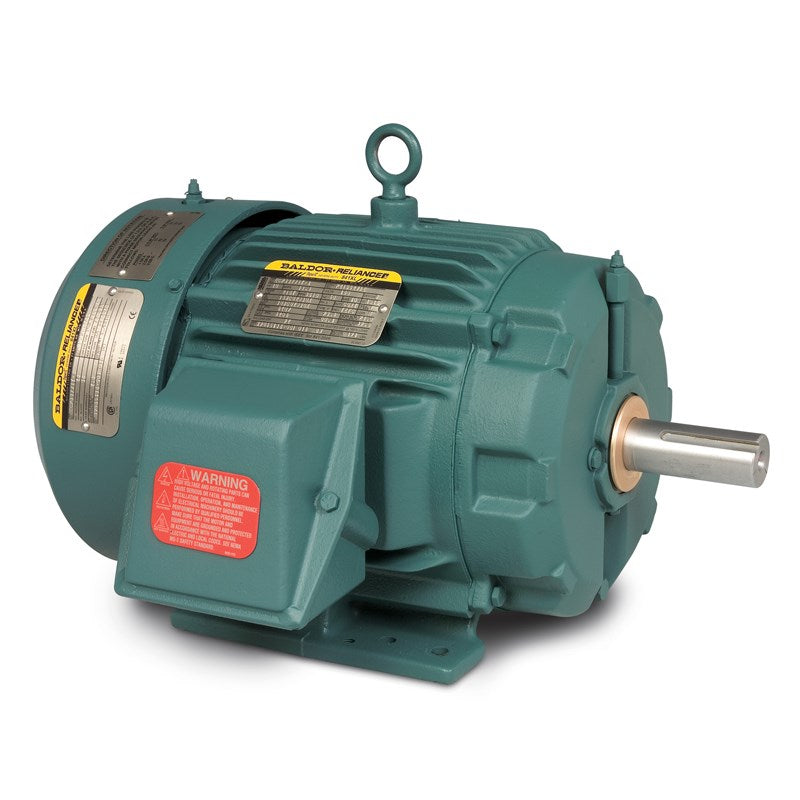

ECP84106T-5,20 Hp,3510 Rpm,575V,Fr:256T,Spec 09-0000-0867,Severe Duty,

$3,880.34
shipping

Estimation des frais de livraison

Description

ECP84106T-5,Spec 09-0000-0867, Severe Duty, Replace EM4106T-5, Spec 09P011Z699, ECP4106T-5, Spec 09J371T123G1,

STK.NO. ECP84106T-5 P/N ENCLOSURE TEFC
SPEC. 09-0000-0867 CC 010A FRAME 256T S/N
HP 20 CLASS F HZ 60 ODE BRG 6309 DE BRG 6309
RPM 3510 RPM MAX 5400 PH 3 DES B D.E. BRG. 45BC03X30X
VOLT 575 KVA-CODE G O.D.E. BRG. 45BC03X30X
AMP 17.9 MOTOR WEIGHT 324 GREASE POLYREX EM
RATING 40C AMB-CONT MAX. KVAR 2.1 BLANK
NEMA-NOM-EFF 91 # OF ROTOR BARS 28 SER.F. 1.15 IP 56
G.MIN.EFF 90.2 # OF STATOR SLOTS 36 PF 91 INV.TYPE PWM
TEMP CODE T3 INVERTER-TEMP-CODE 200
TEMP = 200 C HP FR 60 C HP TO 90
CT HZ FROM 6 CT HZ TO 60
HTR-VOLTS HTR-AMPS HTR-WATTS MAX. SPACE HEATER TEMP. VT HZ FROM 0- VT HZ TO 6
