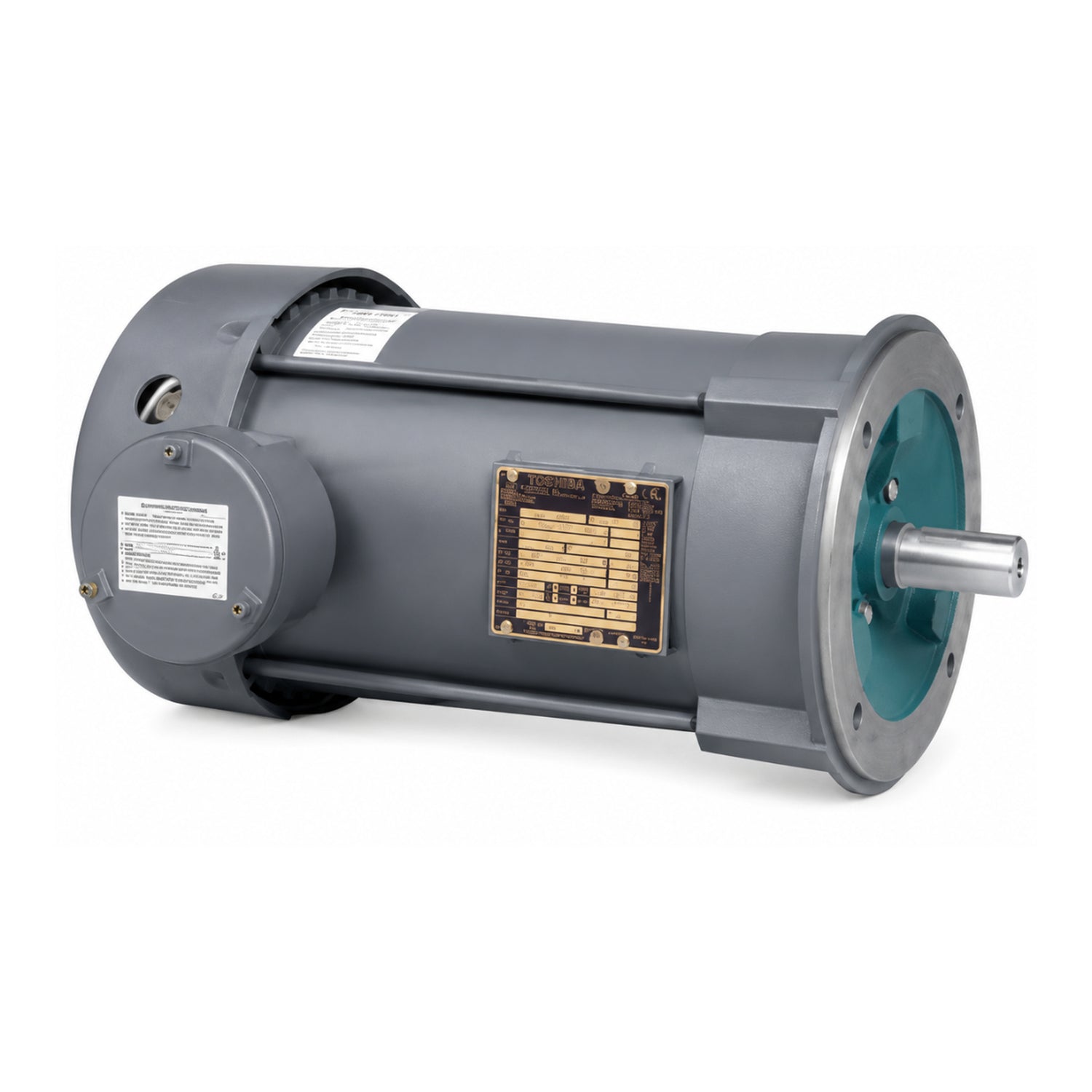

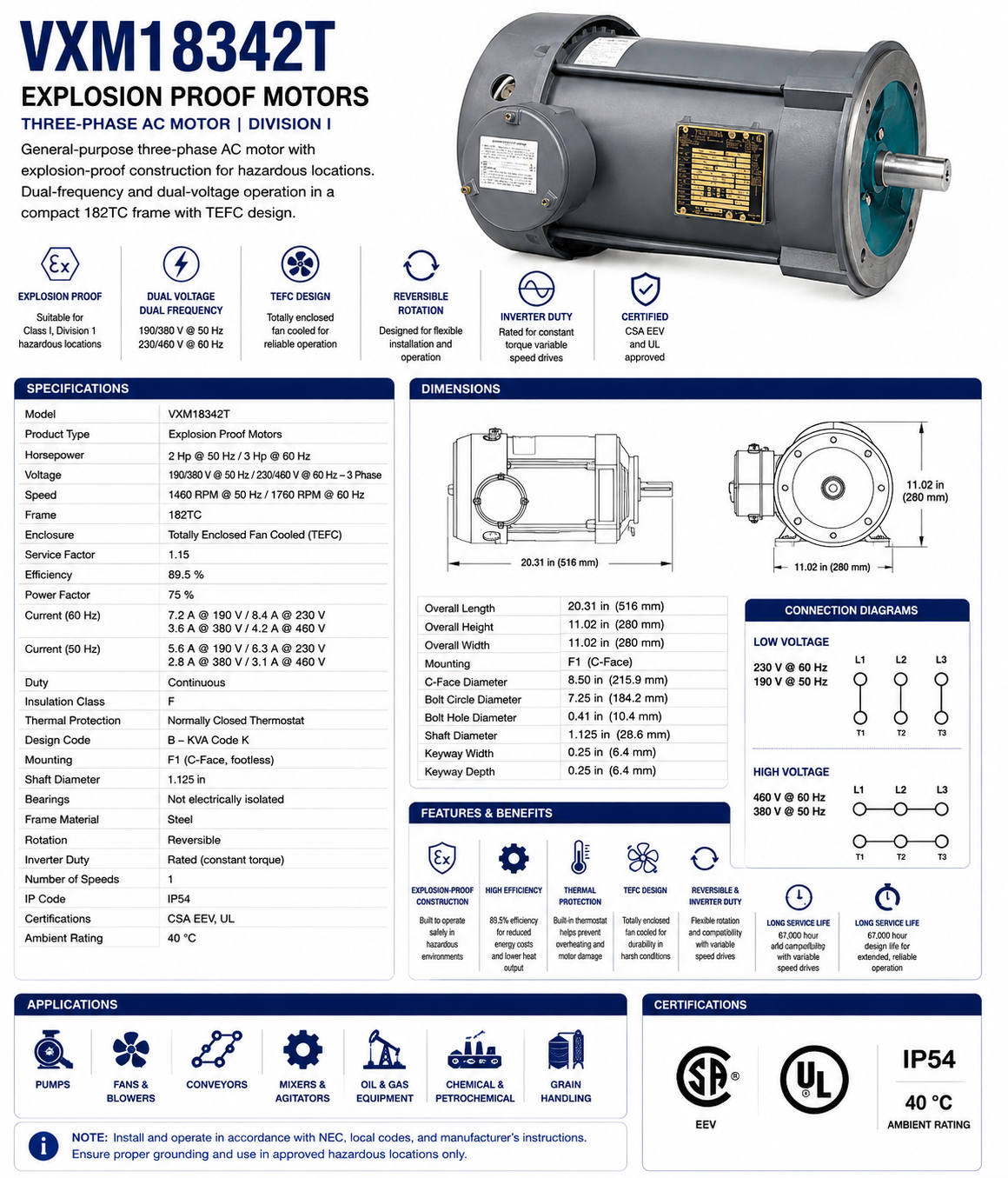

VXM18342T, 2 Hp @ 50 Hz / 3 Hp @ 60 Hz, 1760 / 1460 RPM, 230/460 V @ 60 Hz / 190/380 V @ 50 Hz, 3 Ph, TEFC (Totally Enclosed Fan Cooled), Frame 182TC

This general-purpose three-phase AC motor is designed for hazardous locations (Division I) with explosion-proof construction, offering dual-frequency and dual-voltage operation in a compact 182TC frame with totally enclosed fan-cooled design.

KEY FEATURES

• Model: VXM18342T

• Product Type: EXPLOSION PROOF MOTORS

• Horsepower: 2 Hp @ 50 Hz / 3 Hp @ 60 Hz

• Voltage: 190/380 V @ 50 Hz / 230/460 V @ 60 Hz – 3 Phase

• Speed: 1460 RPM @ 50 Hz / 1760 RPM @ 60 Hz

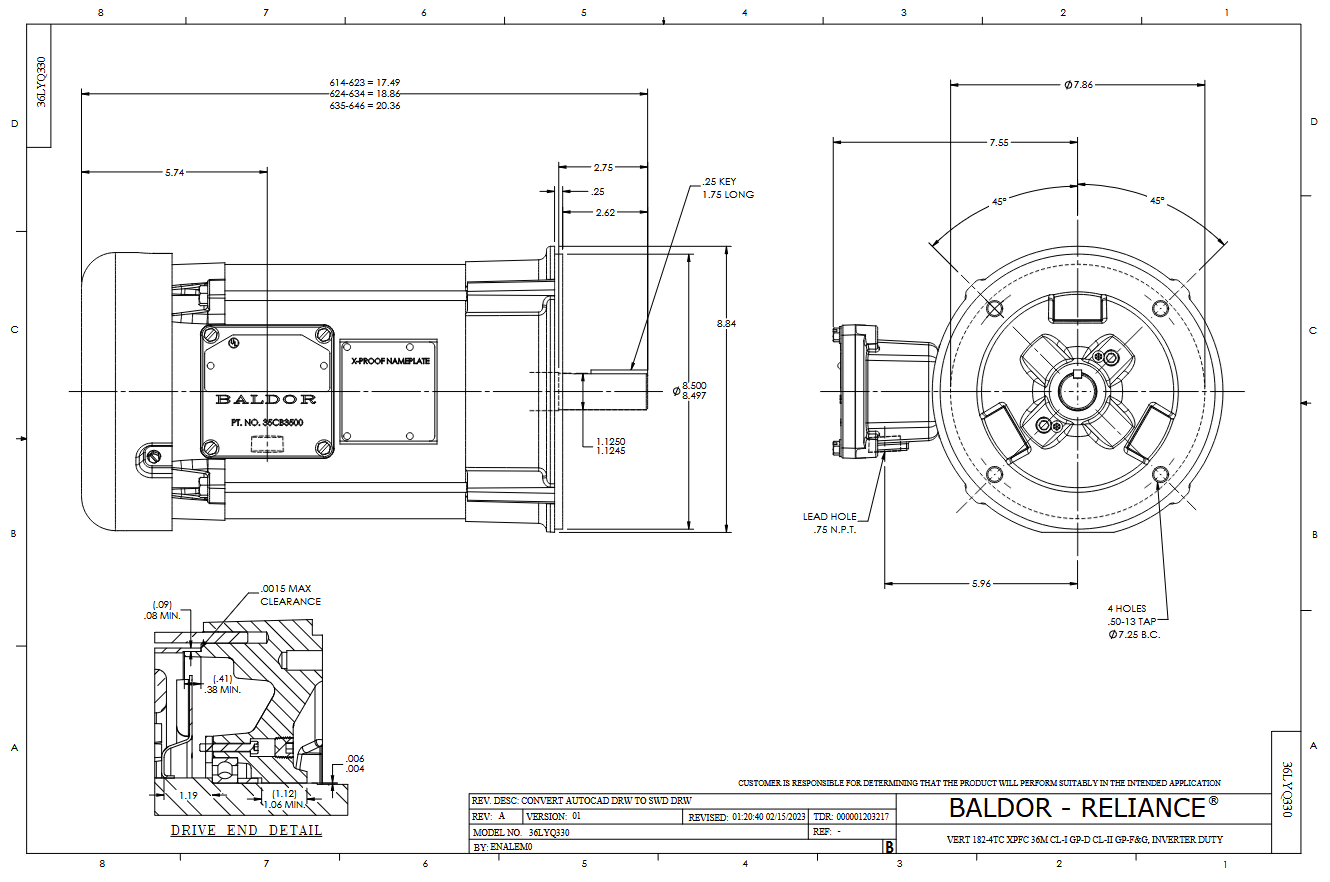

• Frame: 182TC

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 89.5 %

• Power Factor: 75 %

• Current: 7.2 A @ 190 V / 8.4 A @ 230 V @ 60 Hz; 3.6 A @ 380 V / 4.2 A @ 460 V @ 60 Hz (and corresponding values at 50 Hz)

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: Normally Closed Thermostat

• Design Code: B – KVA Code K

• Mounting: F1 (C‑Face, footless)

• Shaft: 1.125 in diameter

• Bearings: Not electrically isolated

• Frame Material: Steel

• Rotation: Reversible

• Inverter Duty: Rated (constant torque)

• Number of Speeds: 1

• IP Code: IP54

• Certifications: CSA EEV, UL

• Ambient Rating: 40 °C
