U32P2DFC, 1. Hp, 1760 RPM @ 60 Hz / 1440 RPM @ 50 Hz, 230/460 V @ 60 Hz / 190/380 V @ 50 Hz, 3 Ph, TEFC, Frame 56C, HR99

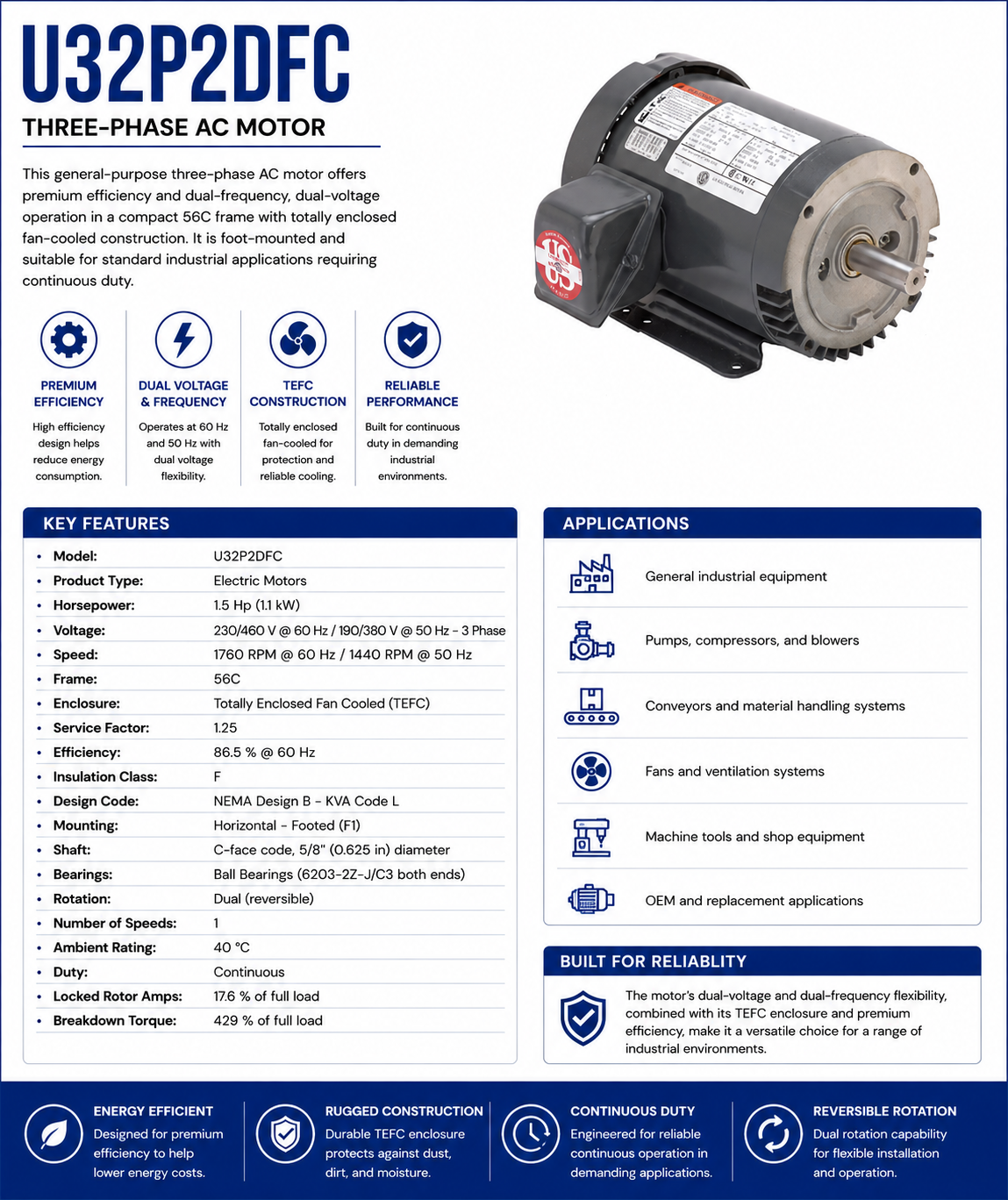

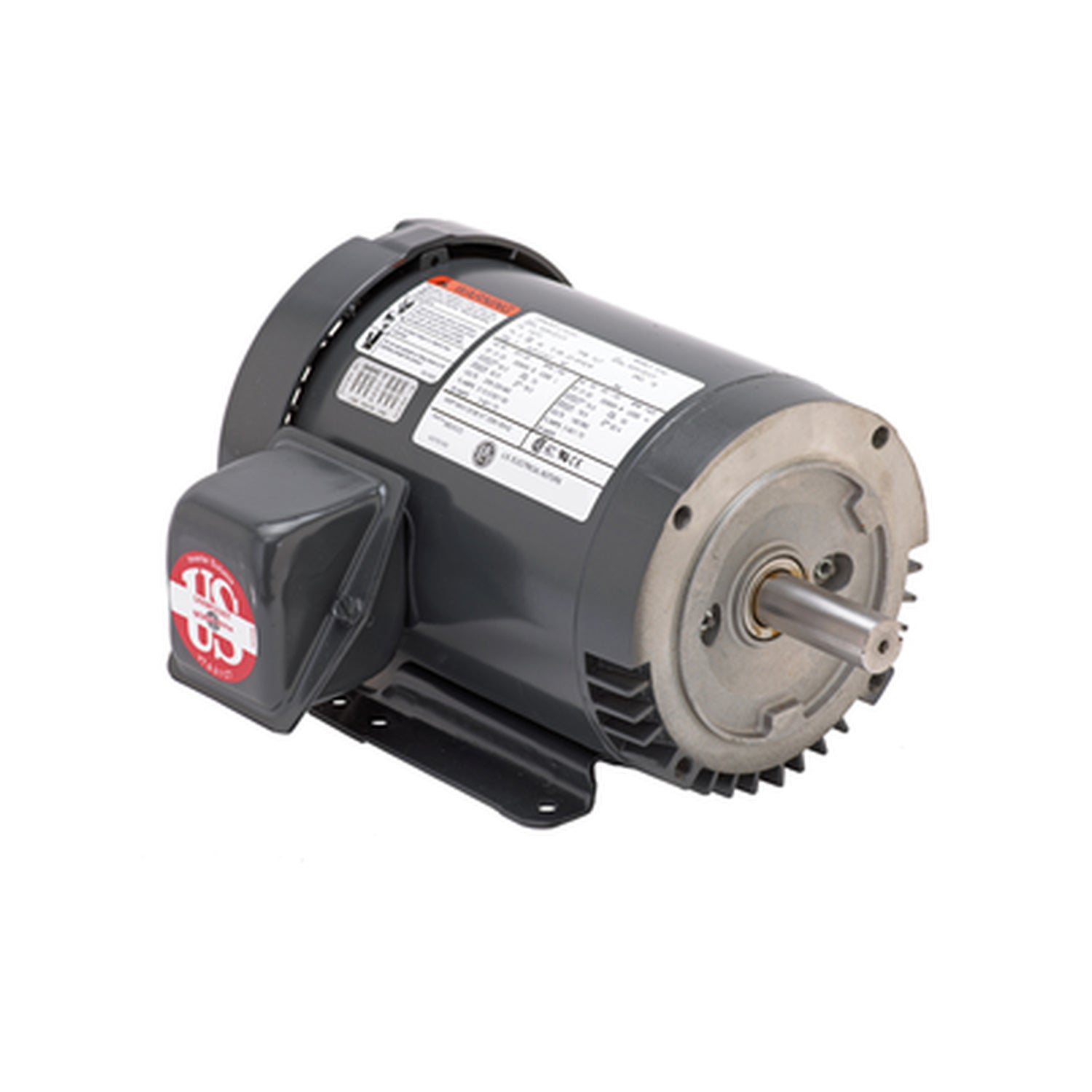

This general-purpose three-phase AC motor offers premium efficiency and dual-frequency, dual-voltage operation in a compact 56C frame with totally enclosed fan-cooled construction. It is foot-mounted and suitable for standard industrial applications requiring continuous duty.

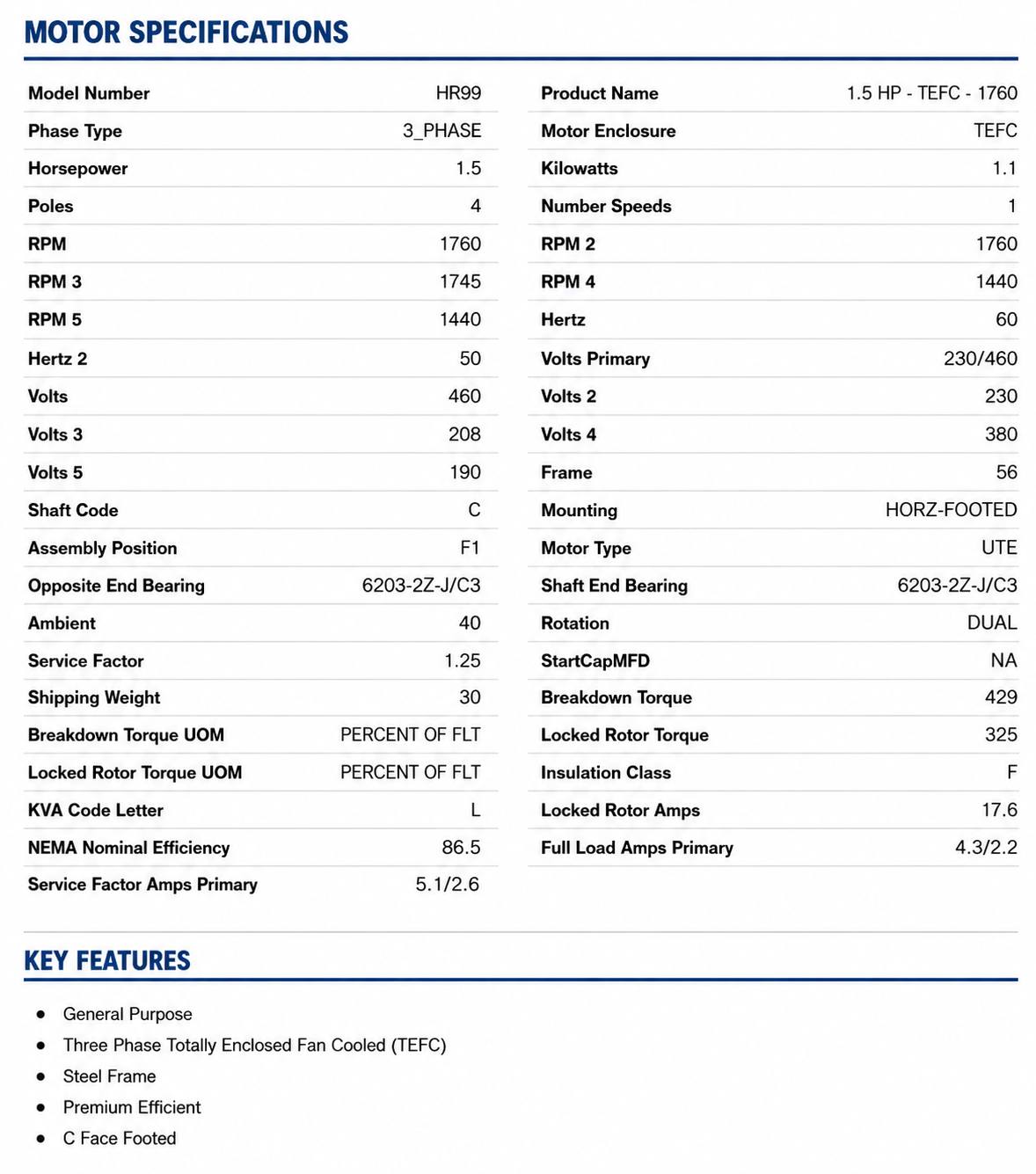

KEY FEATURES

• Model: U32P2DFC

• Product Type: Electric Motors

• Horsepower: 1.5 Hp (1.1 kW)

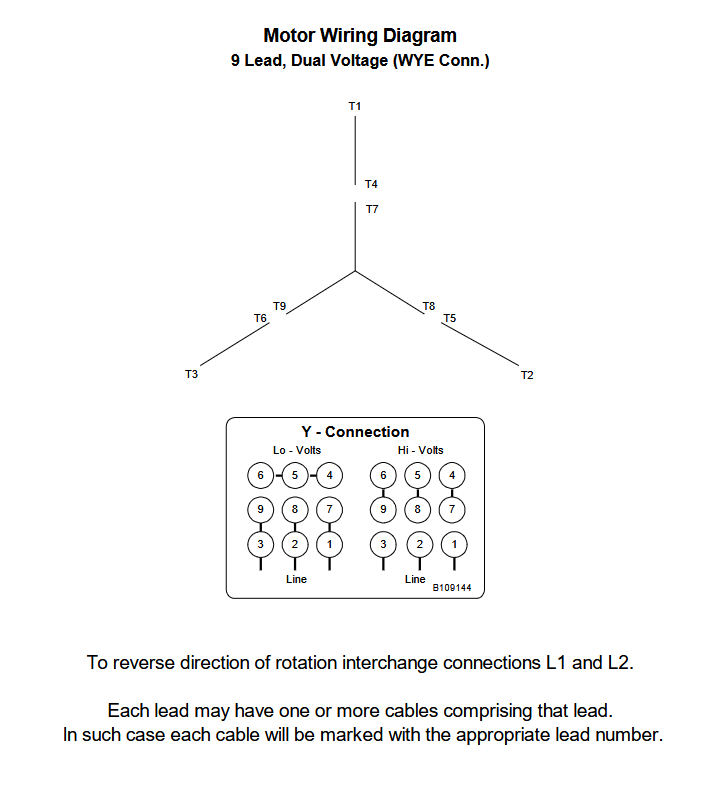

• Voltage: 230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1760 RPM @ 60 Hz / 1440 RPM @ 50 Hz

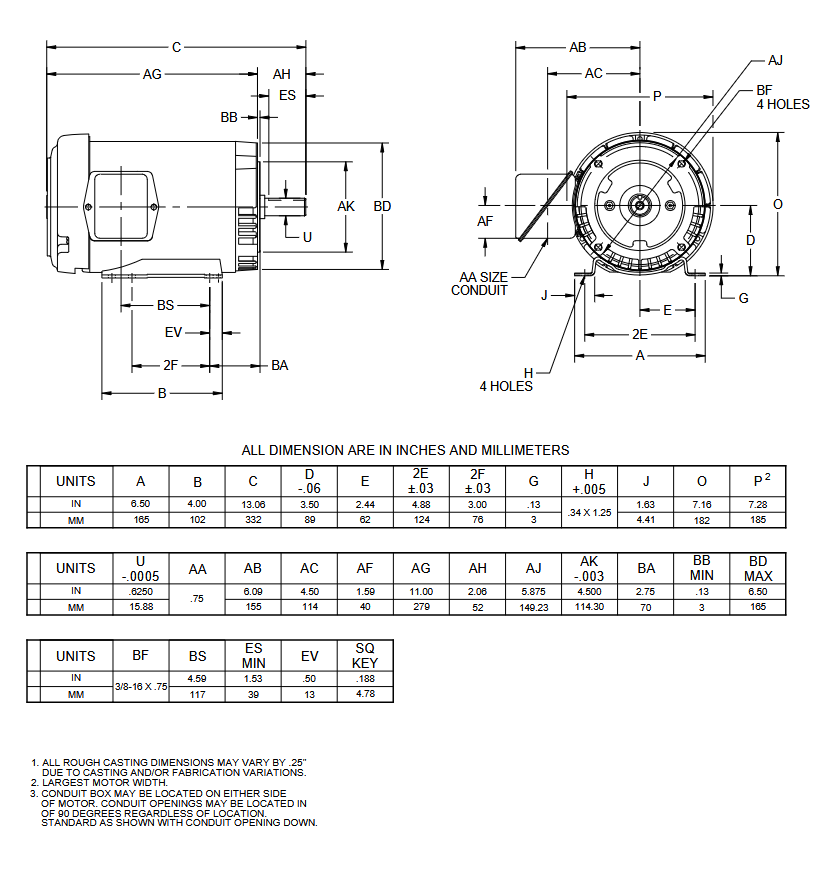

• Frame: 56C

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.25

• Efficiency: 86.5 % @ 60 Hz

• Insulation Class: F

• Design Code: NEMA Design B – KVA Code L

• Mounting: Horizontal – Footed (F1)

• Shaft: C‑face code, 5/8" (0.625 in) diameter

• Bearings: Ball Bearings (6203‑2Z‑J/C3 both ends)

• Rotation: Dual (reversible)

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Duty: Continuous

• Locked Rotor Amps: 17.6 % of full load

• Breakdown Torque: 429 % of full load

The motor’s dual-voltage and dual-frequency flexibility, combined with its TEFC enclosure and premium efficiency, make it a versatile choice for a range of industrial environments.
