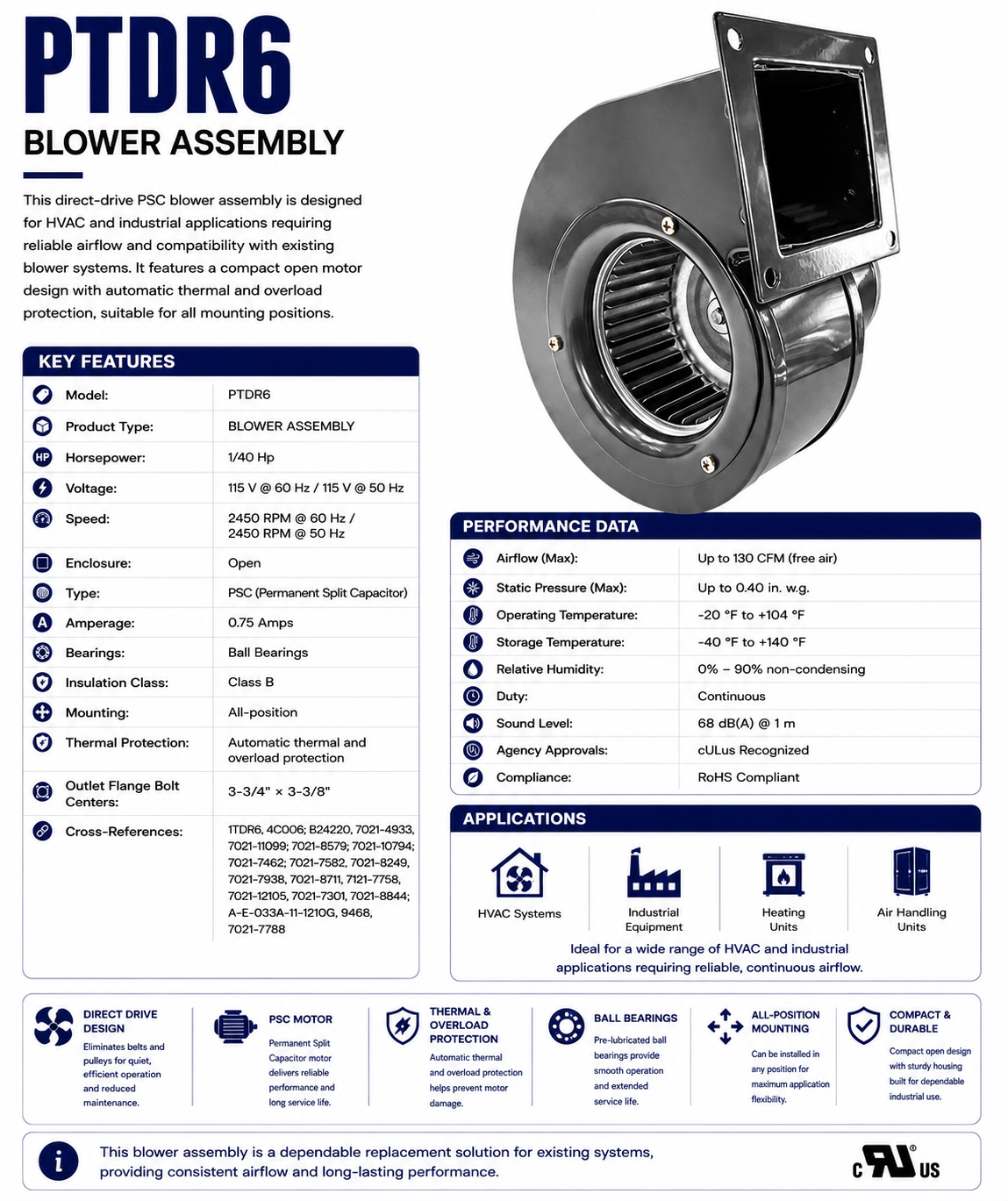

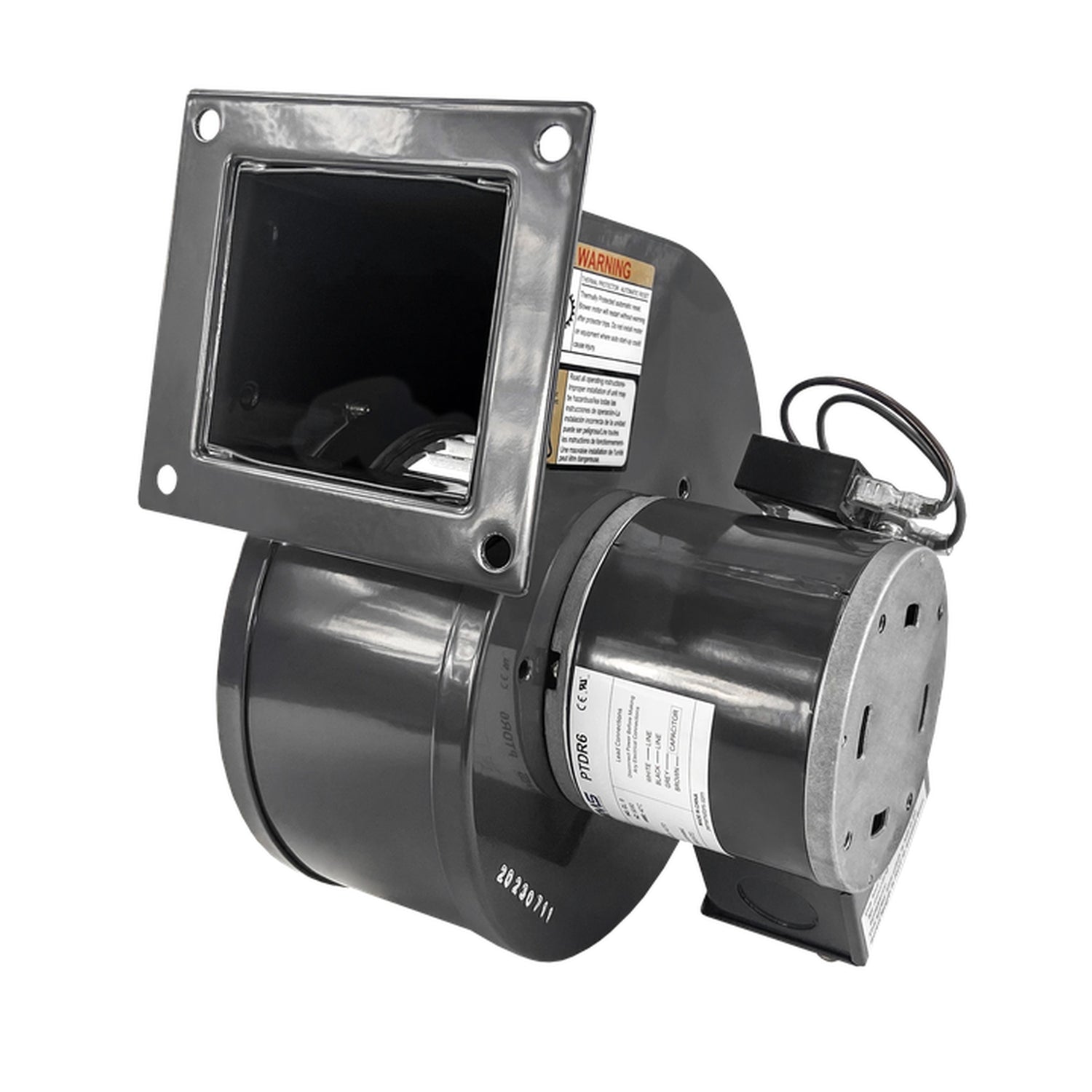

PTDR6, 1/40 Hp, 2450 RPM, 115 V, 1 Ph, PSC, Open, Frame ≈3.3‑in

This direct‑drive PSC blower assembly is designed for HVAC and industrial applications requiring reliable airflow and compatibility with existing blower systems. It features a compact open motor design with automatic thermal and overload protection, suitable for all mounting positions.

KEY FEATURES

• Model: PTDR6

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/40 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 2450 RPM @ 60 Hz / 2450 RPM @ 50 Hz

• Enclosure: Open

• Type: PSC (Permanent Split Capacitor)

• Amperage: 0.75 Amps

• Bearings: Ball Bearings

• Insulation Class: Class B

• Mounting: All‑position

• Thermal Protection: Automatic thermal and overload protection

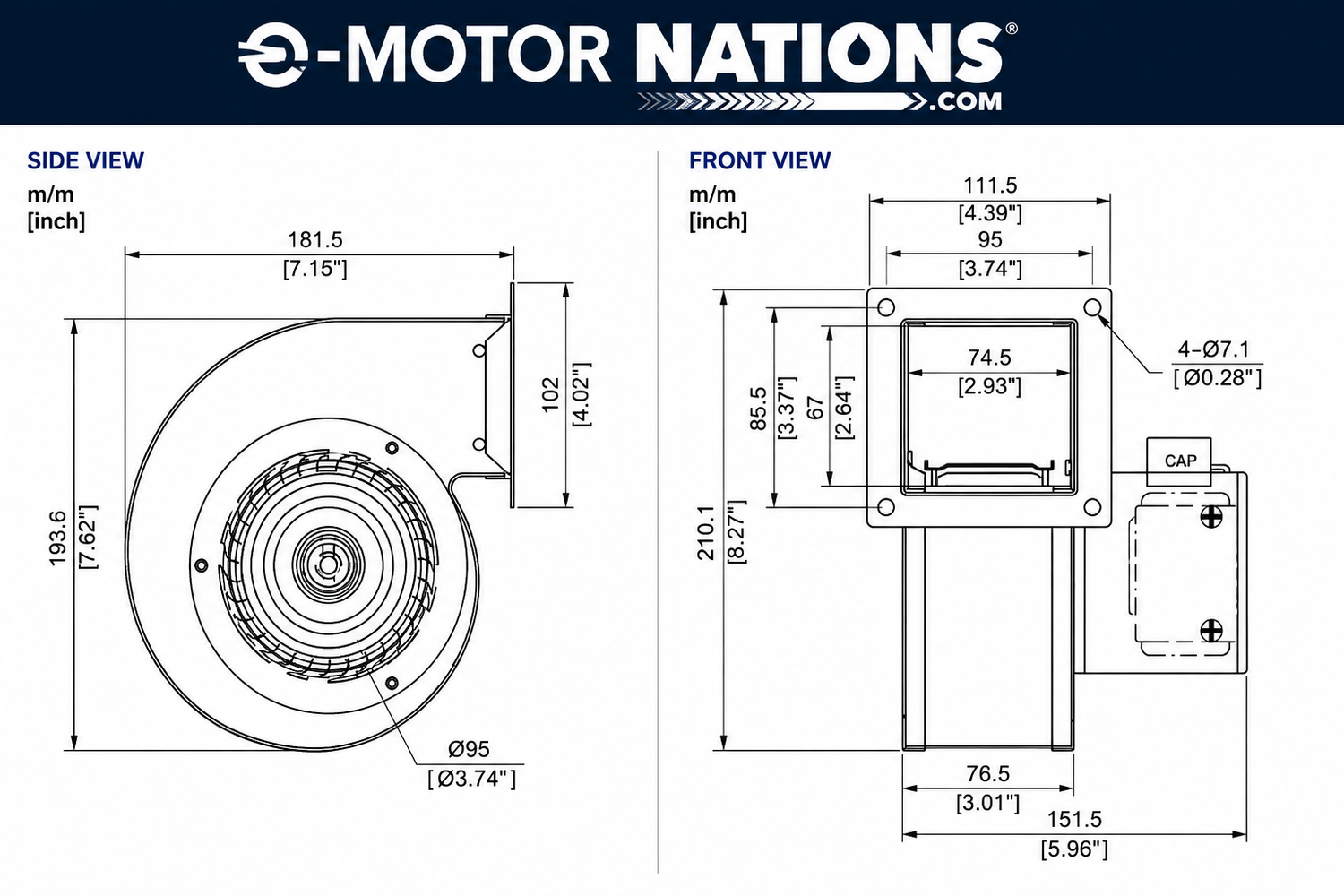

• Outlet Flange Bolt Centers: 3‑3/4" × 3‑3/8"

• Cross‑References: 1TDR6, 4C006; B24220, 7021‑4933, 7021‑11099; 7021‑8579; 7021‑10794; 7021‑7462; 7021‑7582, 7021‑8249, 7021‑7938, 7021‑8711, 7121‑7758, 7021‑12105, 7021‑7301, 7021‑8844; A‑E‑033A‑11‑1210G, 9468, 7021‑7788
