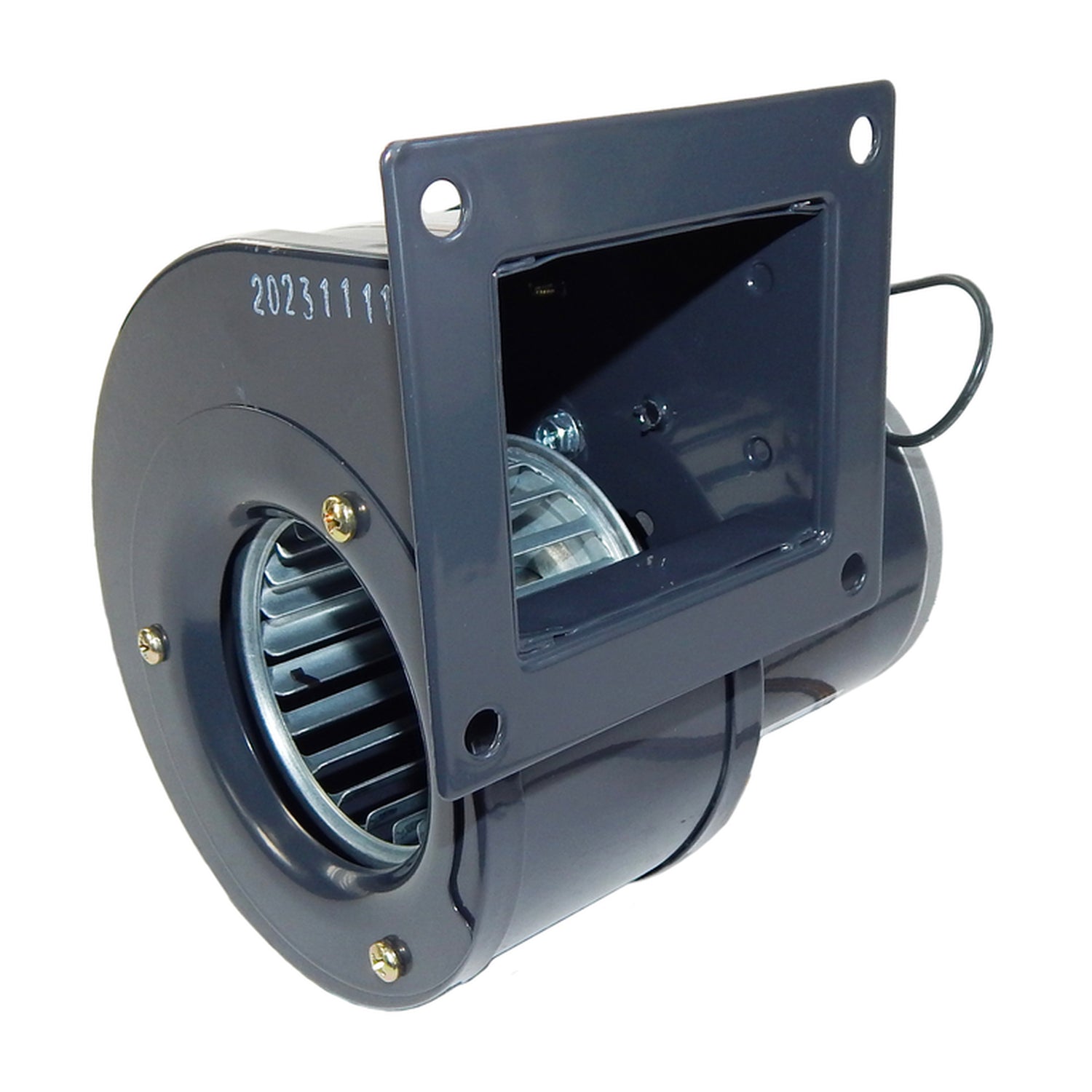

PTDP1, 0.01 Hp, 3020 RPM, 115 V, 1 Ph, PSC, Open Enclosure, Frame ~3.3"

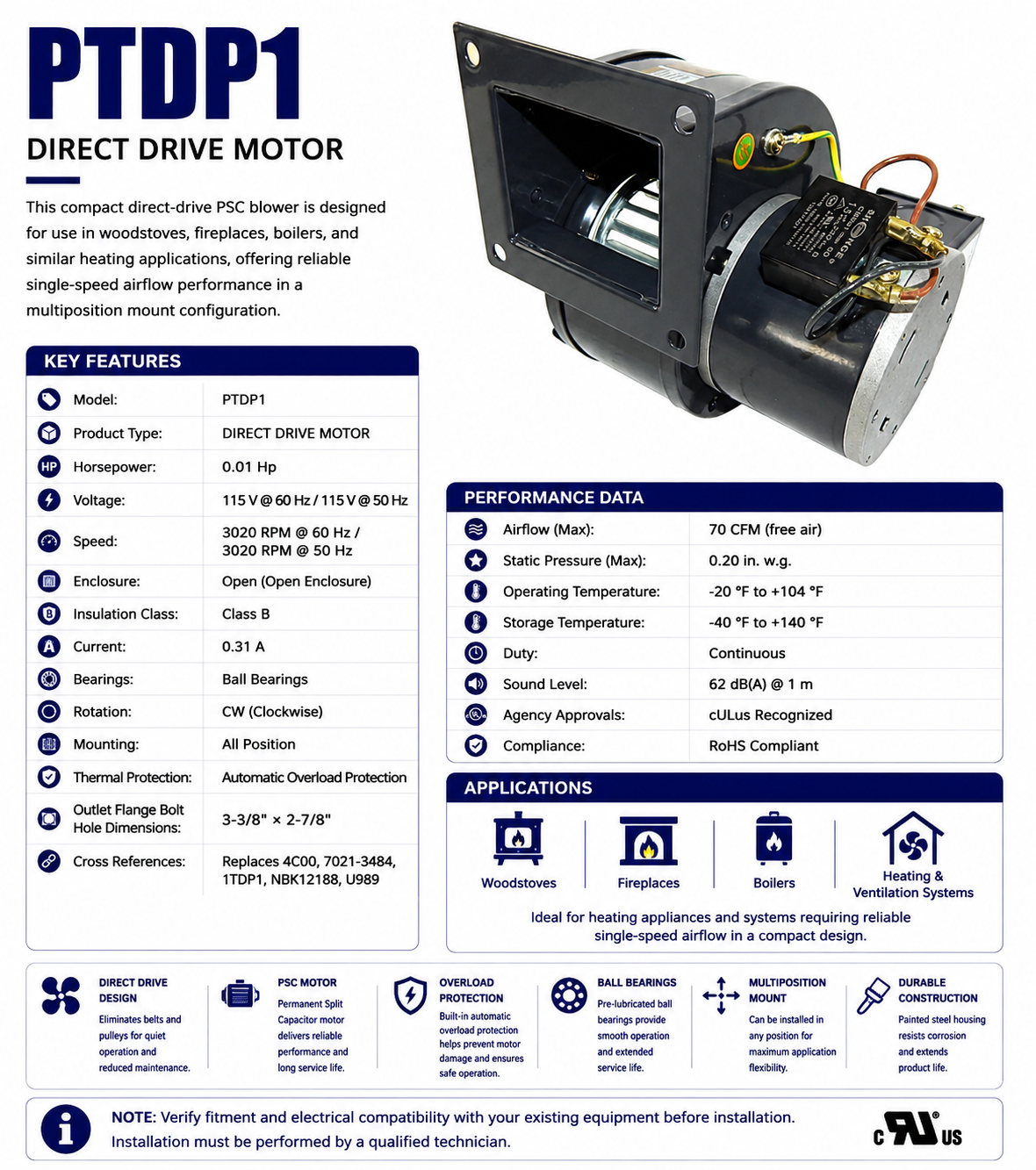

This compact direct‑drive PSC blower is designed for use in woodstoves, fireplaces, boilers, and similar heating applications, offering reliable single‑speed airflow performance in a multiposition mount configuration.

KEY FEATURES

• Model: PTDP1

• Product Type: DIRECT DRIVE MOTOR

• Horsepower: 1/100 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 3020 RPM @ 60 Hz / 3020 RPM @ 50 Hz

• Enclosure: Open (Open Enclosure)

• Insulation Class: Class B

• Current: 0.31 A

• Bearings: Ball Bearings

• Rotation: CW

• Mounting: All Position

• Thermal Protection: Automatic Overload Protection

• Cross References: Replaces 4C00, 7021‑3484, 1TDP1, NBK12188, U989

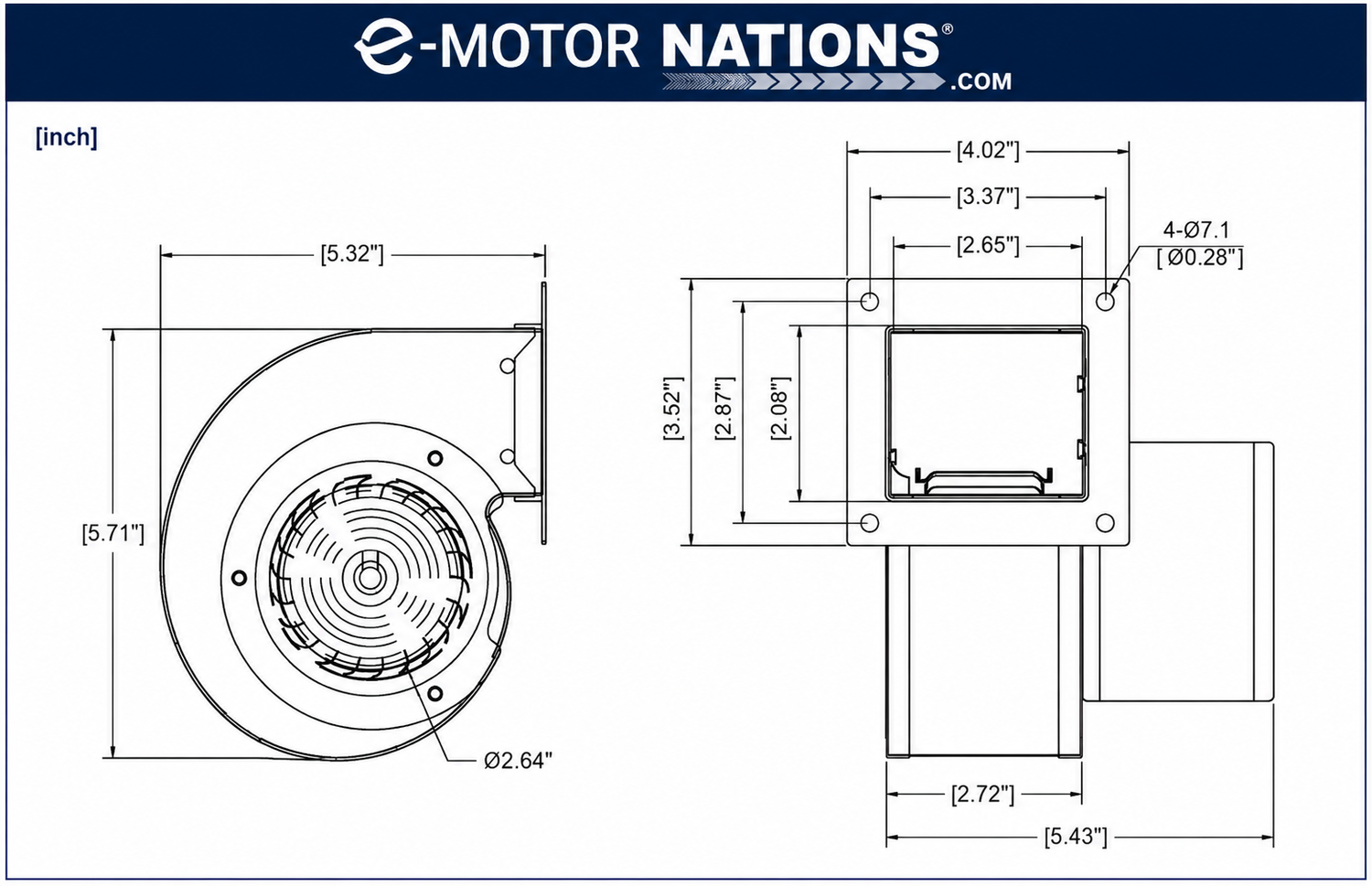

• Outlet Flange Bolt Hole Dimensions: 3‑3/8" × 2‑7/8"
