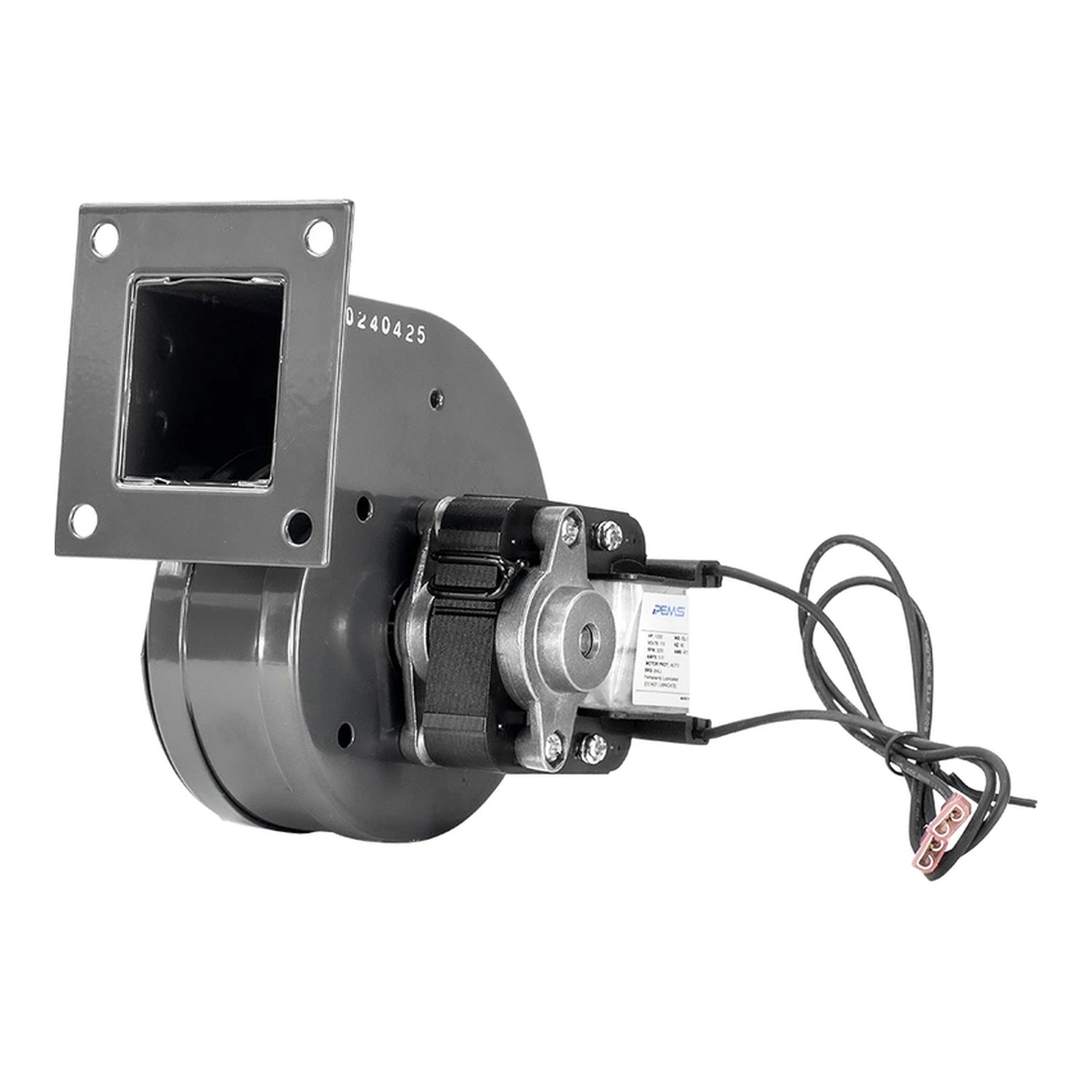

PTDN3, Centrifugal Blower, 1/200 Hp, 3 250 RPM, 115 V, 1 Ph, Open Enclosure, C‑Frame

This compact direct‑drive blower is designed for general HVAC and wood‑stove applications, providing reliable airflow with minimal noise and vibration. It features a shaded‑pole motor with automatic overload protection and all‑position mounting capability.

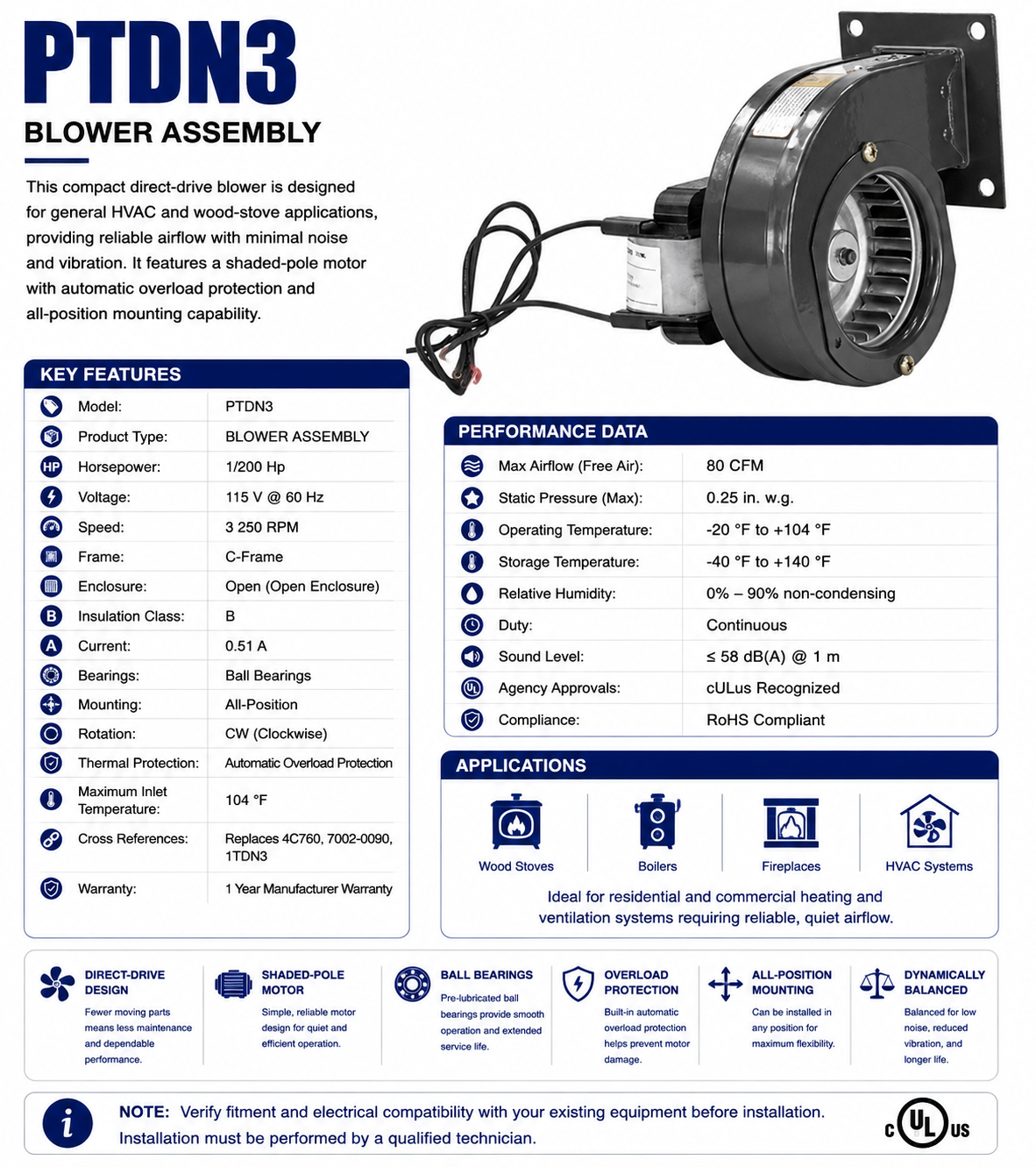

KEY FEATURES

• Model: PTDN3

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/200 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 3 250 RPM

• Frame: C‑Frame

• Enclosure: Open (Open Enclosure)

• Insulation Class: B

• Current: 0.51 A

• Bearings: Ball Bearings

• Mounting: All‑Position

• Rotation: CW

• Thermal Protection: Automatic Overload Protection

• Maximum Inlet Temperature: 104 °F

• Cross References: Replaces 4C760, 7002‑0090, 1TDN3

• Warranty: 1 Year Manufacturer Warranty

The blower’s shaded‑pole motor and dynamic balancing ensure quiet, efficient operation, while its compact, open‑enclosure design allows versatile installation in tight spaces.
