A-200VUS / PS‑200V‑CMS Shaft Seal, 5/8" Shaft, Viton
Description
Description

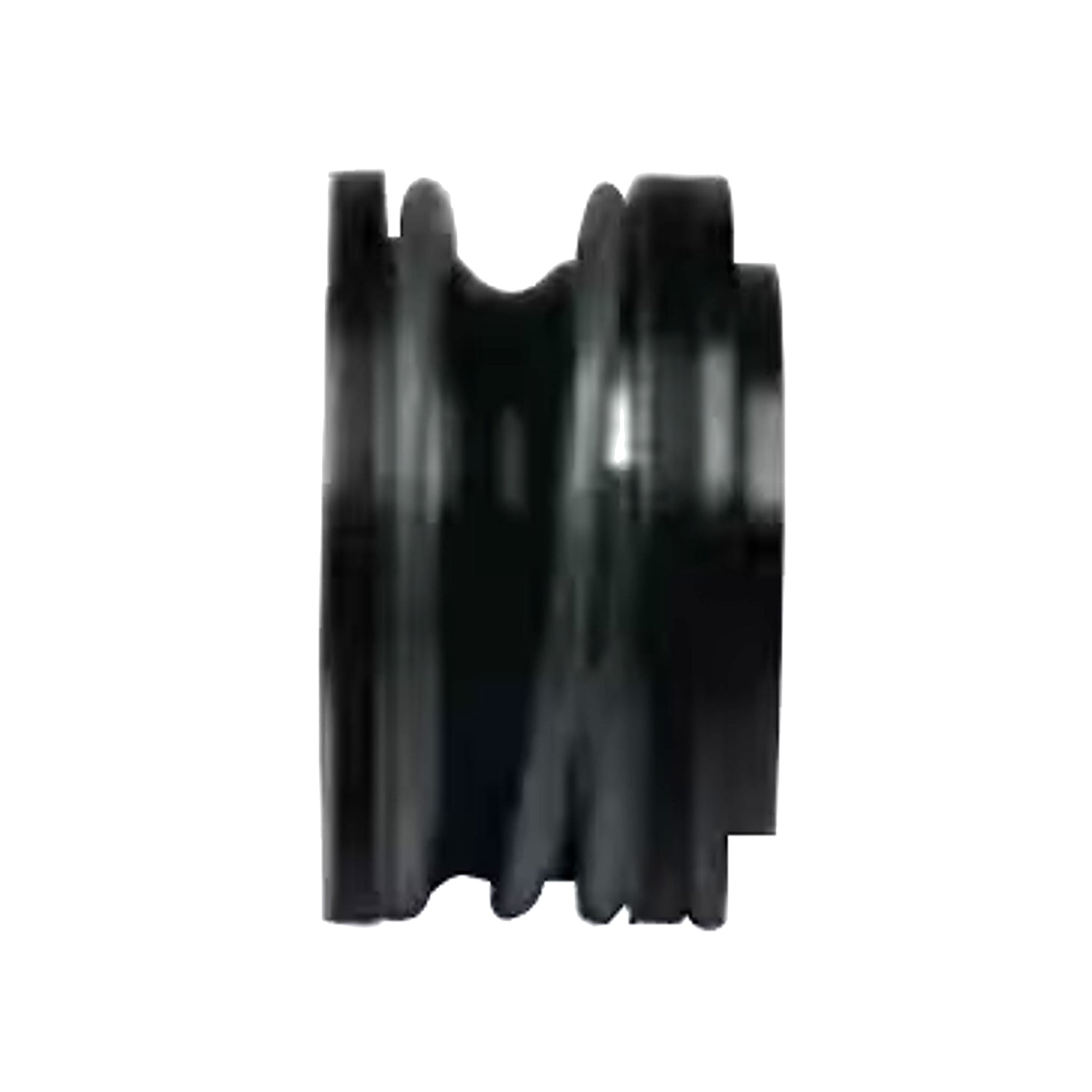

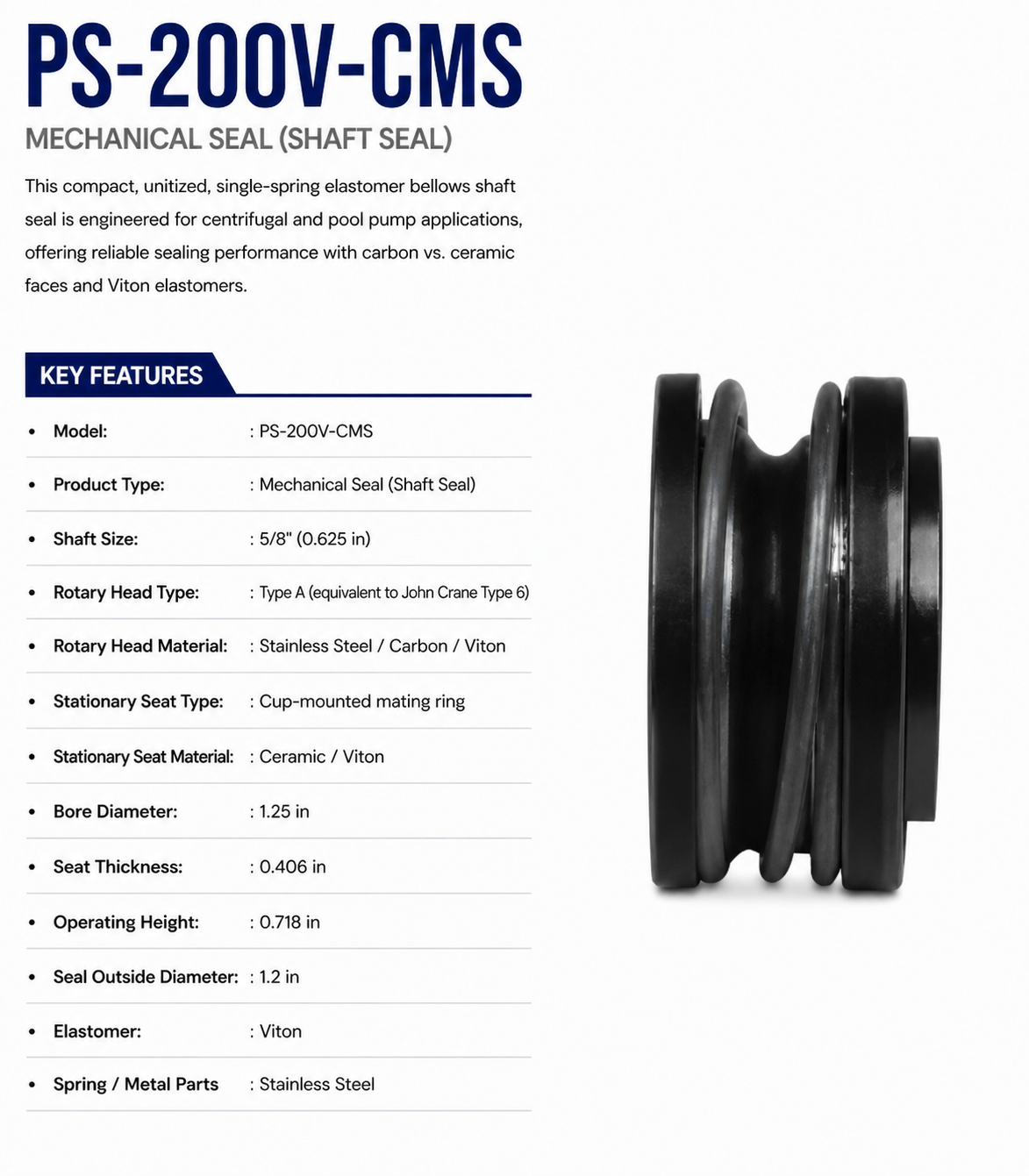

This compact, unitized, single‑spring elastomer bellows shaft seal is engineered for centrifugal and pool pump applications, offering reliable sealing performance with carbon vs. ceramic faces and Viton elastomers.
KEY FEATURES
• Model: PS‑200V‑CMS
• Product Type: Mechanical Seal (Shaft Seal)
• Shaft Size: 5/8" (0.625 in)
• Rotary Head Type: Type A (equivalent to John Crane Type 6)
• Rotary Head Material: Stainless Steel / Carbon / Viton
• Stationary Seat Type: Cup‑mounted mating ring
• Stationary Seat Material: Ceramic / Viton
• Bore Diameter: 1.25 in
• Seat Thickness: 0.406 in
• Operating Height: 0.718 in
• Seal Outside Diameter: 1.2 in
• Elastomer: Viton
• Spring / Metal Parts: Stainless Steel
