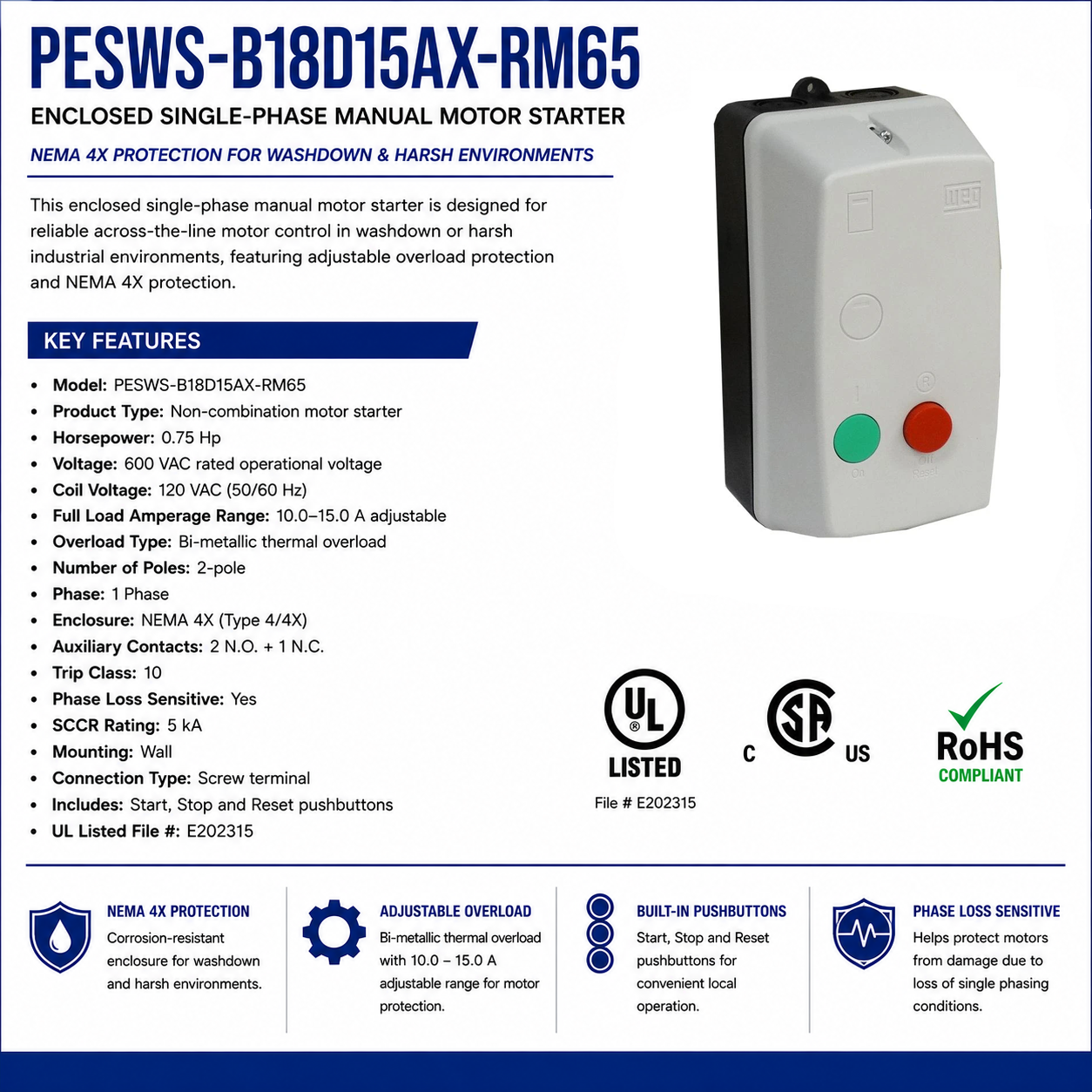

PESWS-B18D15AX-RM65, 0.75Hp, 10–15 A Adjustable, 120 VAC Coil, 600 VAC Rated, 1 Ph, NEMA 4X Enclosure

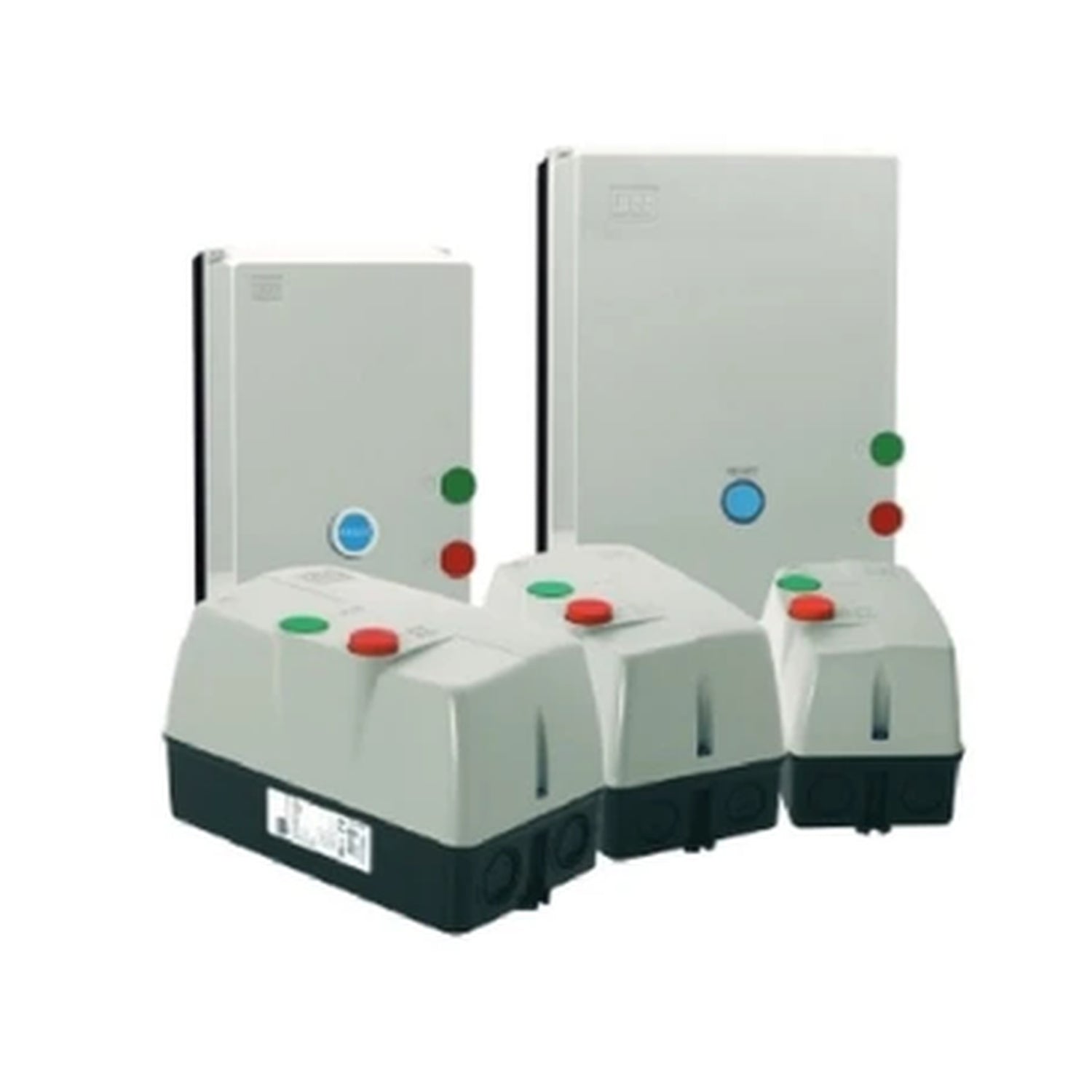

This enclosed single‑phase manual motor starter is designed for reliable across‑the‑line motor control in washdown or harsh industrial environments, featuring adjustable overload protection and NEMA 4X protection.

KEY FEATURES

• Model: PESWS‑B18D15AX‑RM65

• Product Type: Non‑combination motor starter

• Horsepower: 0.75 Hp

• Voltage: 600 VAC rated operational voltage

• Coil Voltage: 120 VAC (50/60 Hz)

• Full Load Amperage Range: 10.0–15.0 A adjustable

• Overload Type: Bi‑metallic thermal overload

• Number of Poles: 2‑pole

• Phase: 1 Phase

• Enclosure: NEMA 4X (Type 4/4X)

• Auxiliary Contacts: 2 N.O. + 1 N.C.

• Trip Class: 10

• Phase Loss Sensitive: Yes

• SCCR Rating: 5 kA

• Mounting: Wall

• Connection Type: Screw terminal

• Includes: Start, Stop and Reset pushbuttons

• UL Listed File #: E202315
