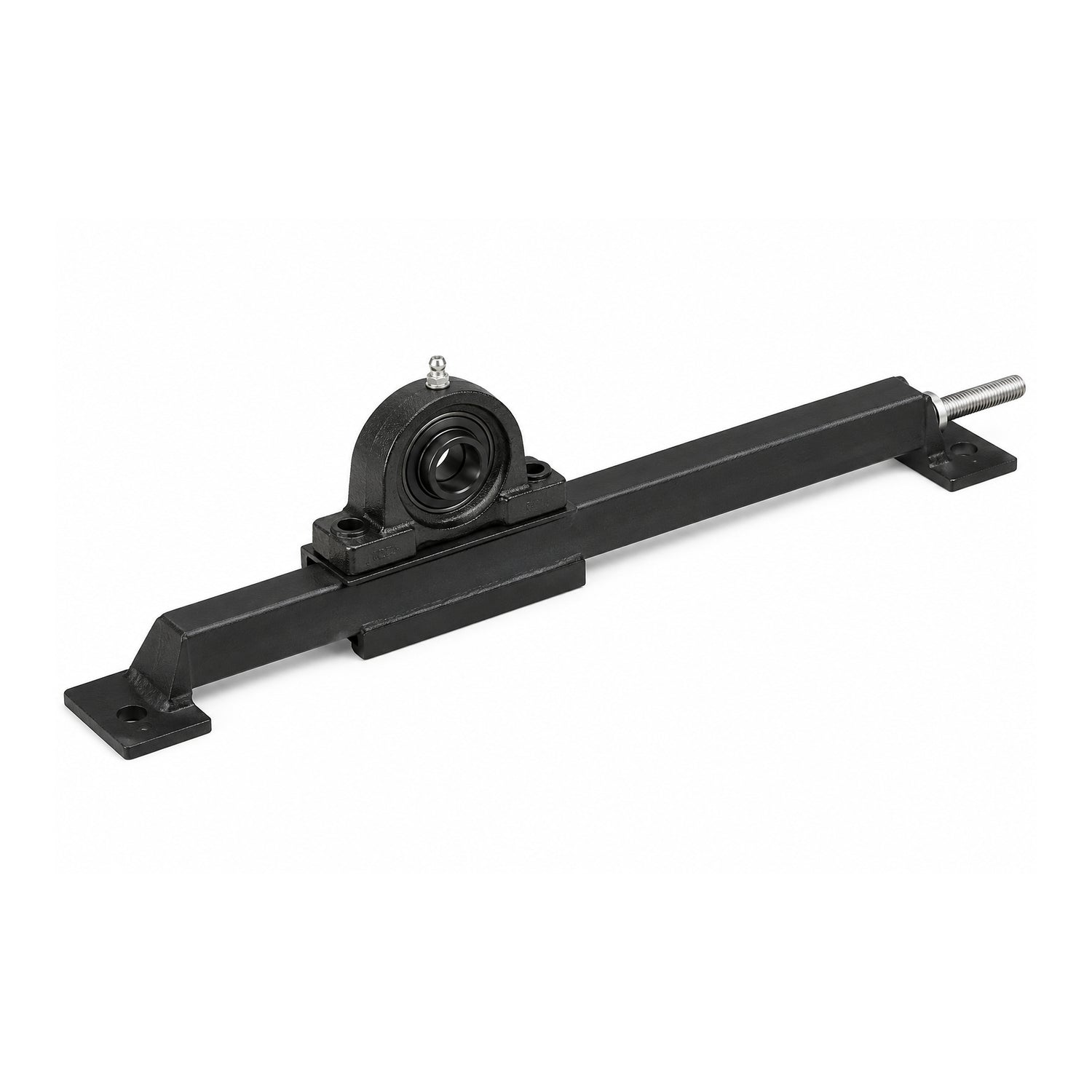

NPG‑35‑18, Pillow Block Take‑Up Unit, Bore 2‑3/16"

This top-mounted protected screw take-up unit integrates a standard duty pillow block bearing into a heavy-gauge cast iron housing with setscrew locking, designed for conveyor shaft alignment and belt tensioning applications. The pillow block bearing is included with the take-up rail assembly.

KEY FEATURES

• Model: NPG-35-18

• Product Type: Protected Screw Take-Up Unit

• Bore Diameter: 2-3/16" (55.56 mm)

• Housing Material: Cast Iron

• Rolling Elements: Ball

• Locking Type: Setscrew

• Seal Type: Felt

• Optional Locking Collar: SKWEZLOC

• Self-Alignment Capability: ±2°

• Temperature Range: –20 °F to 220 °F

• Travel (T): 18 in (457.2 mm)

• Insert Number: 2-23

• Housing Assembly Included: NP-35

• Pillow Block Included: Pillow block bearing is supplied with the take-up rail assembly

The unit’s robust design with integrated take-up mechanism, included pillow block bearing, and durable cast iron housing makes it ideal for applications requiring precise shaft alignment and tension adjustment.
