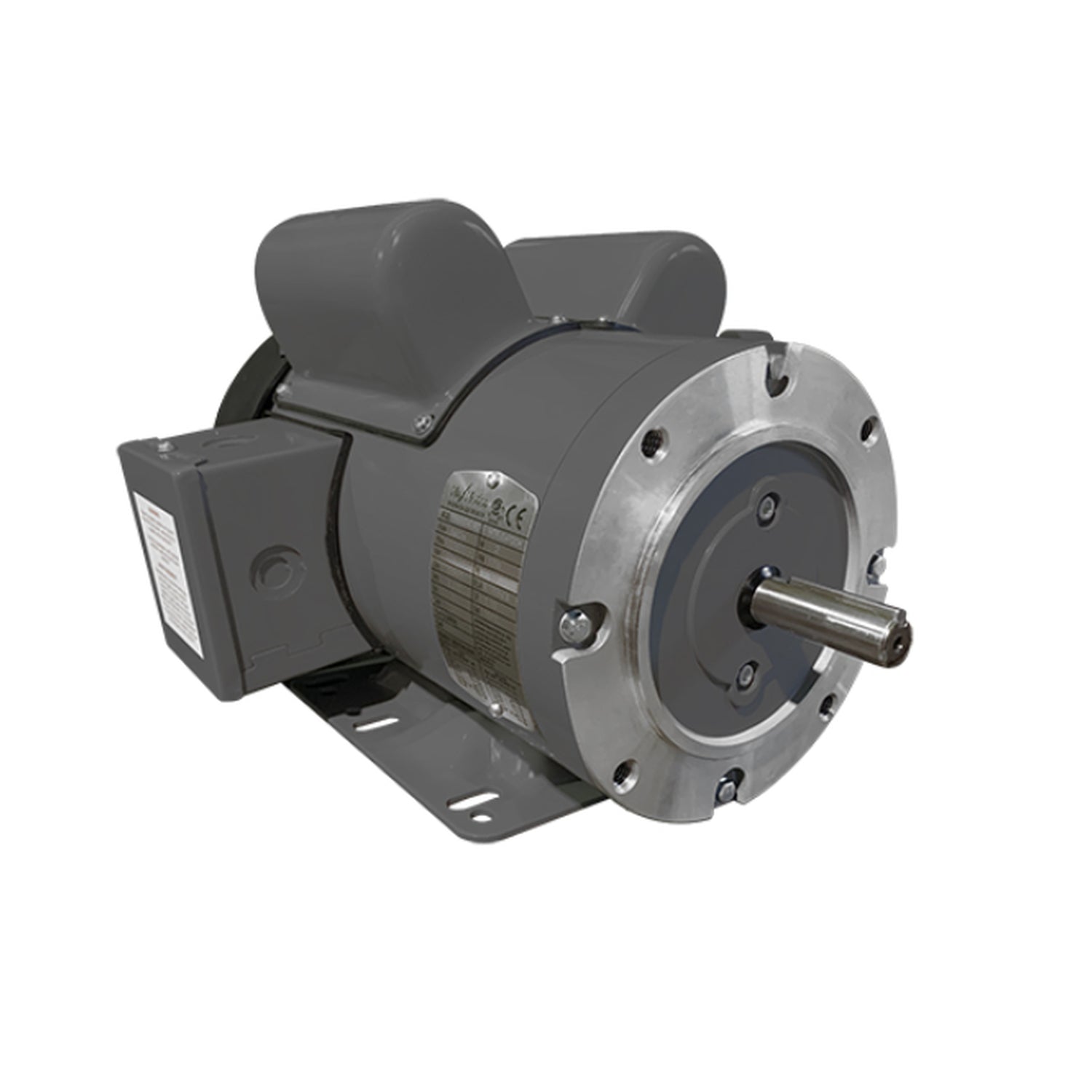

MTR‑122FDCH, 0.5Hp, 3520RPM, 115/208‑230V, 1Ph, 60Hz, TEFC, Frame 56C

This single‑phase general‑purpose motor is designed for farm duty and general industrial applications, offering capacitor start/run operation in a compact 56C frame with totally enclosed fan‑cooled construction.

KEY FEATURES

• Model: MTR‑122FDCH

• Product Type: FARM DUTY

• Horsepower: 0.5 Hp (0.37 kW)

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 3520 RPM @ 60 Hz

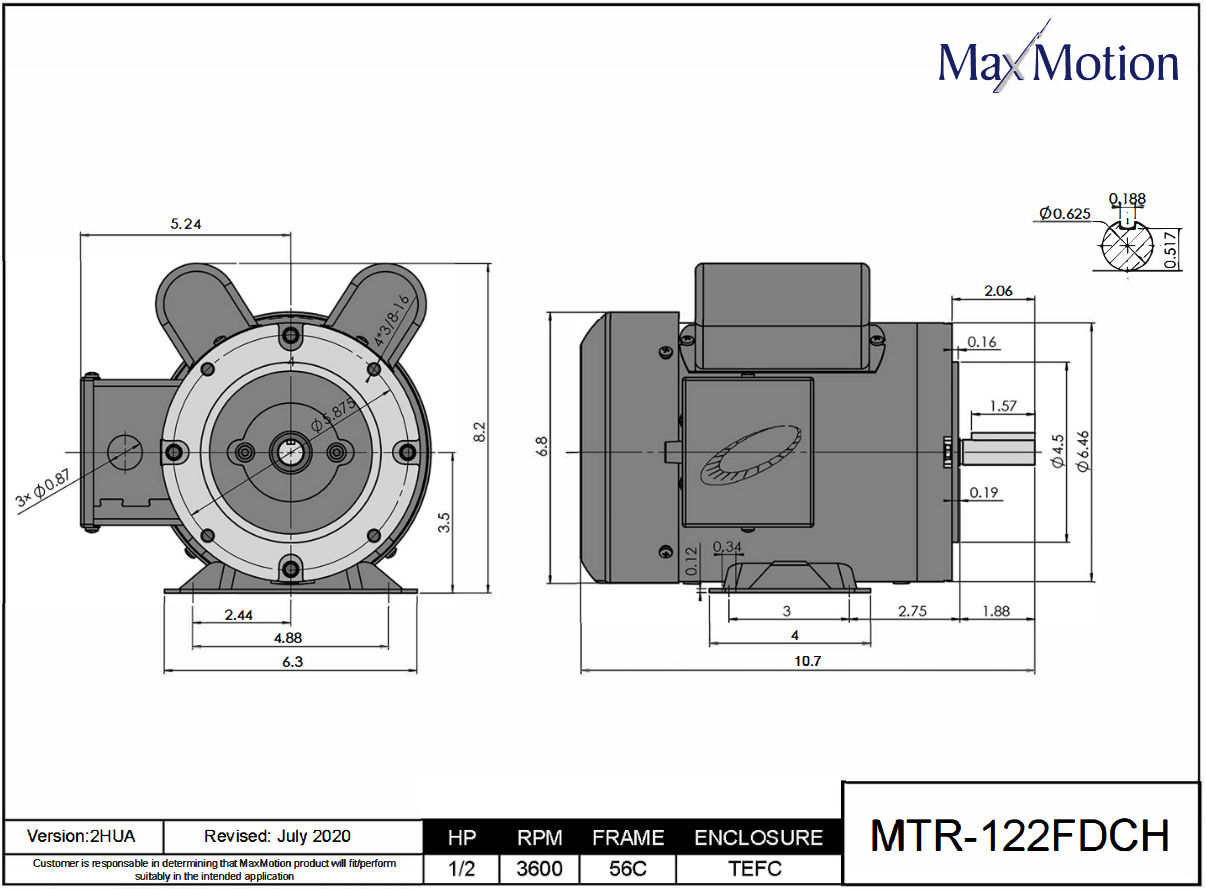

• Frame: 56C

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 71.3%

• Power Factor: 0.91

• Current (Full Load): 5.03 A @ 115 V; 2.78–2.52 A @ 208‑230 V

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: Manual Thermal Overload

• Design Code: B – KVA Code L

• Mounting: C‑Face / Removable Base, C‑Face / Rigid, C‑Face / Round Body

• Frame Material: Rolled Steel

• Rotation: Reversible

• Number of Speeds: 1

• IP Code: IP55

• Certifications: CSAus & CSA Certified

• Ambient Rating: 40 °C

• Bearings: Ball Bearings (6205 DE & 6203 ODE)
