MPW40-3-D016, Manual Motor Protector, 40A, 1.0-1.6A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

MPW40-3-D016,  Manual Motor Protector, 40A, 1.0-1.6A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

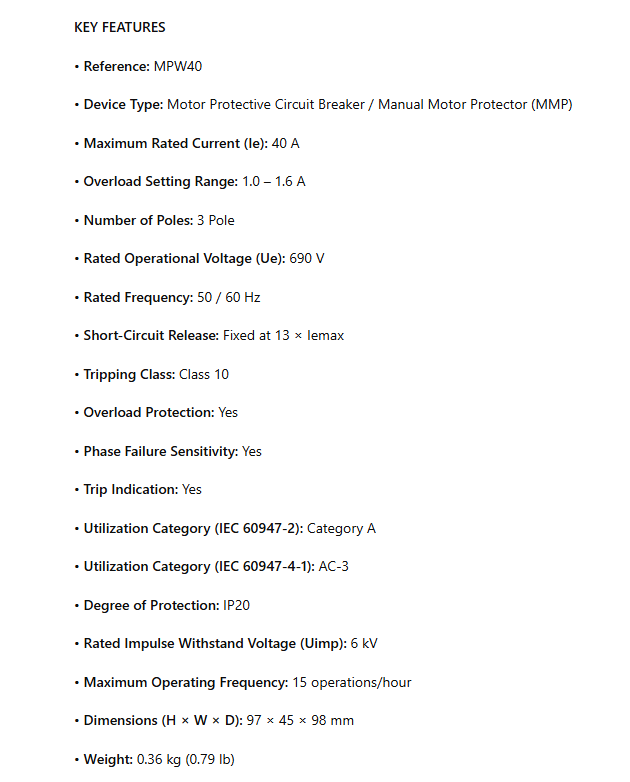

KEY FEATURES

• Reference: MPW40

• Device Type: Motor Protective Circuit Breaker / Manual Motor Protector (MMP)

• Maximum Rated Current (Ie): 40 A

• Overload Setting Range: 1.0 – 1.6 A

• Number of Poles: 3 Pole

• Rated Operational Voltage (Ue): 690 V

• Rated Frequency: 50 / 60 Hz

• Short-Circuit Release: Fixed at 13 × Iemax

• Tripping Class: Class 10

• Overload Protection: Yes

• Phase Failure Sensitivity: Yes

• Trip Indication: Yes

• Utilization Category (IEC 60947-2): Category A

• Utilization Category (IEC 60947-4-1): AC-3

• Degree of Protection: IP20

• Rated Impulse Withstand Voltage (Uimp): 6 kV

• Maximum Operating Frequency: 15 operations/hour

• Dimensions (H × W × D): 97 × 45 × 98 mm

• Weight: 0.36 kg (0.79 lb)
