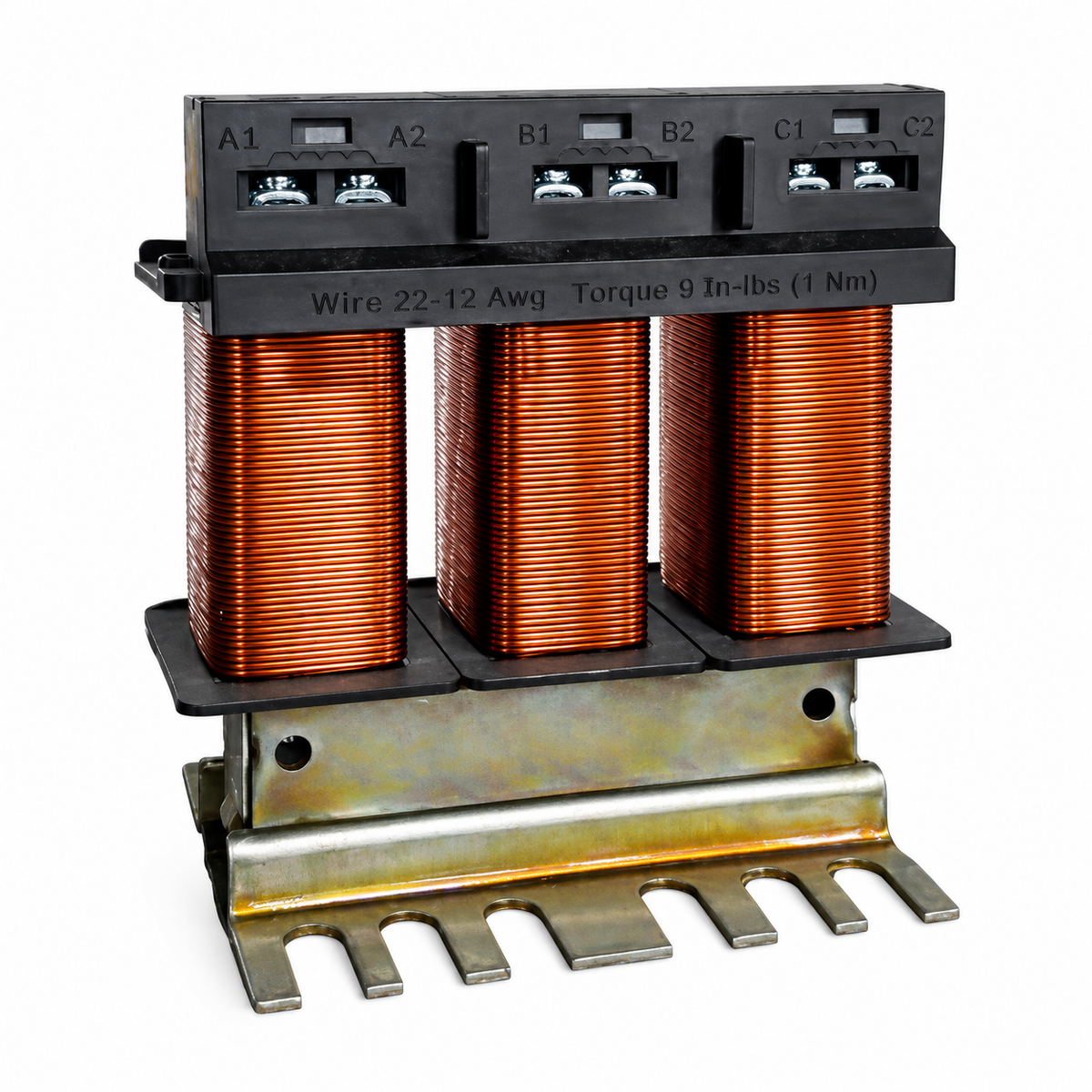

KDRAA43H2, 2Hp, 575/600 V, 3 Ph, Open Enclosure, High‑Z (5 %) Line/Load Reactor

This three‑phase high‑impedance (5 %) line/load reactor is designed for use with variable frequency drives and other sensitive equipment, providing harmonic mitigation and protection against electrical disturbances in industrial power systems.

KEY FEATURES

• Model: KDRAA43H2

• Product Type: Input line/load reactor

• Horsepower: 2 Hp

• Voltage: 575/600 V – 3 Phase

• Impedance: 5 % (High‑Z)

• Maximum Output Current: 3.4 A

• Nominal Motor Amps: 2.7 A

• Watts Loss: approximately 24 W

• Inductance: approximately 17,900 µH

• Enclosure: Open

• Phase: 3

• Frequency: 50/60 Hz

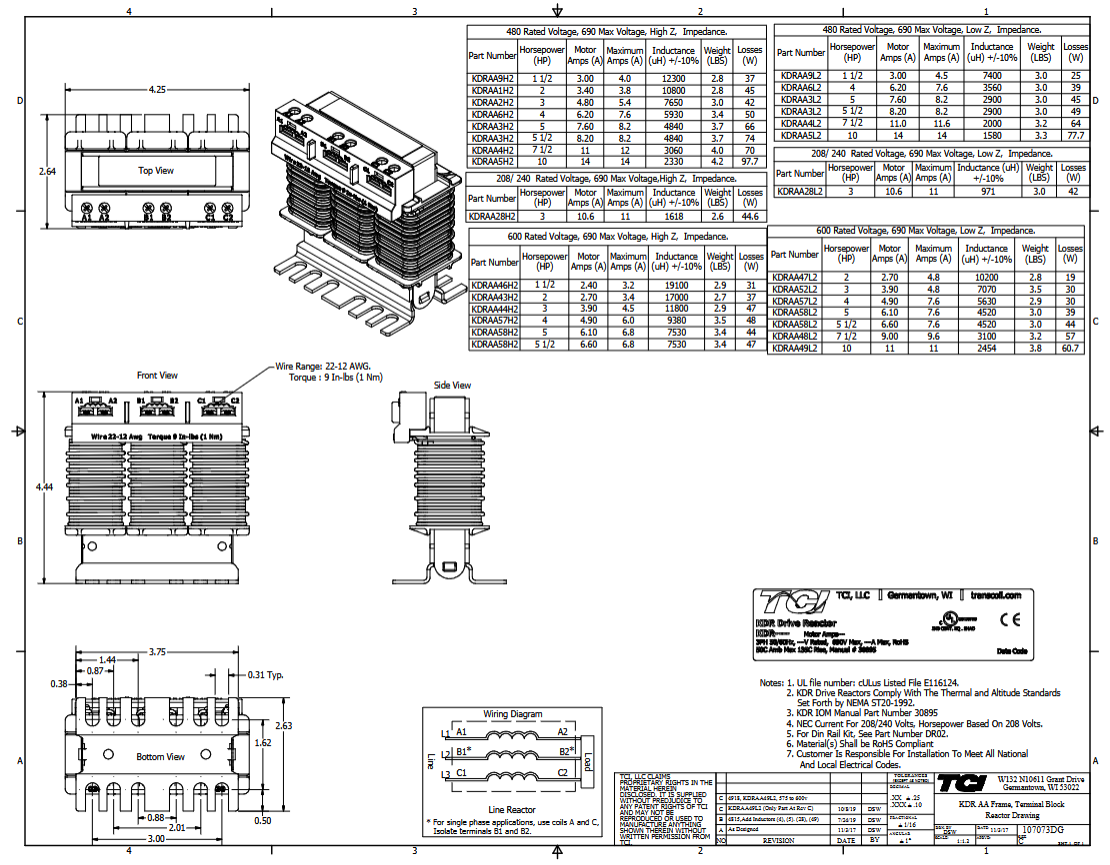

• Dimensions (H × W × D): 4.44 in × 4.25 in × 2.64 in

• Weight: approximately 2.7 lbs

• Certifications: UL Listed
