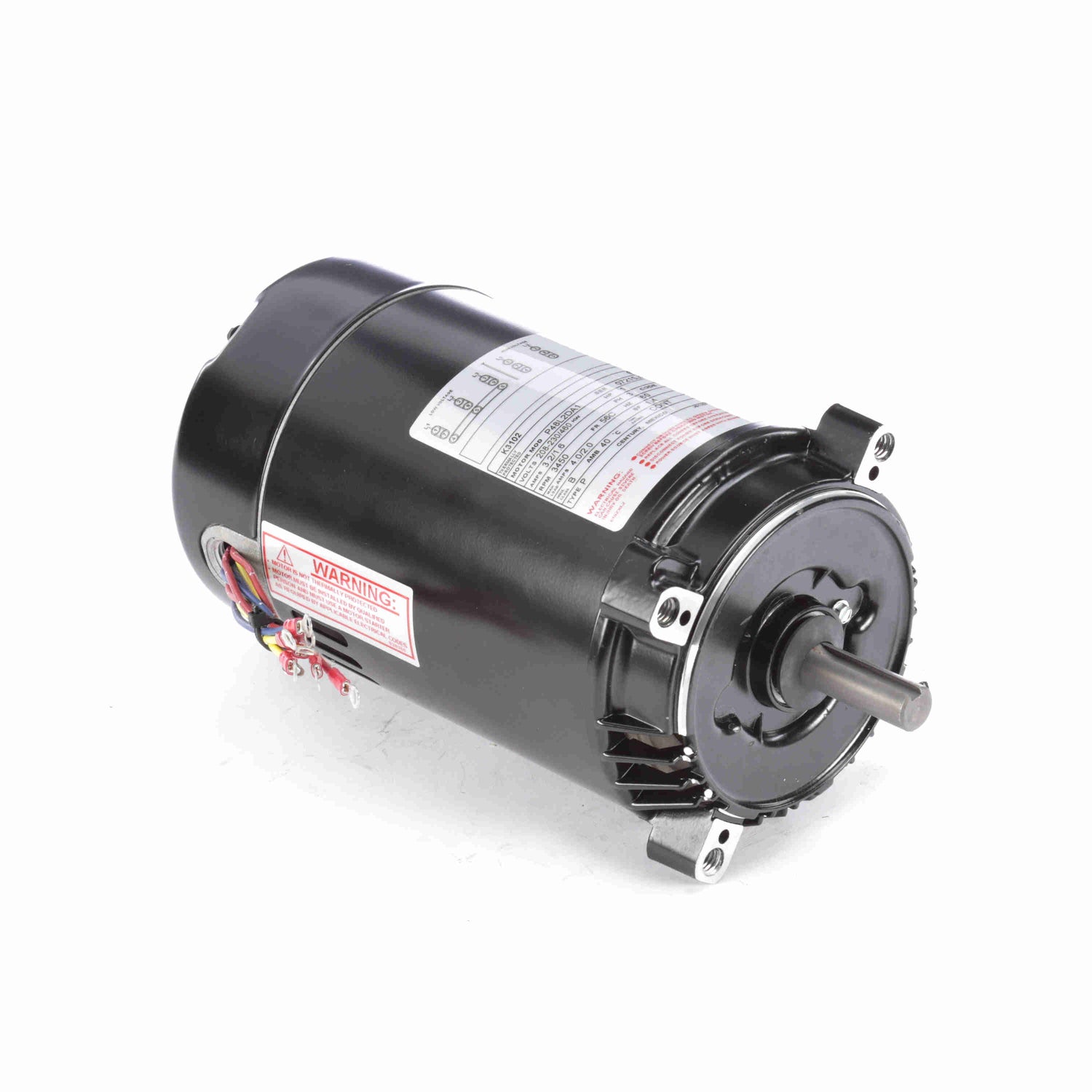

K3102, 1Hp, 3450 RPM, 208‑230/460 V, 3 Ph, 60 Hz, Open Drip Proof, Frame 56C

This general-purpose three-phase pool pump motor is designed for continuous-duty applications, offering multi‑voltage operation and a compact C‑face 56C frame with open drip‑proof construction.

KEY FEATURES

• Model: K3102

• Product Type: POOL PUMP MOTOR

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 208‑230/460 V @ 60 Hz – 3 Phase

• Speed: 3450 RPM @ 60 Hz

• Frame: 56C

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.4

• Current: 4.0/2.0 A

• Duty: Continuous

• Insulation Class: B

• Ambient Rating: 40 °C

• Bearings: Ball Bearings

• Shaft: Stainless Steel Threaded Shaft

• Mounting: C‑Face

• Rotation: Reversible

• Special Feature: Internal Junction Box

This motor’s multi‑voltage capability and compact C‑face design make it well suited for retrofit and replacement applications in pool and spa systems.
