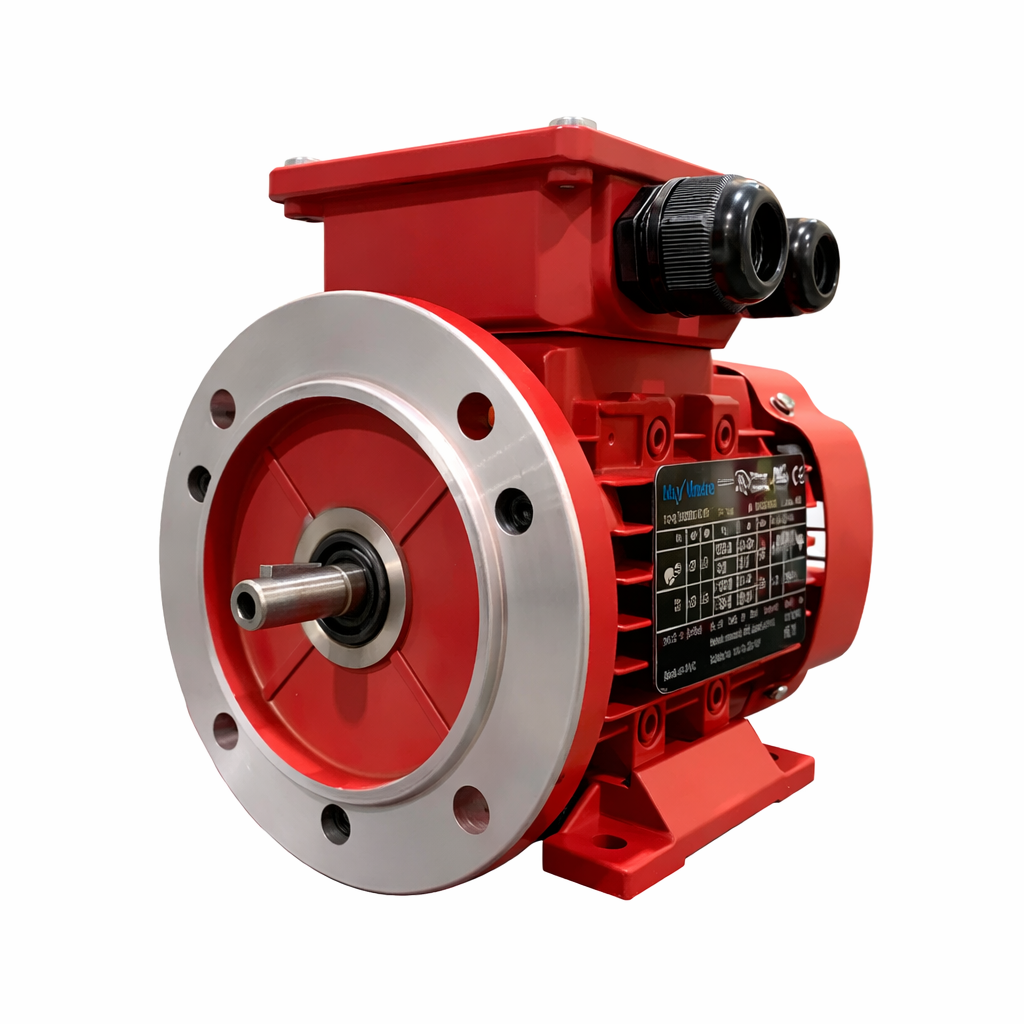

IJA290L‑2‑24‑B35, 3Hp, 3474 RPM, 208‑230/460 V, 3‑Phase, 60 Hz, TEFC, Frame 90L, IMB35

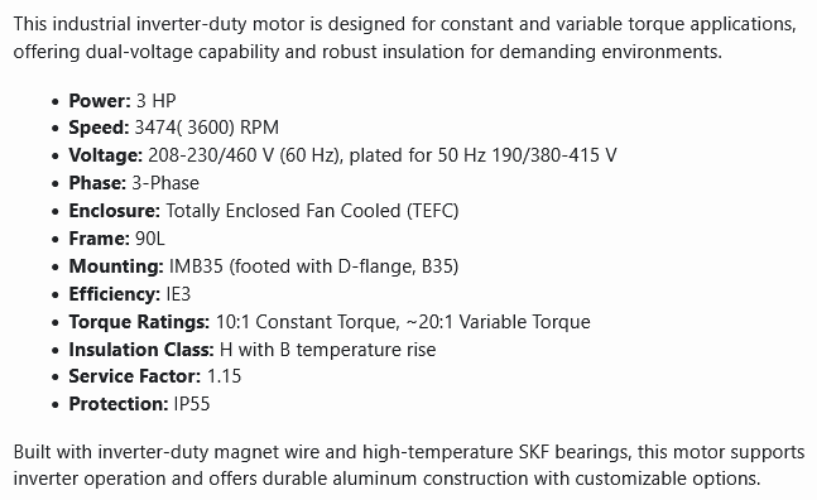

This industrial inverter‑duty motor is designed for constant and variable torque applications, offering dual‑voltage capability and robust insulation for demanding environments.

• Power: 3 HP
• Speed: 3474( 3600) RPM
• Voltage: 208‑230/460 V (60 Hz), plated for 50 Hz 190/380‑415 V
• Phase: 3‑Phase
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

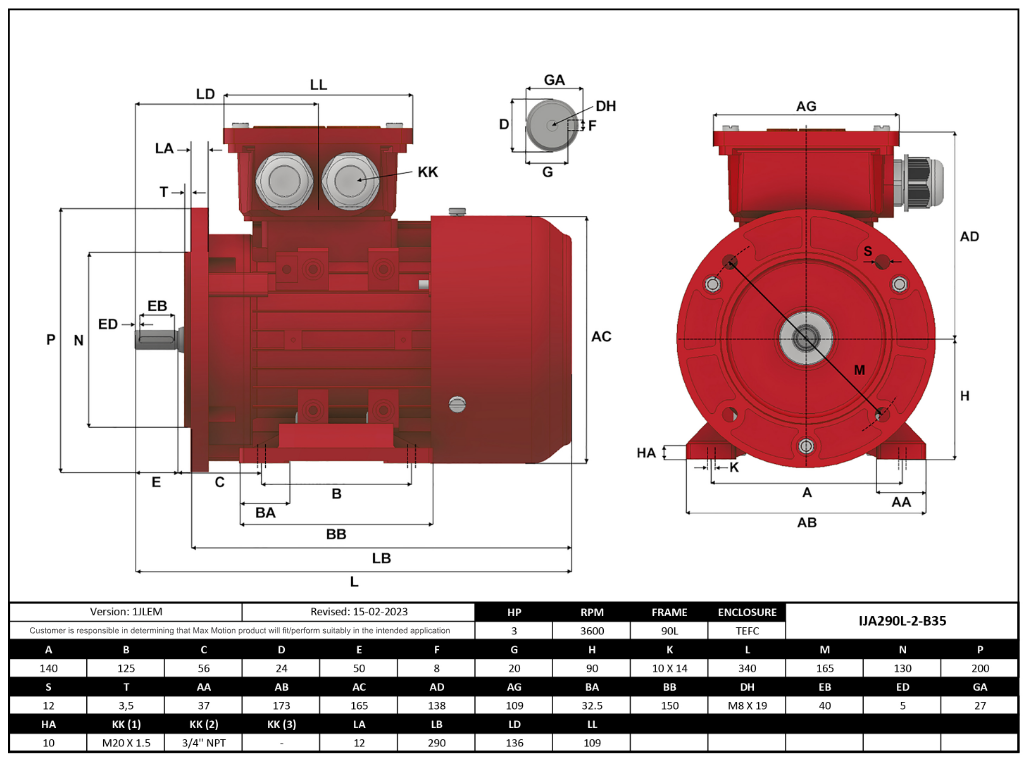

• Frame: 90L
• Mounting: IMB35 (footed with D‑flange, B35)
• Efficiency: IE3
• Torque Ratings: 10:1 Constant Torque, ~20:1 Variable Torque
• Insulation Class: H with B temperature rise
• Service Factor: 1.15
• Protection: IP55

Built with inverter‑duty magnet wire and high‑temperature SKF bearings, this motor supports inverter operation and offers durable aluminum construction with customizable options.
