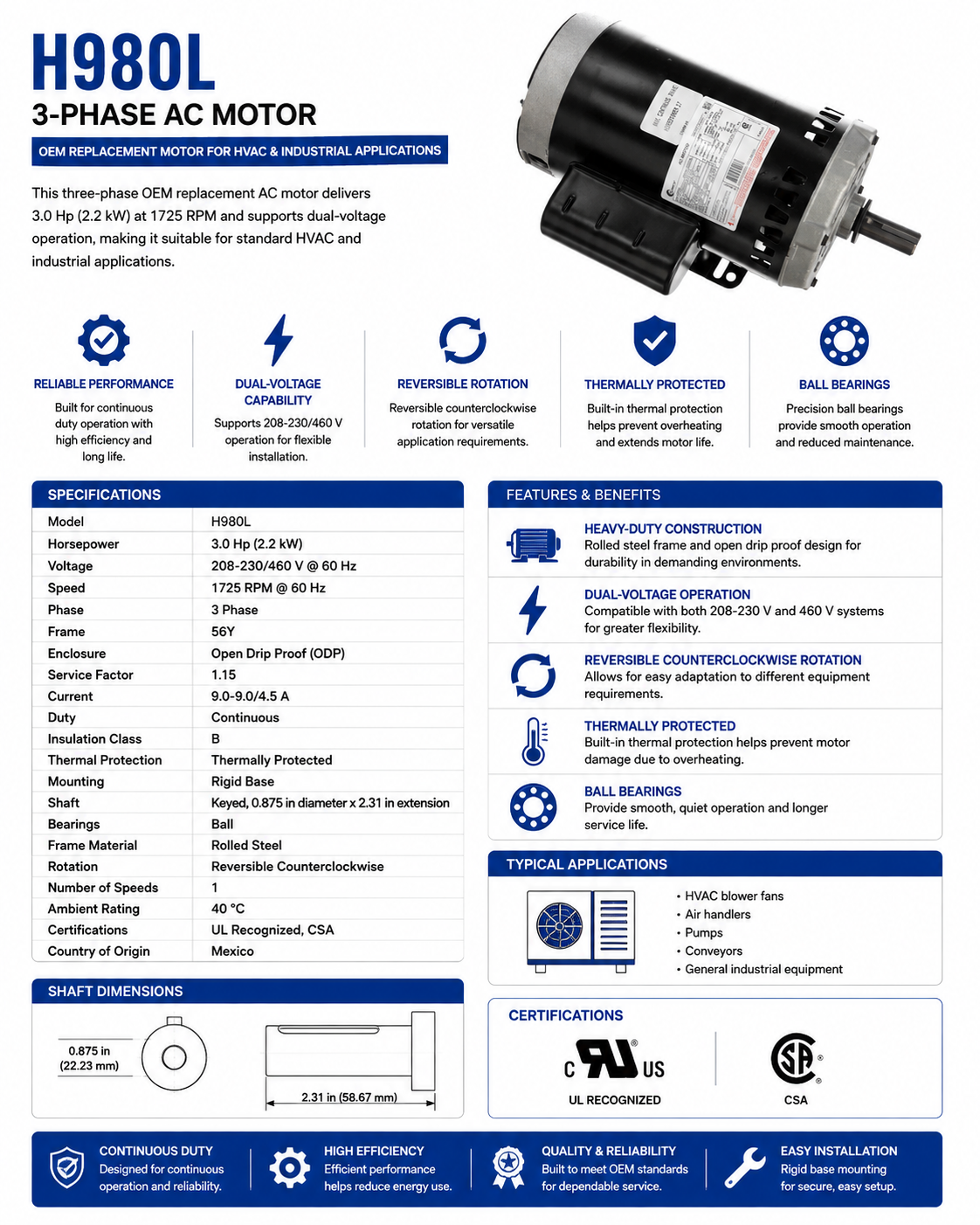

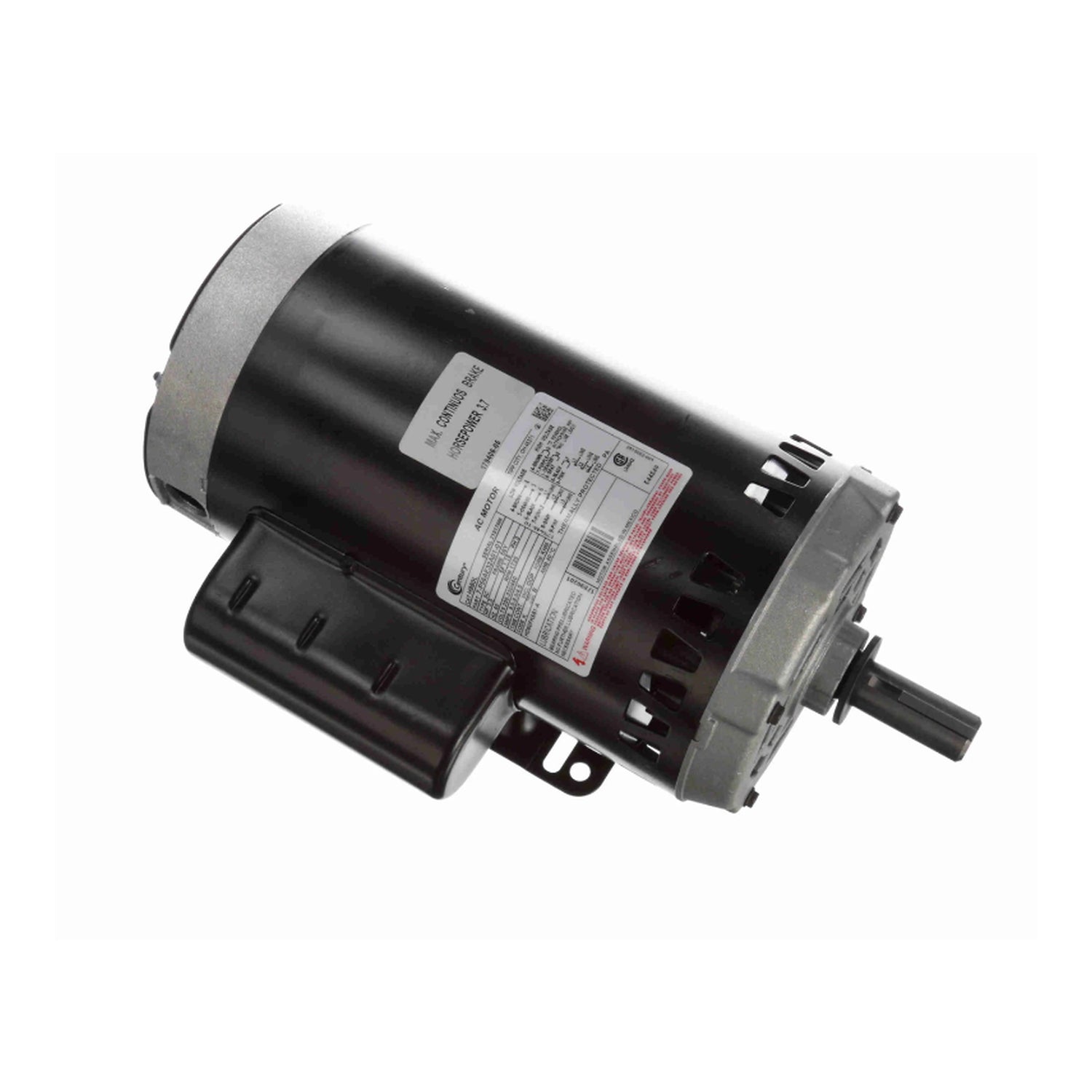

H980L, 3.0Hp (2.2 kW), 1725 RPM, 208‑230/460 V, 3 Ph, 60 Hz, Open Drip Proof, Frame 56Y

This three-phase OEM replacement AC motor delivers 3.0 Hp (2.2 kW) at 1725 RPM and supports dual-voltage operation, making it suitable for standard HVAC and industrial applications.

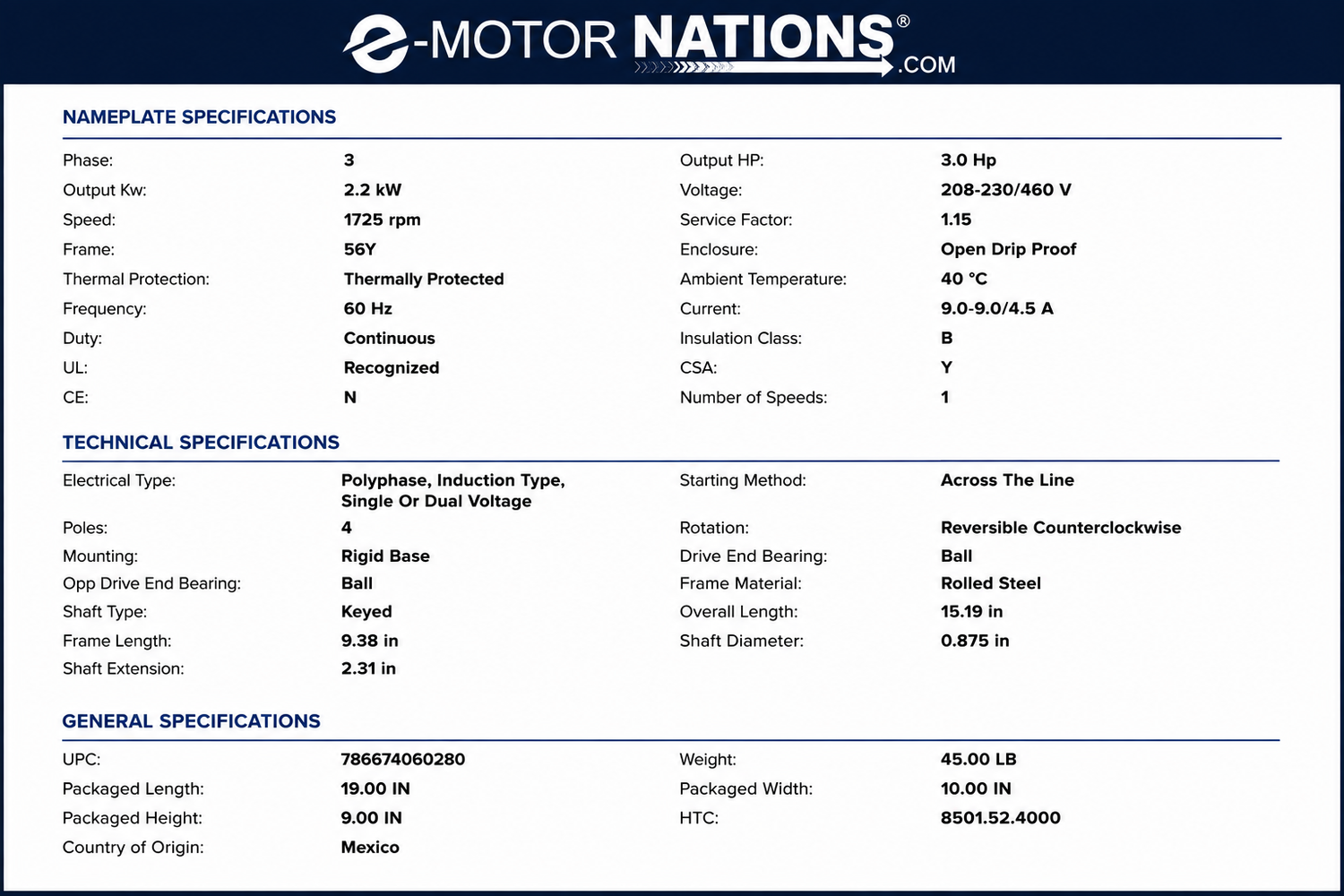

KEY FEATURES

• Model: H980L

• Horsepower: 3.0 Hp (2.2 kW)

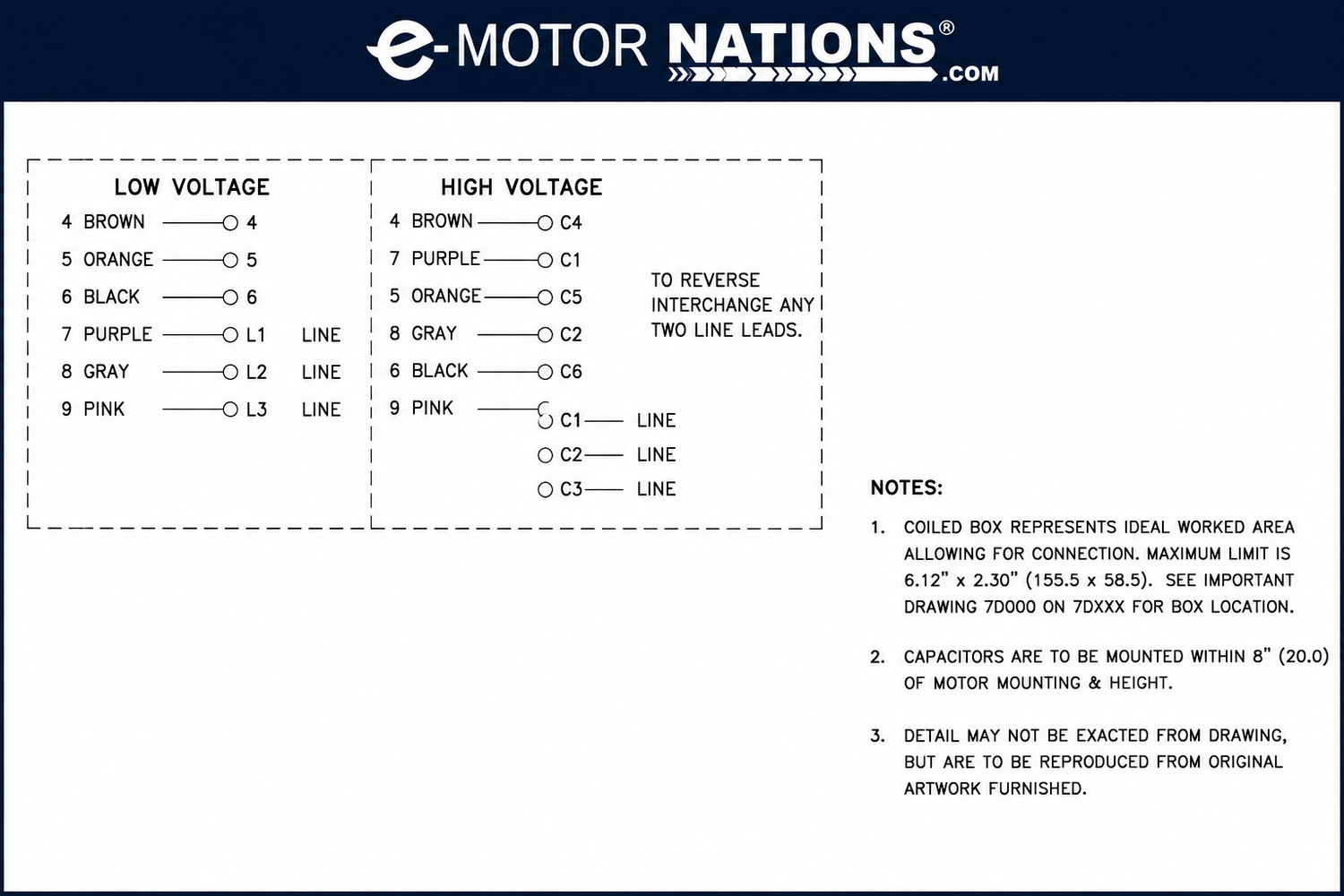

• Voltage: 208‑230/460 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Phase: 3 Phase

• Frame: 56Y

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.15

• Current: 9.0‑9.0/4.5 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Mounting: Rigid Base

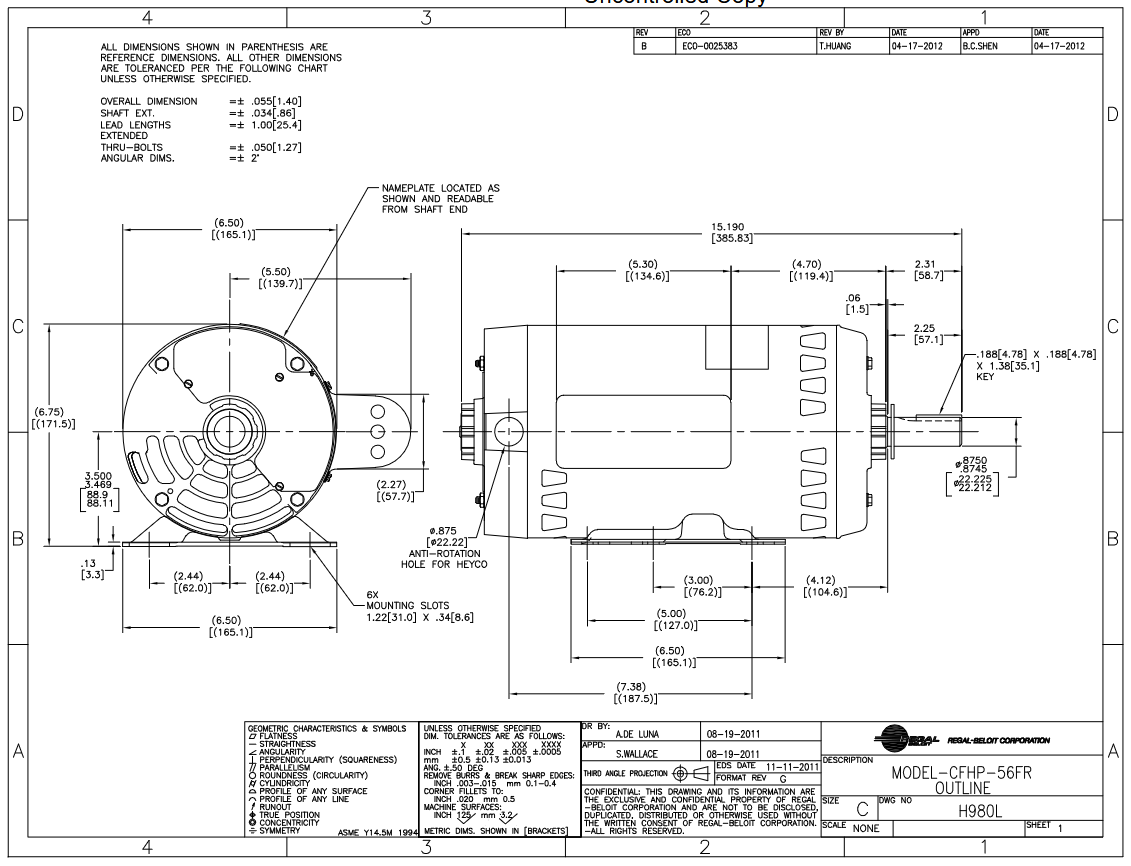

• Shaft: Keyed, 0.875 in diameter × 2.31 in extension

• Bearings: Ball

• Frame Material: Rolled Steel

• Rotation: Reversible Counterclockwise

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA

• Country of Origin: Mexico

This motor’s dual-voltage capability and robust construction make it a versatile choice for HVAC and industrial replacement needs.

CROSS REFERENCE

• 56T17D15624A
