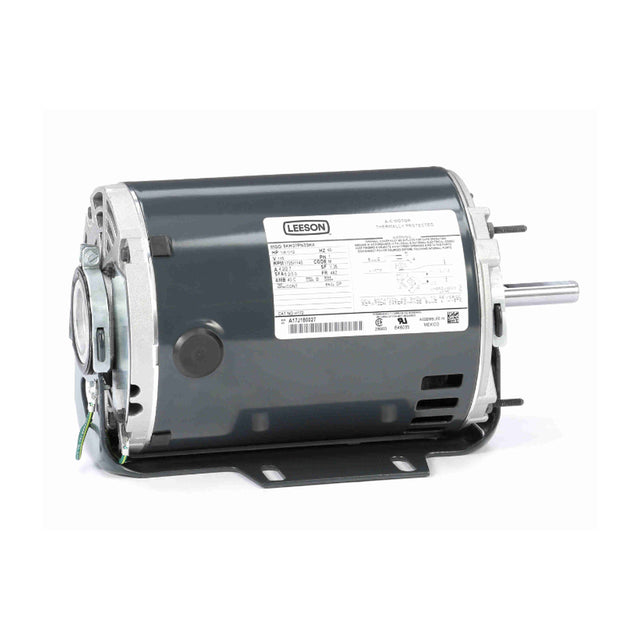

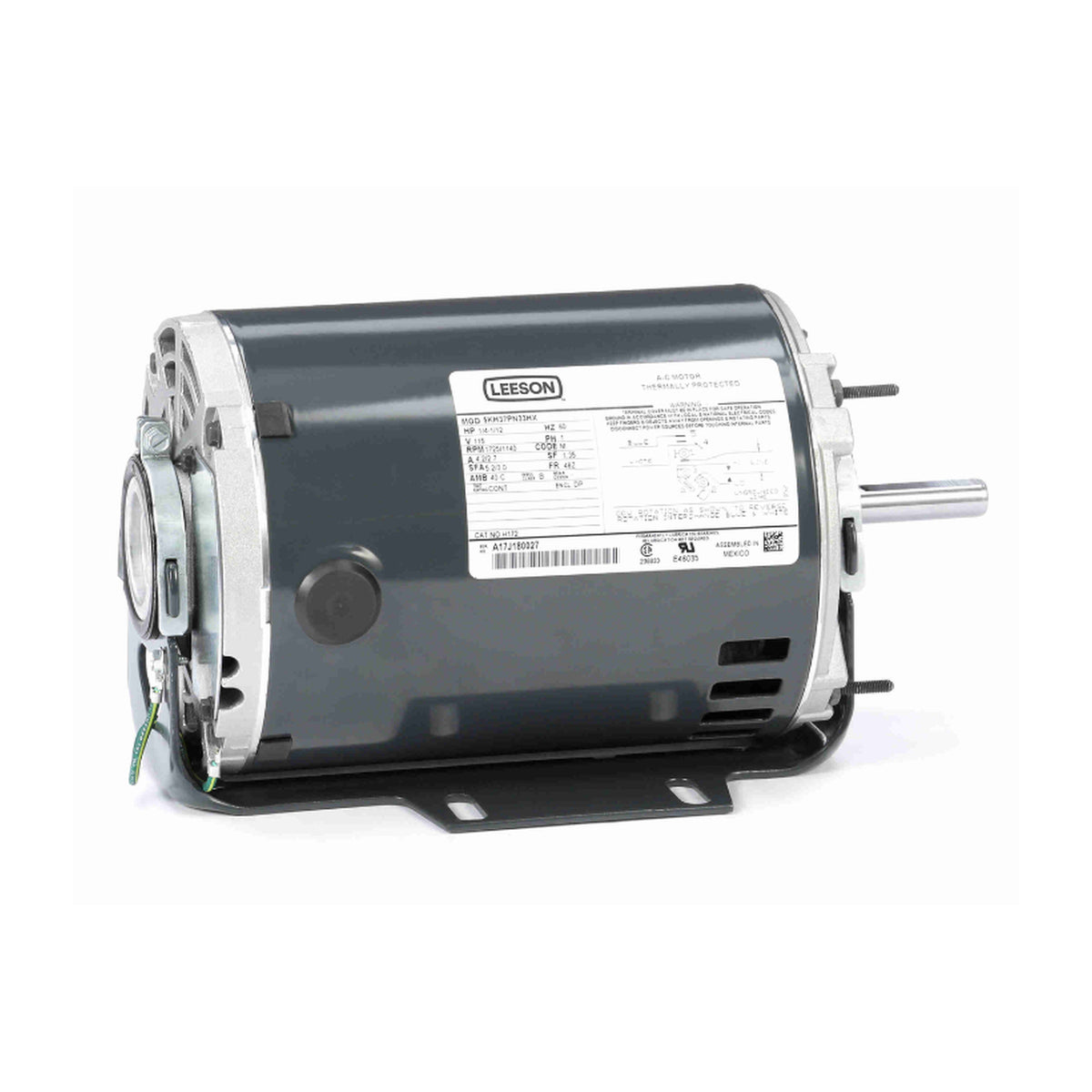

H172, 0.25/0.083Hp, 1725/1140 RPM, 115 V, 1 Ph, 60 Hz, Open Drip Proof (ODP), Frame 48Z, 5KH37PN33X

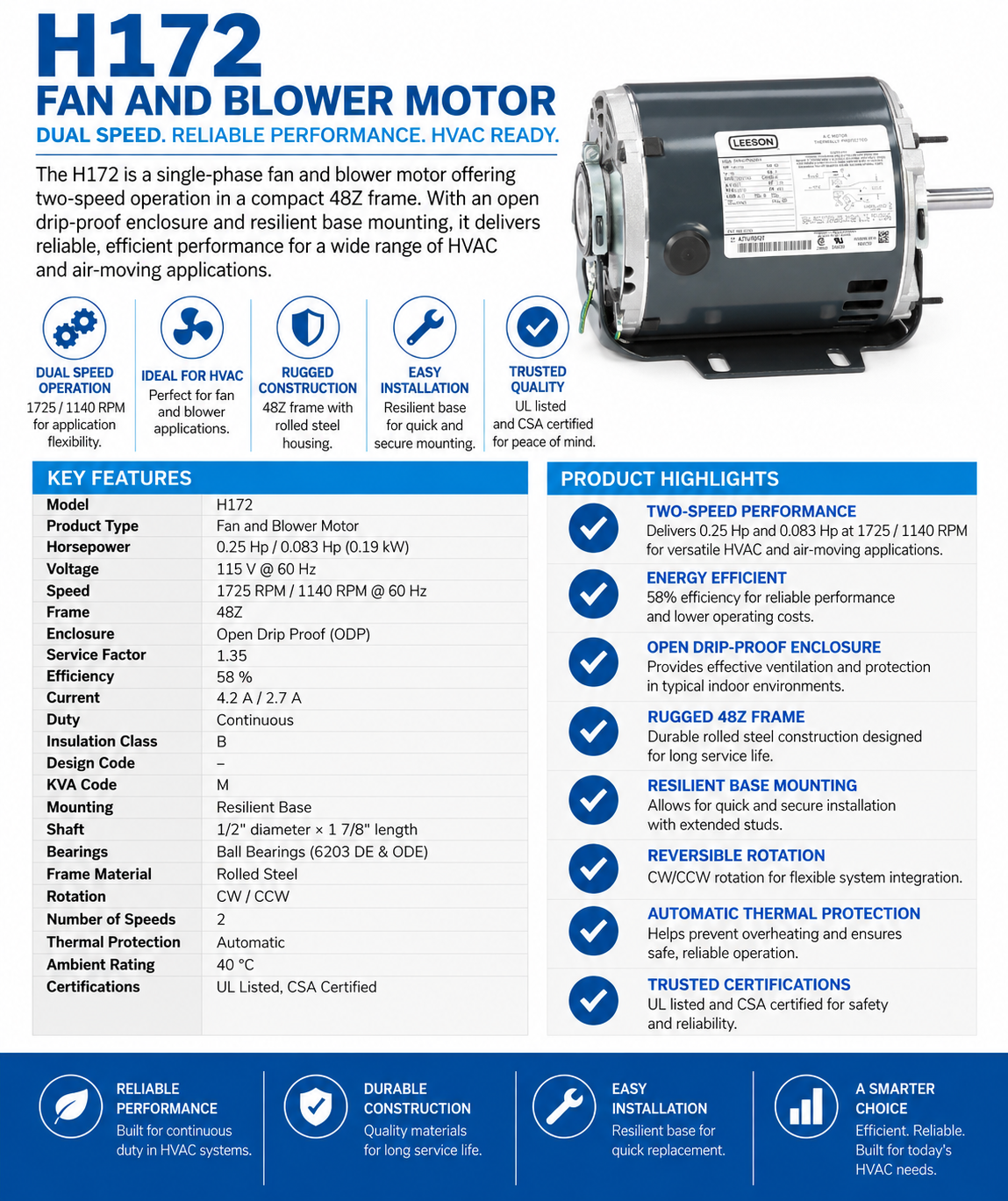

This single-phase fan and blower motor offers two-speed operation in a compact 48Z frame, delivering between 0.083 and 0.25 horsepower at 115 V and 60 Hz. Its open drip-proof enclosure and resilient base mounting make it suitable for HVAC and air-moving applications.

KEY FEATURES

• Model: H172

• Product Type: Fan and Blower Motor

• Horsepower: 0.25 Hp / 0.083 Hp (0.19 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1725 RPM / 1140 RPM @ 60 Hz

• Frame: 48Z

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.35

• Efficiency: 58 %

• Current: 4.2 A / 2.7 A

• Duty: Continuous

• Insulation Class: B

• Design Code: –

• KVA Code: M

• Mounting: Resilient Base

• Shaft: 1/2" diameter × 1 7/8" length

• Bearings: Ball Bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: CW / CCW

• Thermal Protection: Automatic

• Ambient Rating: 40 °C

• Certifications: UL Listed, CSA Certified

The motor’s compact dual-speed capability and resilient base design make it ideal for versatile HVAC and blower applications.
